lp-505 Rev. 000 Rel. 015 Date 1.7.20
17

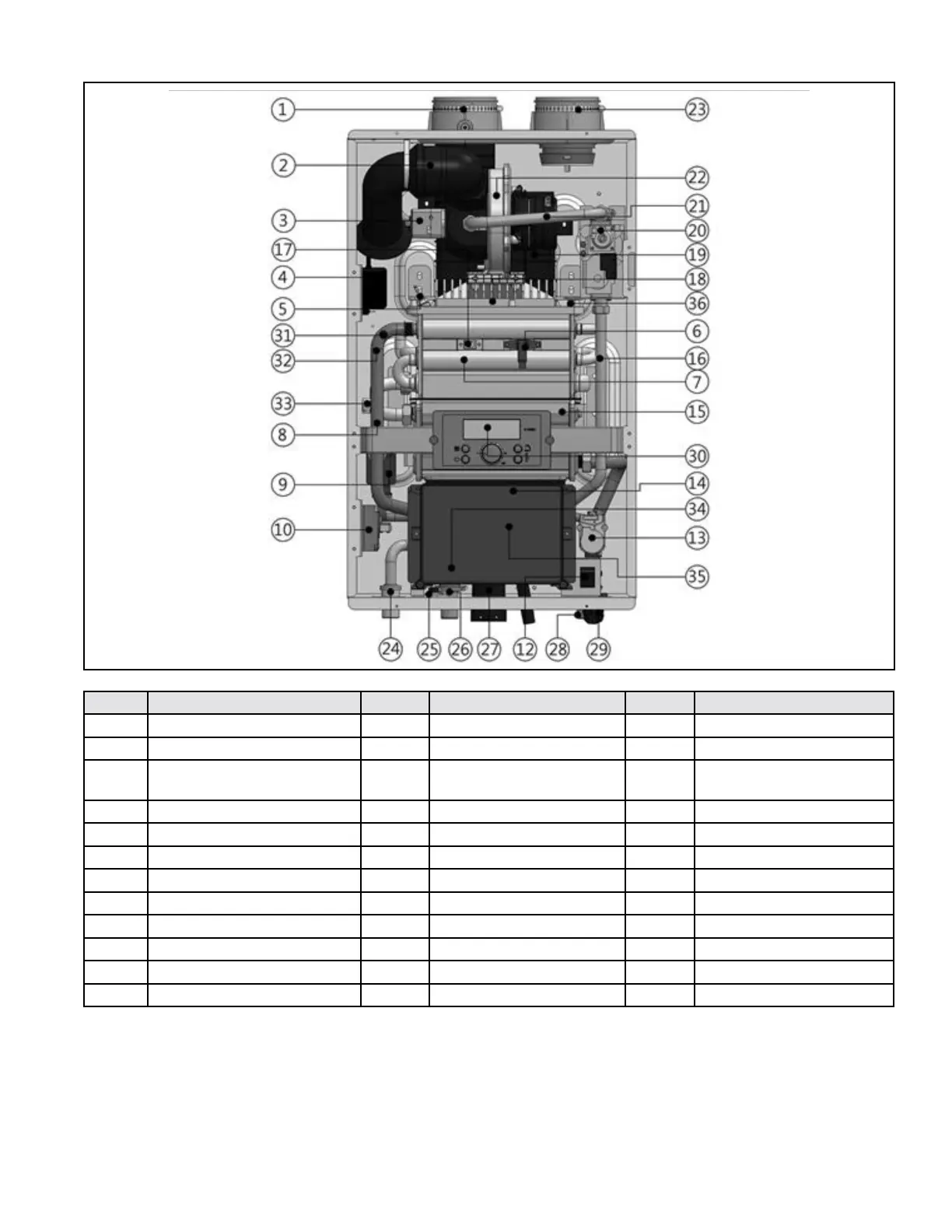

Figure 5 - 199 Model Components
Number Component Description Number Component Description Number Component Description
1 Exhaust Vent Adapter 13 Water Adjustment Valve 25 Freeze Protector
2 Air Inlet Pipe 14 Main Controller 26 DHW Outlet Adapter
3 AGM (Air Gas Mixer) 15
Secondary Heat Exchanger
Assembly
27 Condensate Trap
4 Ignition Transformer 16 Gas Inlet Pipe 1 28 Cold Water Inlet Adapter
5 Igniter 17 Flame Sight Glass 29 Cold Water Inlet Filter
6 Flame Detection Sensor 18 Burner Case 30 Control Panel
7 Primary Heat Exchanger Assembly 19 Exhaust Duct 31 Operating Temperature Sensor
8 Hot Water Outlet 20 Gas Valve 32 High Limit Overheat Switch
9 Mixing Valve 21 Gas Inlet Pipe 2 33 Ceramic Heater
10 Air Pressure Switch 22 BLDC Fan 34 DHW Sensor
11 N/A 23 Air Intake Pipe Adapter 35 Condensate Trap Hose
12 Manual Power Switch 24 Gas Inlet Adapter 36 Burner Overheat Switch
Table 12 - 199 Model Component List
