HTP Hydra Smart Series - Part 13 - Replacement Parts; Cabinet Replacement Parts; Cabinet Bottom Replacement Parts

lp-505 Rev. 000 Rel. 015 Date 1.7.20
65
Part 13 - Replacement Parts
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
1 Exhaust Assembly 7850P-117 11 Power Cord 7850P-123
2 Exhaust and Intake Packing 7850P-118 12 Air Pressure Switch 7850P-047
3 Air Intake Assembly 7850P-119 13 Gas Inlet Connection 7850P-043
4 Water Inlet Valve Assembly 7850P-018 14 Control Board Bracket 7850P-124
4-1 Cold Water Temperature Sensor 7850P-015 15 PCB (Control Board) 7850P-125
4-2 Water Inlet Filter Cap 7850P-016 16 Power Switch 7850P-059
4-3 Cold Water Filter 7850P-017 17 Control Panel 7850P-057
5 Bracket (Igniter, Air Pressure Switch) 7850P-214 18 Front Cover Assembly 7850P-025
6 Hot Water Pipe Assembly 7850P-121 18-1 Control Panel Window 7850P-023
6-1 Hot Water Plug 7850P-202 19 Case Bracket 7850P-127
6-2 Hot Water Temperature Sensor 7850P-019 20 Flow Control Valve 7850P-053
7 Igniter 7850P-045 21 Case 7850P-130
8 Condensate Trap 7850P-014 22 Air Intake Filter 7850P-120
9 Siphon Air Pressure Hose 7850P-122 Wire Harness (Not Shown) 7850P-173
10 Water Leak Detector 7850P-215
Table 40 - 150 Model Cabinet Replacement Parts

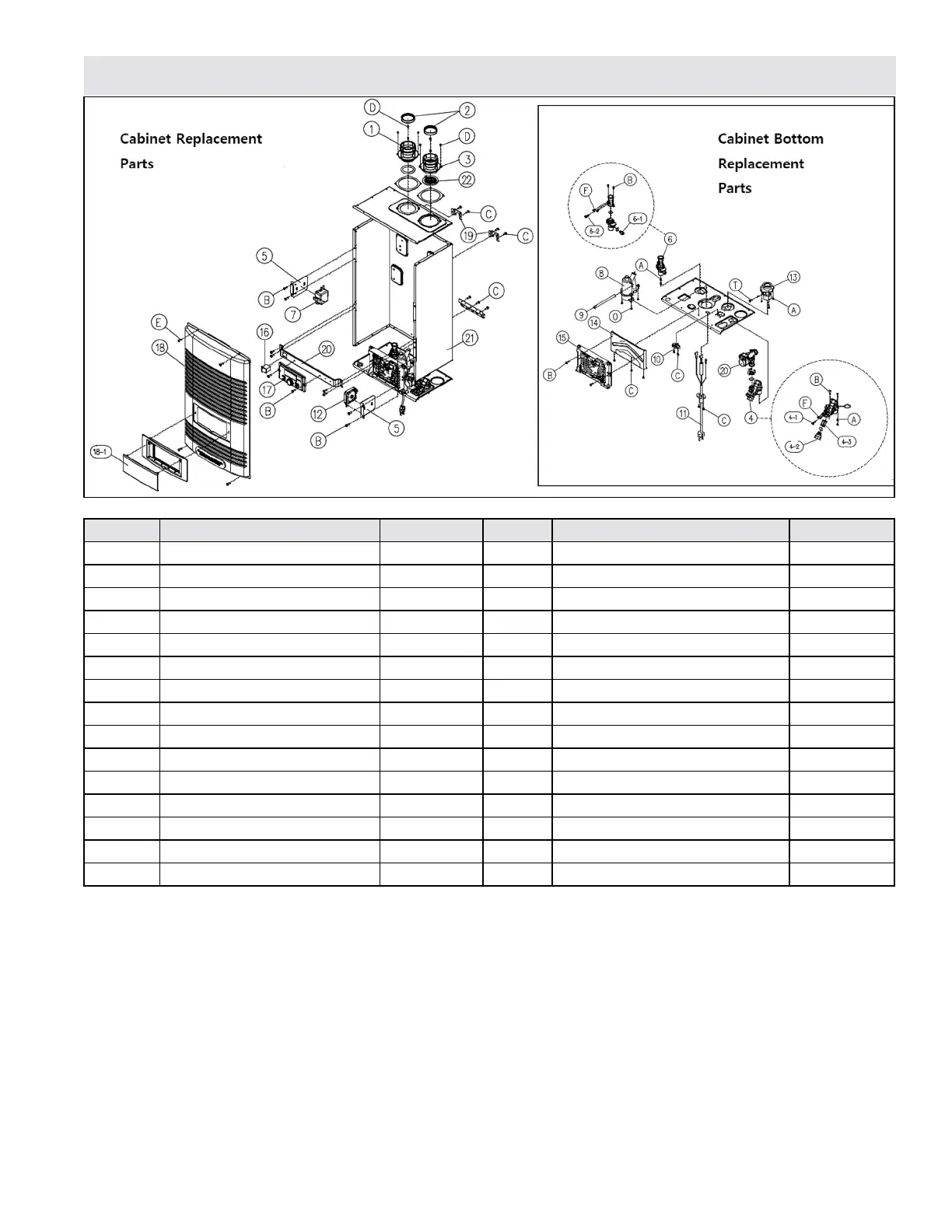

Figure 60 - 150 Model Cabinet Replacement Parts
