HTP Hydra Smart Series - Error Tree Analysis; Flame Detection; Air Pressure Switch Detection

lp-505 Rev. 000 Rel. 015 Date 1.7.20
56
B. Error Tree Analysis
1. Flame Detection

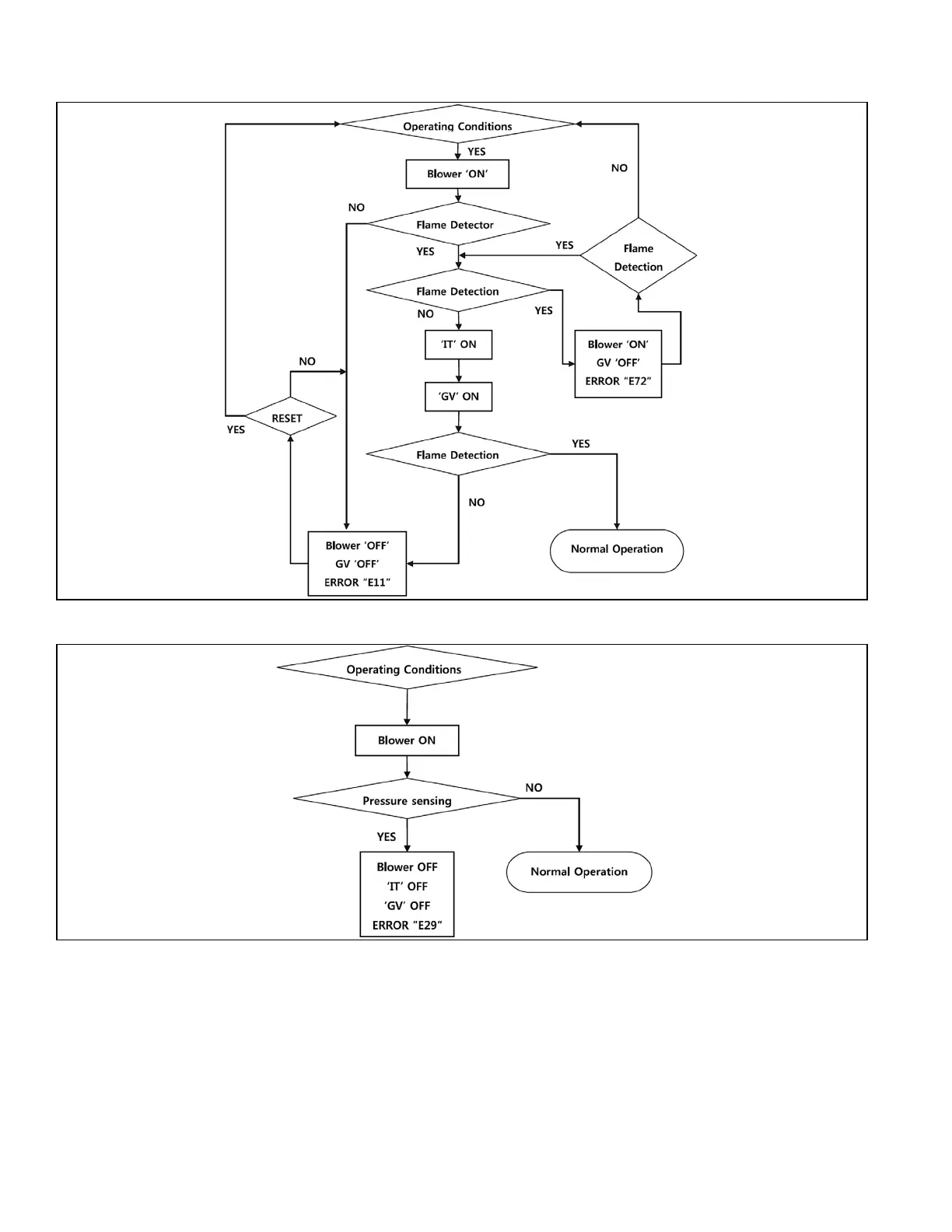

Figure 53 - Flame Detection Error Analysis Tree
2. Air Pressure Switch Detection
Figure 54 - Air Pressure Switch Analysis Tree
