HTP PHE130-55 - Page 54

54

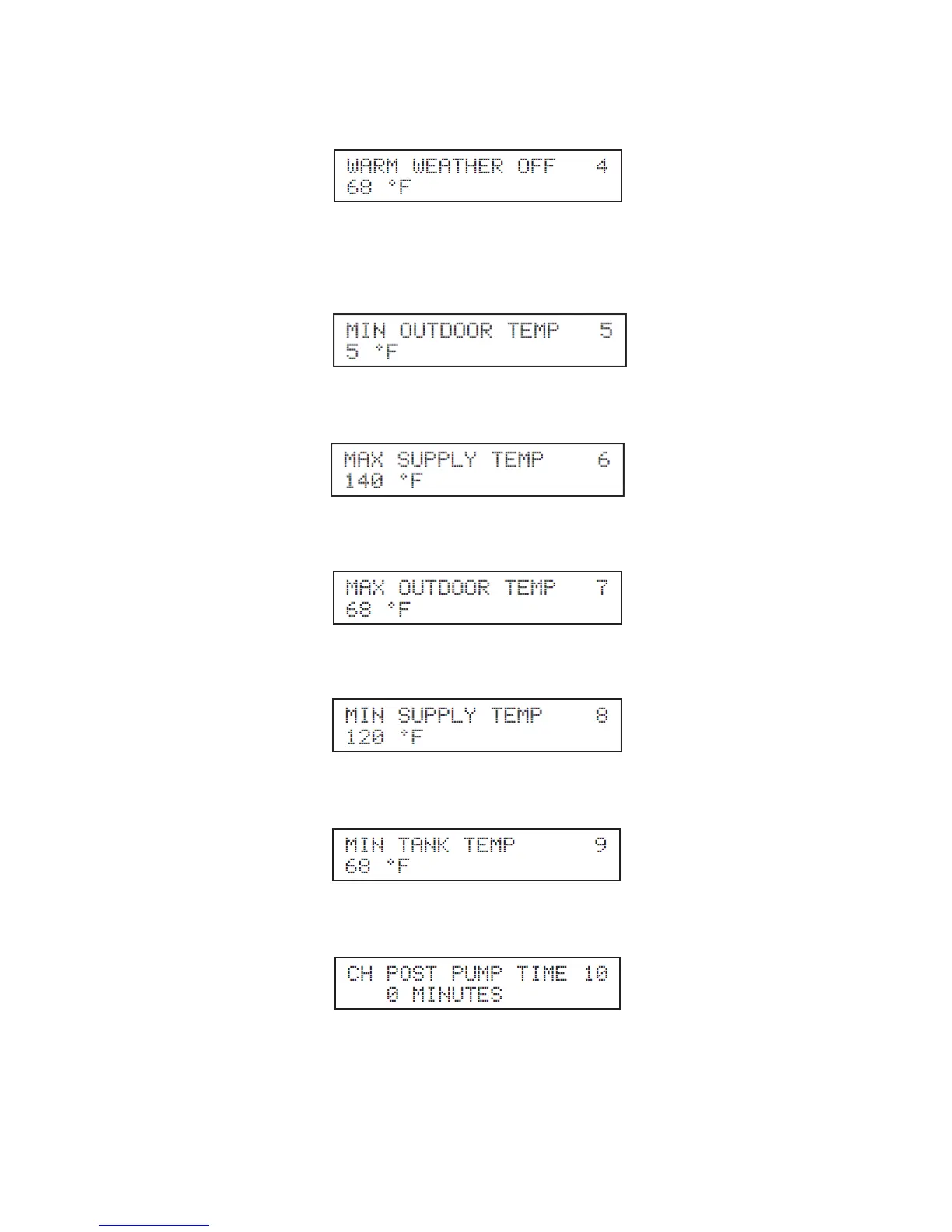

Function 4 Warm Weather Shutoff
Description: Warm Weather Shutoff disables the heating module and the Total System Control will then
optimize for domestic hot water only. Warm Weather Shutoff will occur if the programmed outdoor
temperature is exceeded by the current outdoor sensor temperature. Factory default 68
o
F (Range 41
o
F to
122
o
F).
Function 5 Min Outdoor Temp
Description: Allows the user to set the minimum outdoor design temperature for the system. Factory
default 5
o
F (Range -49
o
F to 122
o
F).
Function 6 Max Supply Temp
Description: Allows the user to set the maximum design supply temperature based on the minimum
outdoor design temperature. Factory default 140
o
F (Range 77
o
F to 170
o
F).
Function 7 Max Outdoor Temp
Description: Allows the user to set the maximum outdoor design temperature for the system. Factory
default 68
o
F (Range 32
o
F to 95
o
F).
Function 8 Min Supply Temp
Description: Allows the user to set the design supply water temperature based on the maximum outdoor
design temperature. Factory default 120
o
F (Range 32
o
F to 200
o
F).
Function 9 Min Tank Temp
Description: Allows the user to set the minimum tank temperature. Factory default 68
o
F (Range 32
o
F to
200
o
F).
Function 10 CH Post Pump Time
Description: Allows the user to set the central heating pump post purge time once the thermostat is
satisfied. Factory default 0
minutes (Range 0 to 10 minutes).
