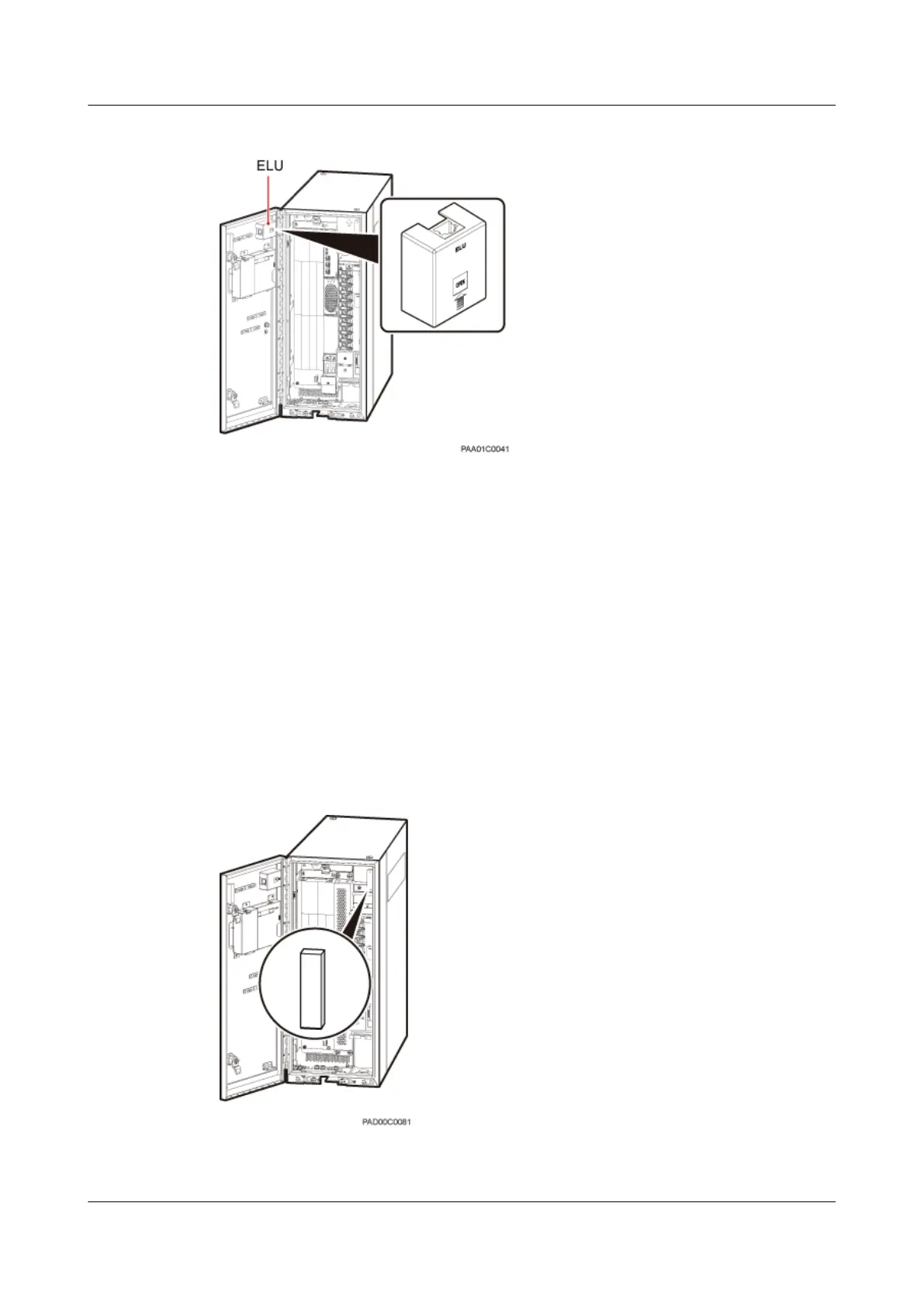

Figure 6-2 ELU
6.3 BTS3900C Sensors
The BTS3900C sensors consist of the door status sensor and temperature sensor.
6.3.1 Door Status Sensor
The door status sensor, on the cabinet door, monitors whether the cabinet door is open.
Exterior
Figure 6-3 shows a door status sensor.
Figure 6-3 Door status sensor
BTS3900C (Ver.C)
Hardware Description 6 BTS3900C Components
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
118
