Huawei BTS3900C User Manual

Table 7-21 AC input power cable for the BTS3900C
Cable Wire Color Size of the OT
Terminal and
Cross-Sectional
Area of the Cable
220 V AC single-
phase power cable
L wire Brown
M4, 4 mm
2
(0.0062
in.
2
)
N wire Blue
PE wire Green and yellow
110 V AC dual-live-
wire
L1 wire Brown
M4, 4 mm
2
(0.0062
in.
2
)
L2 wire Blue
PE wire Green and yellow
7.5.3 ETP48100-A1 Power Cable
The ETP48100-A1 power cable feeds AC power into the ETP48100-A1.
Exterior
Figure 7-20 shows an ETP48100-A1 power cable.

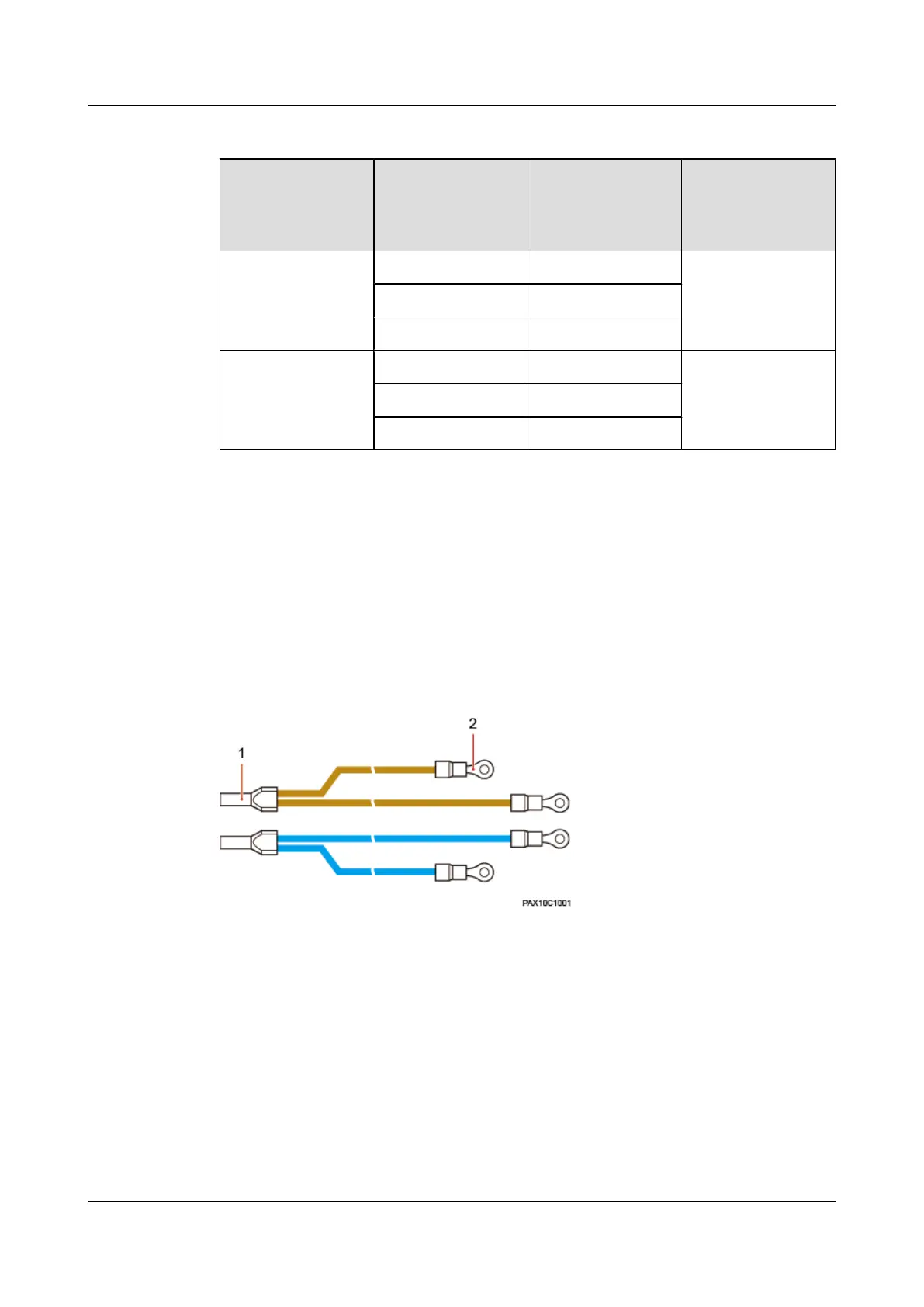

Figure 7-20 ETP48100-A1 power cable
(1) Cord end terminal
(2) OT terminal (M4, 4 mm
2
or 0.0062 in.
2
)
7.5.4 PDU10D-01 Power Cable
The PDU10D-01 power cable feeds -48 V DC power into the PDU10D-01.
Exterior
Figure 7-21 shows a PDU10D-01 power cable.
BTS3900C (Ver.C)
Hardware Description 7 BTS3900C Cables
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
149
