Huawei BTS3900C User Manual

X1 End (Pin of the
Waterproof DB9
Male Connector)
X2 End (Pin of the
Standard AISG
Female Connector)
Color Type Description
- X2.4 and X2.7 are
interconnected.
- - GND
7.11 RRU AISG Extension Cable
When the distance between an RRU and an RCU is longer than 5 m (16.4 ft.), an AISG multi-
core cable cannot connect the RRU and the RCU because it is not long enough. In this case, an
AISG extension cable is used to extend the AISG multi-core cable for transmitting RS485
signals.
Exterior
An AISG extension cable has a standard AISG male connector at one end and a standard AISG
female connector at the other end, as shown in Figure 7-50.

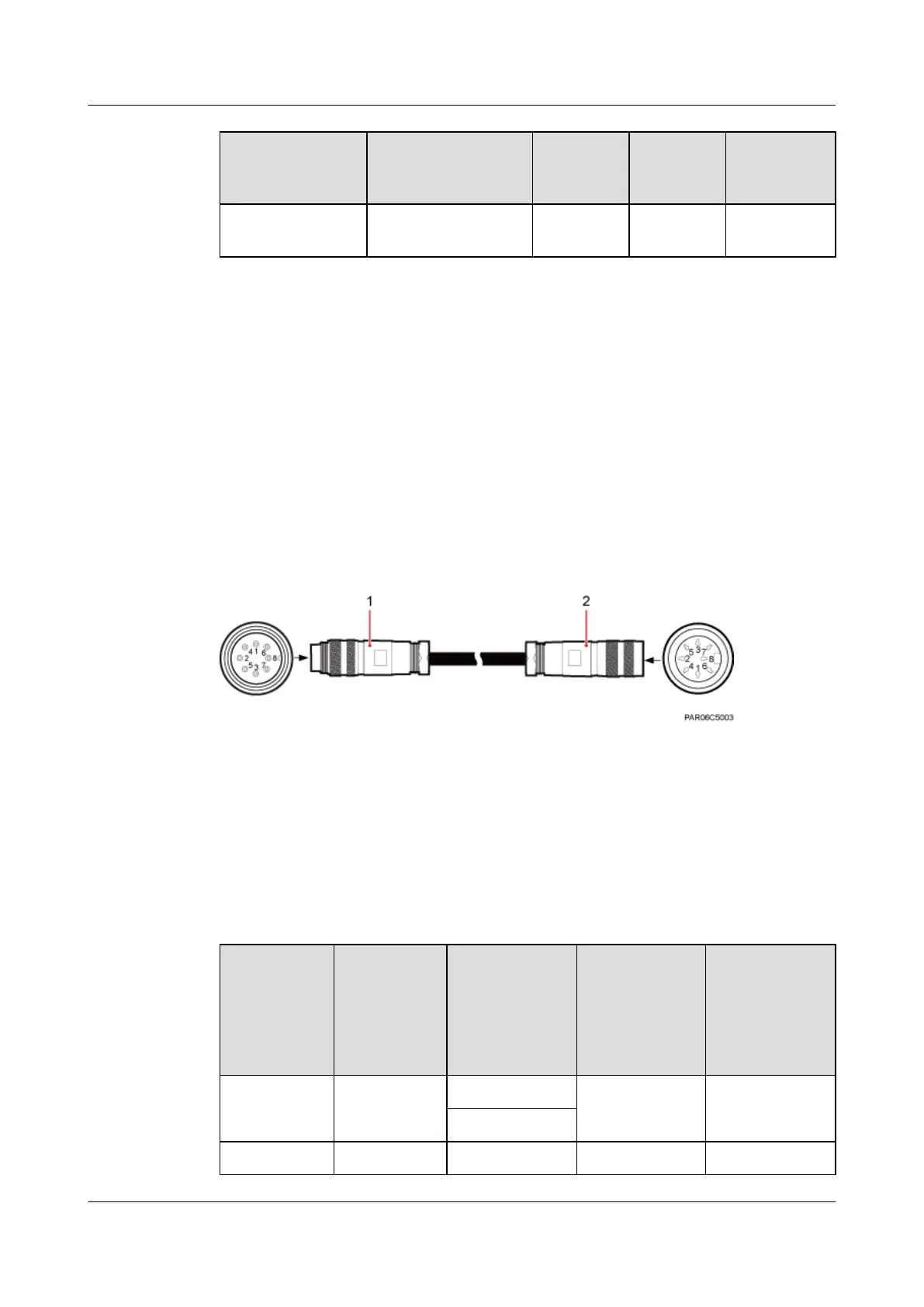

Figure 7-50 AISG extension cable
(1) Standard AISG male connector
(2) Standard AISG female connector
Pin Assignment
Table 7-43 describes the pin assignment for the wires of an AISG extension cable.
Table 7-43 Pin assignment for the wires of an AISG extension cable
X1 End (Pin
of the
Standard
AISG Male
Connector)
X2 End (Pin
of the
Standard
AISG
Female
Connector)
Color Type Description
X1.1 X2.1 White and blue Twisted pair +12 V
Blue
X1.7 X2.7 White and orange Twisted pair DC Return A
BTS3900C (Ver.C)
Hardware Description 7 BTS3900C Cables
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
174
