Exterior
Figure 7-24 shows an RRU power cable.
NOTE
The RRU power cable has a tool-less female connector (pressfit type) at one end connected the power equipment,
and the tool-less female connector (pressfit type) needs to be added to the power cable onsite. The connector at
the other end of the power cable depends on the RRU type.

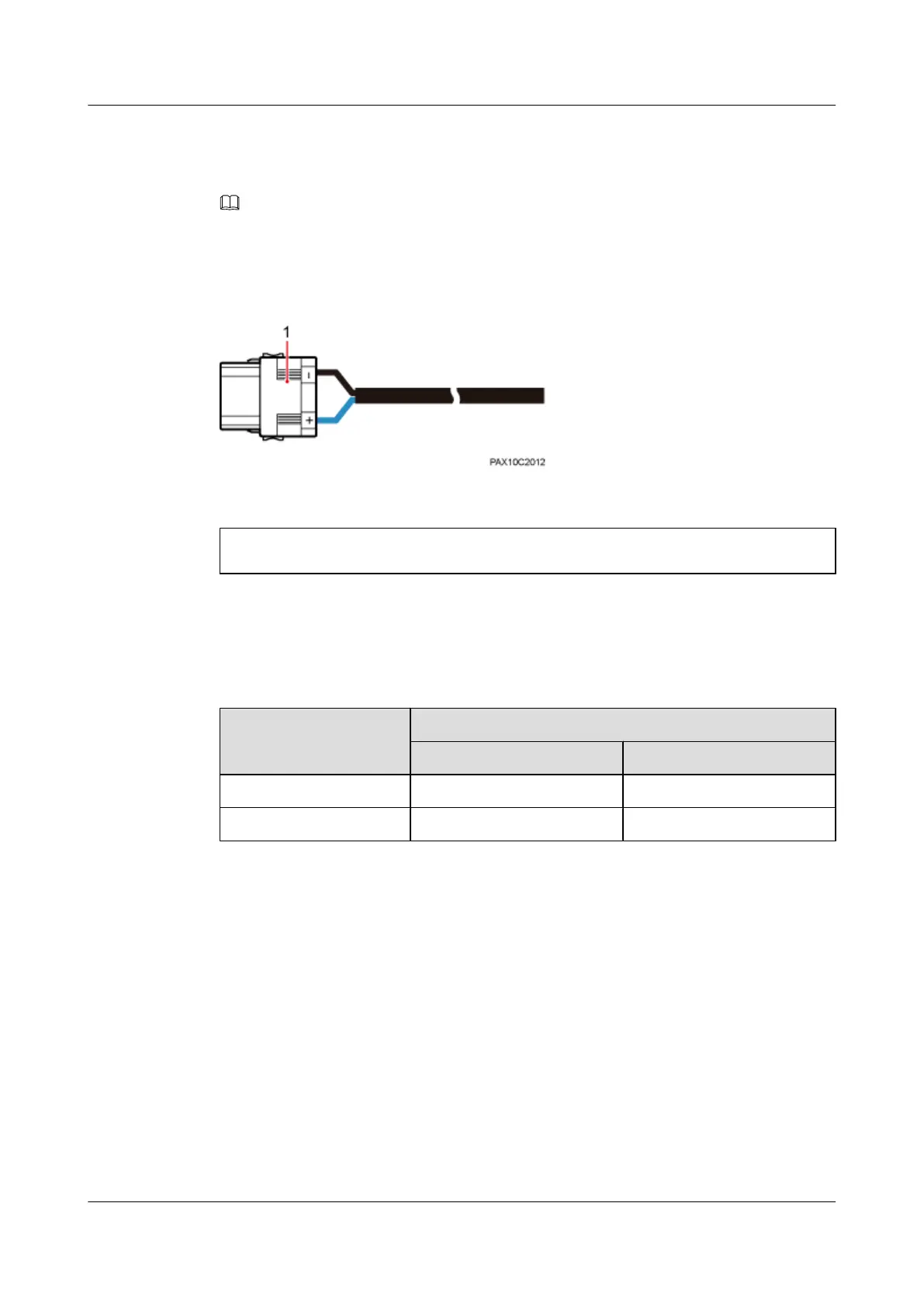

Figure 7-24 RRU power cable
(1)Tool-less female connector (pressfit type)
Cable Description
Table 7-25 lists the specifications of an RRU power cable.
Table 7-25 Specifications of an RRU power cable
Wire
Color
North American Standard European Standard
NEG(-) Blue Blue
RTN(+) Black Brown
7.6 BTS3900C Transmission Cables
This chapter describes all the transmission cables used in a BTS3900C, including the exteriors,
functions, and pin assignments of the transmission cables.
7.6.1 E1/T1 Cable
An E1/T1 cable transmits baseband signals from BBU to the external transmission equipment.
The maximum length of a E1/T1 cable is 50 m (164.04 ft).
Exterior
The E1/T1 cable is of three types: 75-ohm E1 coaxial cable, 120-ohm E1 twisted pair cable, and
100-ohm T1 twisted pair cable.
BTS3900C (Ver.C)
Hardware Description 7 BTS3900C Cables
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
152
