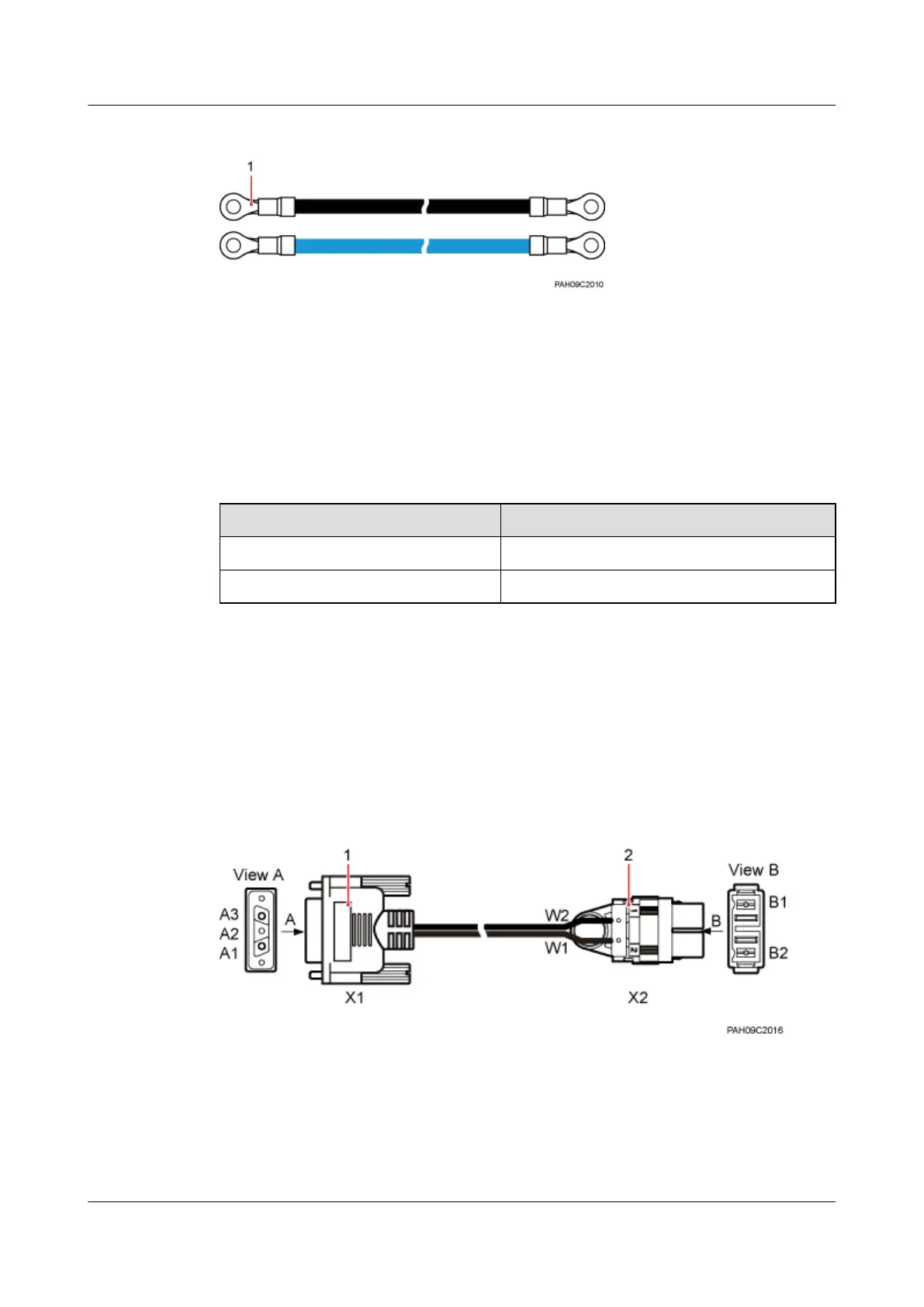

Figure 7-21 PDU10D-01 power cable
(1) OT terminal (M6, 16 mm
2
or 0.025 in.
2
)
Cable Description
Table 7-22 describes a PDU10D-01 power cable.
Table 7-22 PDU10D-01 power cable
Wire Color
NEG(-) Blue
RTN(+) Black
7.5.5 BBU Power Cable
The BBU power cable feeds -48 V DC power into a BBU.
Exterior
Figure 7-22 shows a BBU power cable.
Figure 7-22 BBU power cable
(1) 3V3 connector
(2) EPC4 or EPC6 connector
Cable Description
A BBU power cable consists of two wires. Table 7-23 describes the pin assignment for the wires
of a BBU power cable.
BTS3900C (Ver.C)
Hardware Description 7 BTS3900C Cables
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
150
