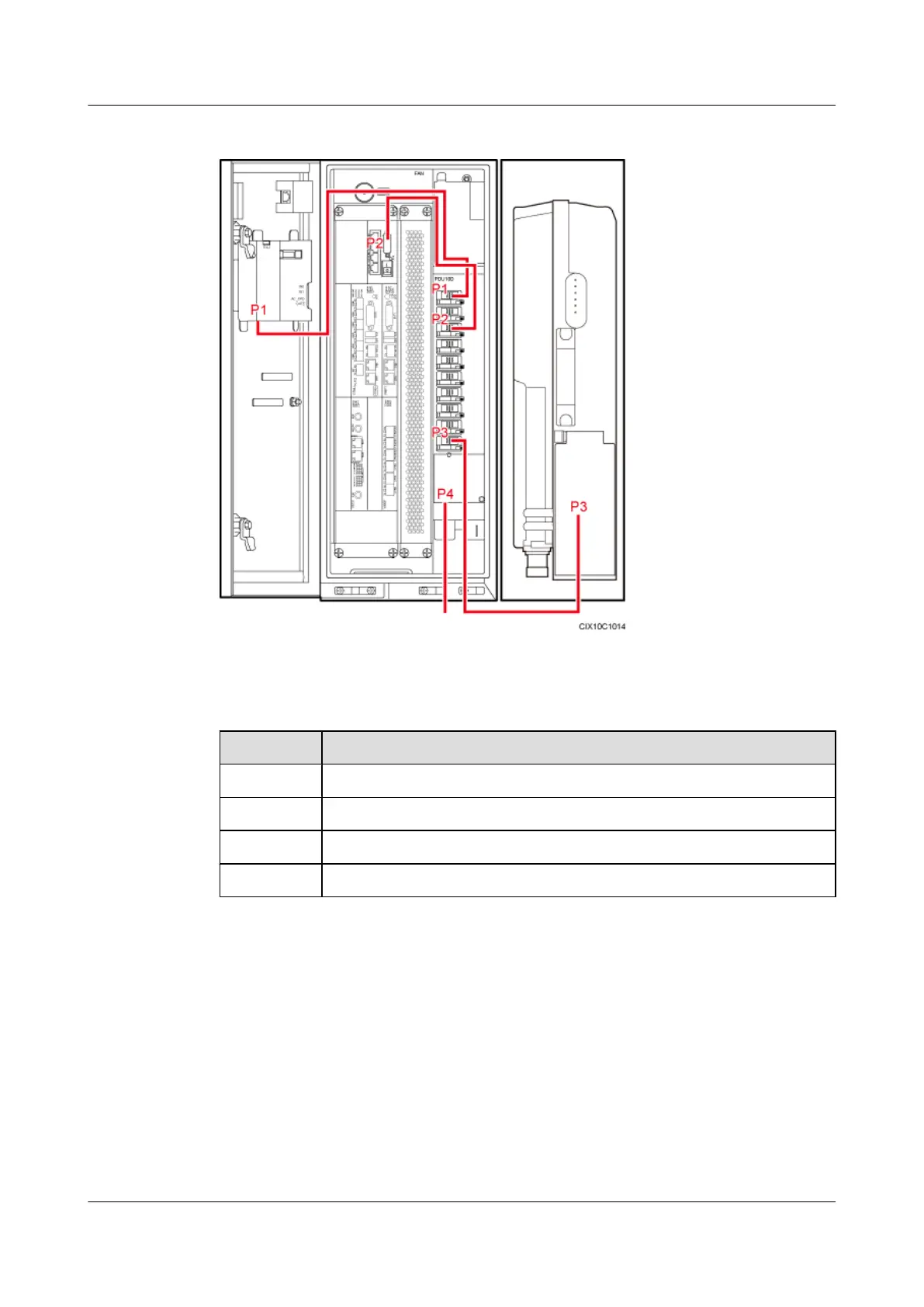

Figure 7-5 Power cable connections for a BTS3900C DC cabinet
Table 7-13 Power cables in a BTS3900C DC cabinet
Cable No.
Cable Description
P1 7.5.6 HEUB Power Cable
P2 7.5.5 BBU Power Cable
P3 7.5.7 RRU Power Cable
P4 7.5.1 DC Input Power Cable
7.3.2 Transmission Cable Connections
This chapter describes the transmission cable connections of the BTS3900C in different modes.
Transmission Cable Connections in a Single-Mode Base Station
In GSM only, UMTS only, or LTE only mode, use the E1/T1 cable, FE/GE cable, or optical
cable to transmit data. This section describes transmission cable connections for each mode.
