6.3.2 Temperature Sensor
The temperature sensor monitors the temperature in different positions in a cabinet and reports
the temperature to the HEUB.
Exterior

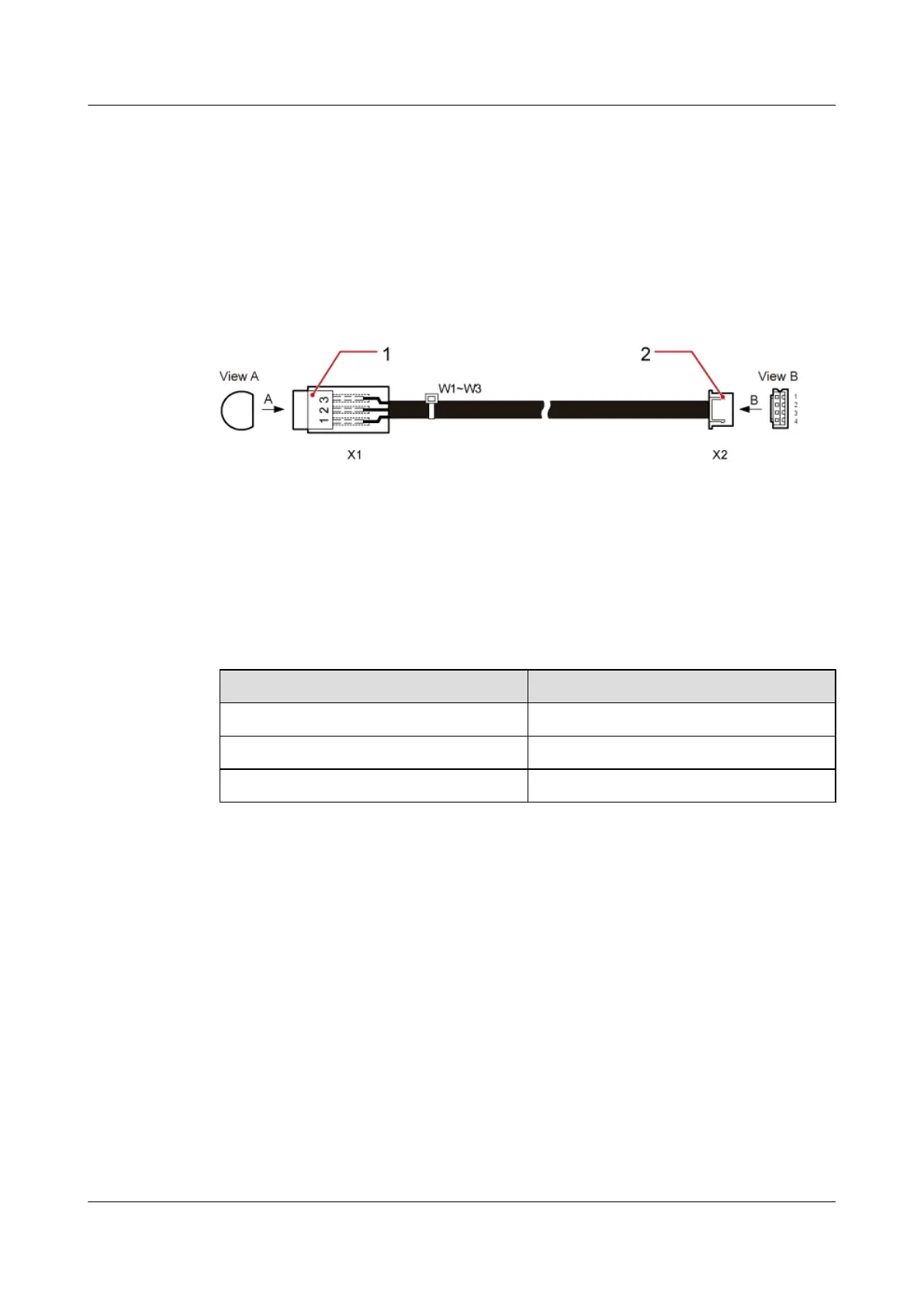

Figure 6-4 shows a temperature sensor.
Figure 6-4 Temperature sensor
(1) Temperature Sensor (2) 4-pin Connector
Specifications
Table 6-1 shows specifications of a temperature sensor.
Table 6-1 Specifications of a temperature sensor
Parameter
Specifications
Permissible voltage range 3.0 V DC to 5.5 V DC
Temperature measurement range -55°C to +125°C (-67°F to +257°F)
Temperature measurement error ±0.5°C (±32.9°F)
