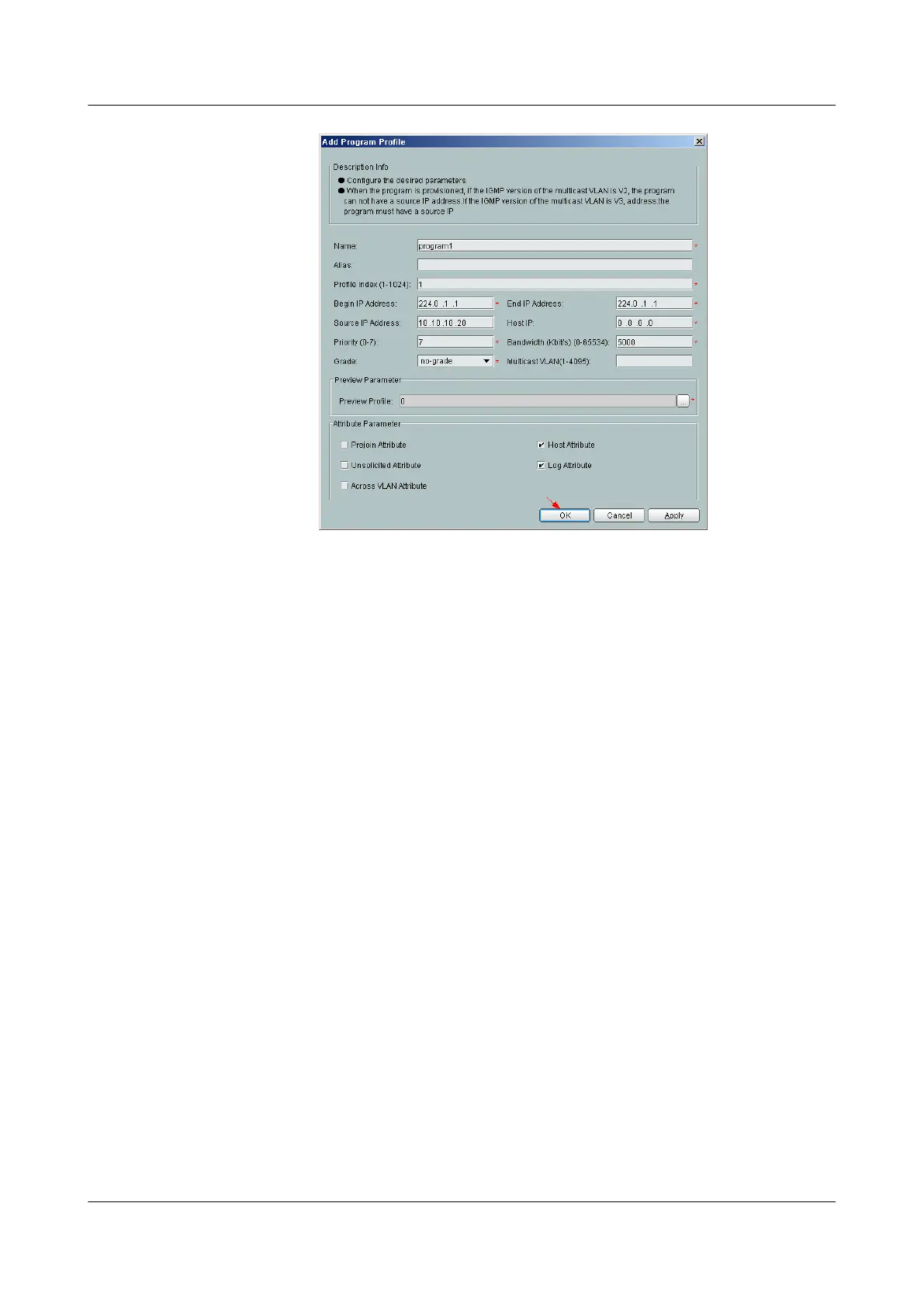

e. Click OK.
f. In the information list, right-click the record and choose Download to NE from
the shortcut menu.
g. In the dialog box that is displayed, select the required OLT and click Next. Then,
set VLAN ID to 1000.
h. Click OK.
6. Configure a multicast user on the OLT side.
To enable user authentication, select Enable Authorization. To add a rights profile
and apply it to NEs, choose Configuration > Access Profile Management > IGMP
Profile from the main menu and click the Right Profile tab.
a. Choose Multicast > Multicast User from the navigation tree.
b. In the information list, right-click and choose Add from the shortcut menu.
c. In the dialog box that is displayed, set the parameters.
– Alias: IGMPUserA
– Unlimited Band Width: selected
– Select Service Port: service virtual port named IGMP
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
123
