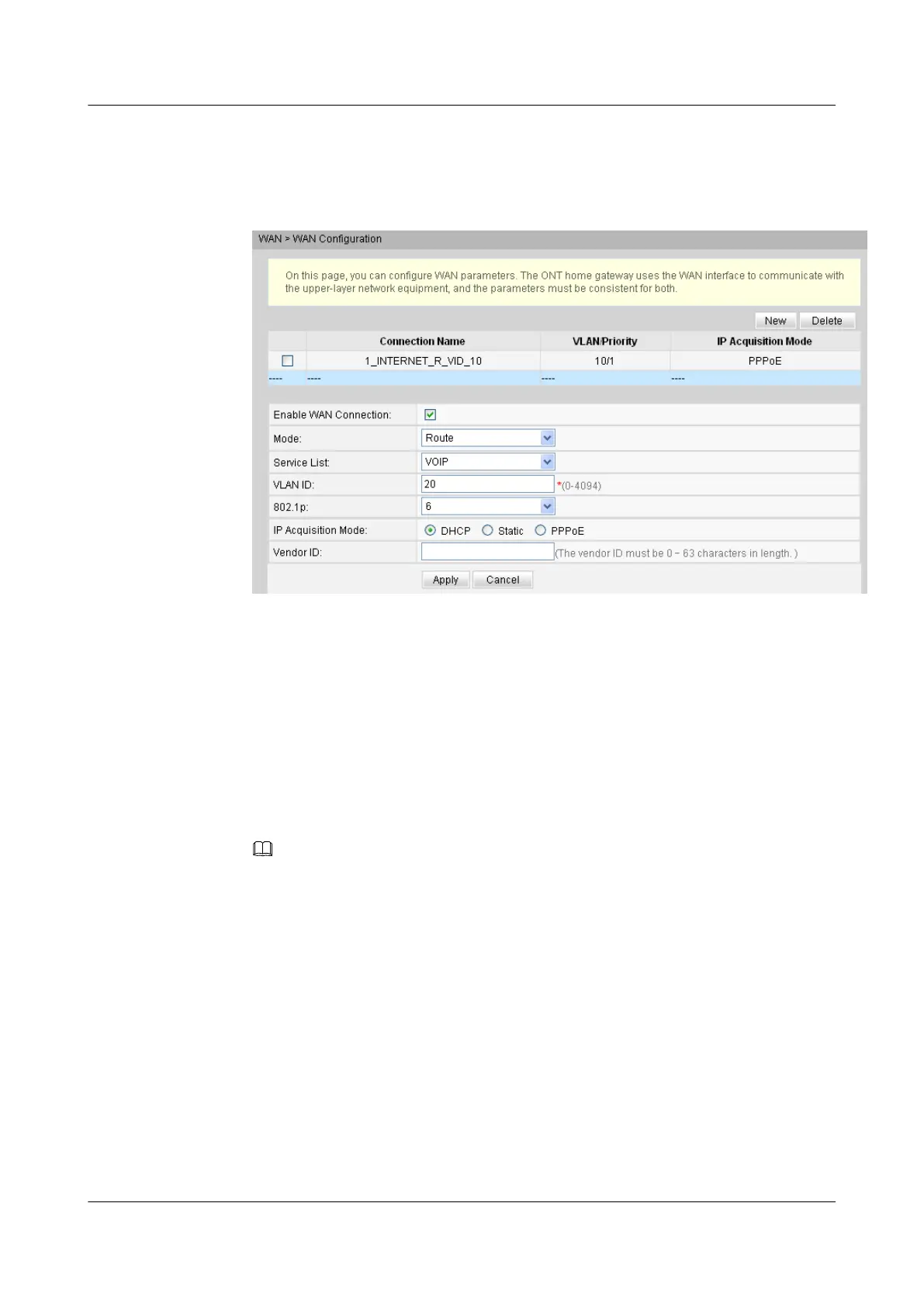

l VLAN ID: 20 (The VLAN ID of the ONT must be the same as the user-side VLAN ID
configured on the OLT.)
l 802.1p: 6
l IP Acquisition Mode: DHCP
3. Click Apply to apply the configuration.
Step 2 Configure parameters of the SIP-based voice interface.
1. In the navigation tree, choose Voice > VoIP Interface Configuration.
2. In the right pane, configure parameters of the SIP-based voice interface as follows (other
parameters use the default settings):
l Set Proxy Server Address below Primary Server to 200.200.200.200.
l Home Domain: softx3000.huawei.com
l Signaling Port: 1_VOIP_R_VID_20
l Region: CN – China
NOTE
l The parameters of the SIP-based voice interface must be consistent with the corresponding
configuration on the softswitch.
l If dual-homing is configured, Proxy Server Address below Secondary Server must be configured.
l If Signaling Port is empty, the parameter value is the same as Media Port. If the upper-layer network
requires isolation of media streams from signaling streams, create different traffic streams for the
media streams and signaling streams on the OLT, create different WAN ports on the ONT, and bind
the created WAN ports to Media Port and Signaling Port.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
221
