Port and Button Function
WLAN
Indicates the WLAN button, used for enabling or disabling the
WLAN function.
WPS Indicates the WLAN data encryption switch.
RESET
Indicates the reset button. Press the button for a short time to
reset the device; press the button for a long time (longer than
10s) to restore the device to the default settings and reset the
device.
Ports on the HG8447
Figure 2-17 and Figure 2-18 show the ports on the rear panel and side panel of the HG8447
respectively.

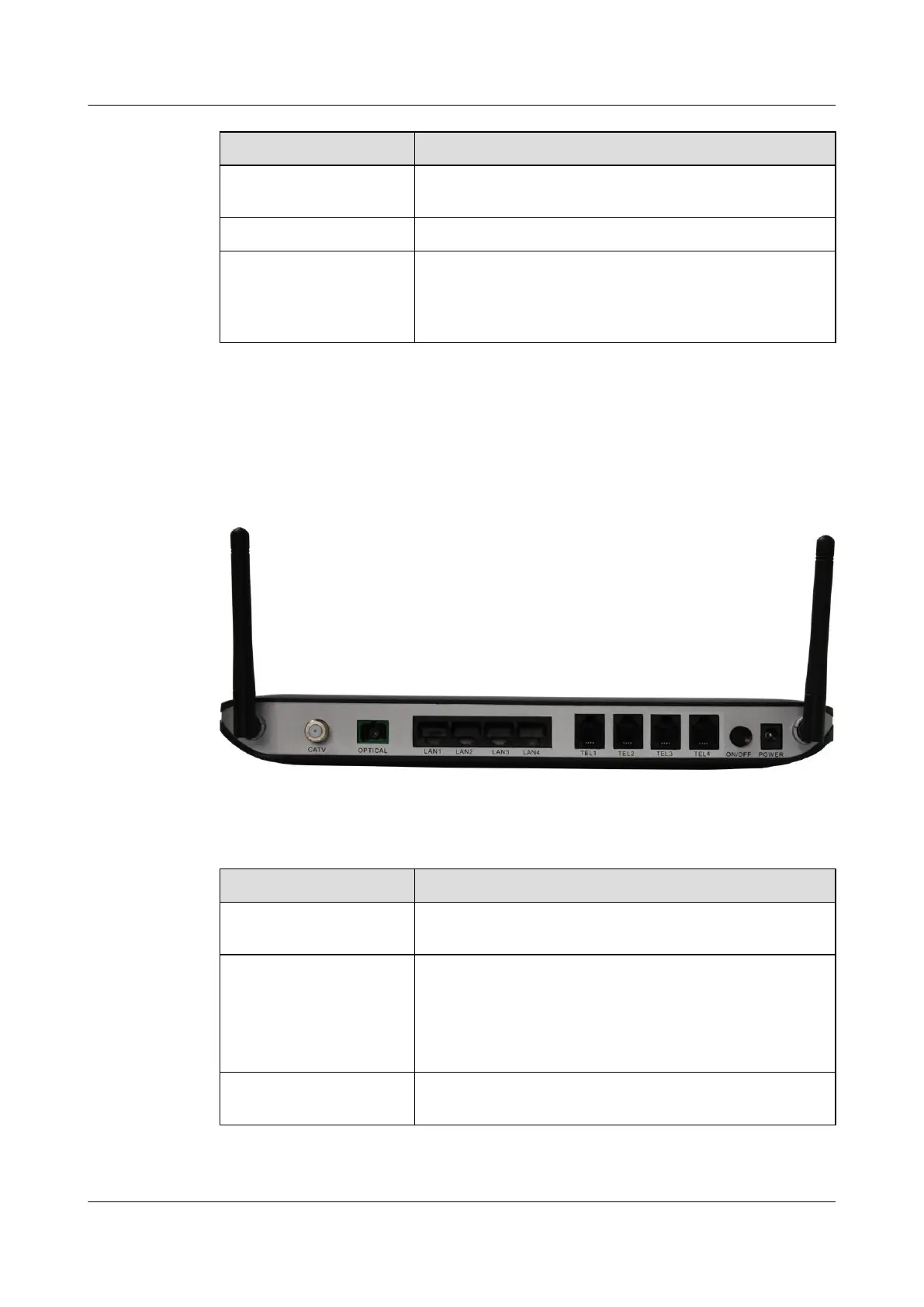

Figure 2-17 Ports on the rear panel of the HG8447
Table 2-11 Descriptions of the ports on the rear panel of the HG8447
Port and Button
Function
CATV
Indicates the radio frequency (RF) port, used for connecting to
a TV set.
OPTICAL
Indicates the optical port. The optical port is equipped with a
rubber plug and is connected to an optical fiber for upstream
transmission.
The type of the optical connector connected to the OPTICAL
port is SC/APC.
LAN1-LAN4
Indicate auto-sensing 10/100/1000M Base-T Ethernet ports
(RJ-45), used for connecting to PCs or IP STBs.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 2 System Overview
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
