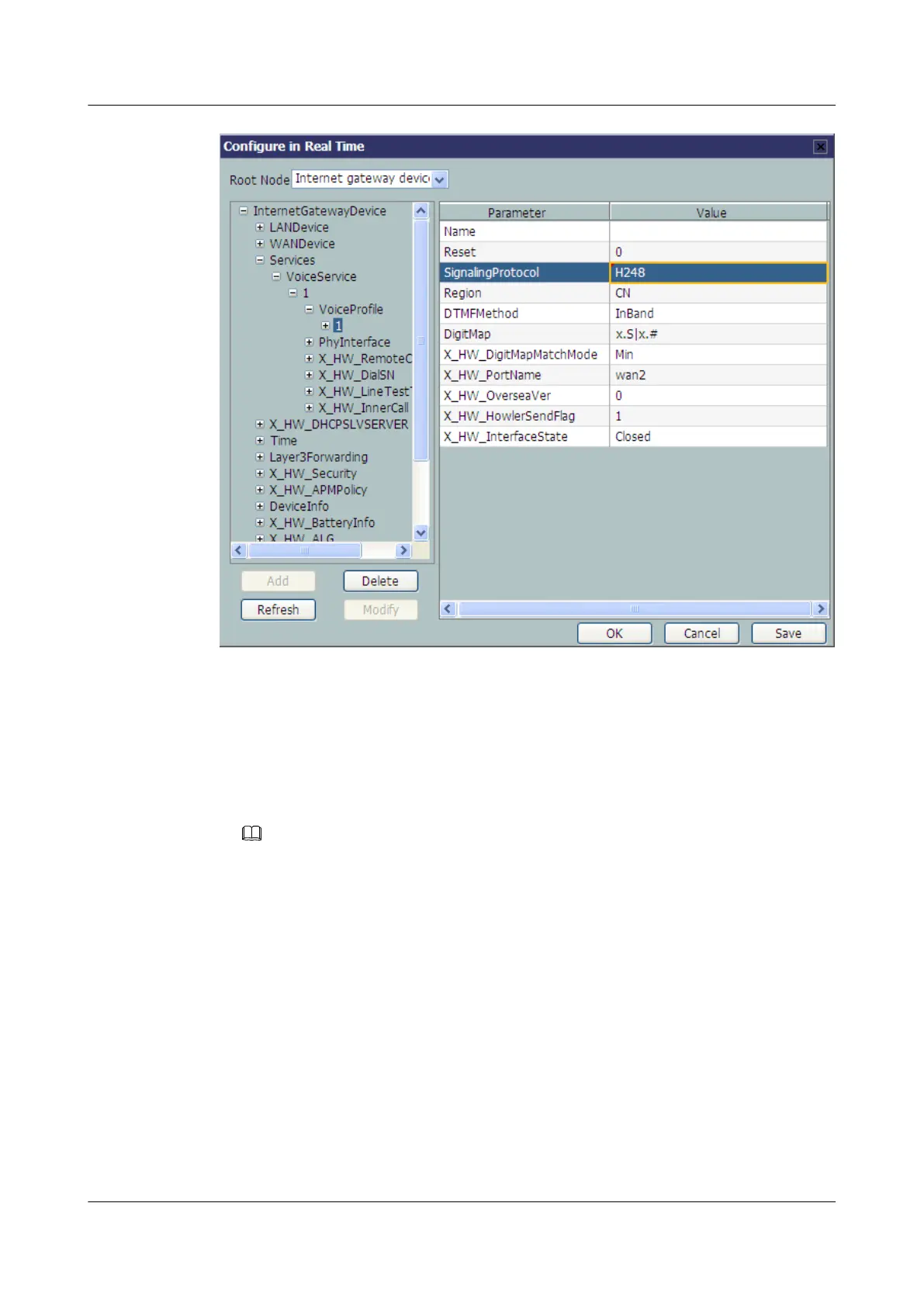

Step 5 Configure the H.248 service parameters.
Choose InternetGatewayDevice > Services > VoiceService > 1 > VoiceProfile > 1 >
X_HW_H248 from the navigation tree. In the right pane, set the parameters as follows:
l Set CallAgent1 to 200.200.200.200, indicating that the IP address of the MGC server is
200.200.200.200.
l Set Domain to 6877687714852901, indicating that the MG registration address is
68776877148529010016ECC54B80.
NOTE
Domain is ONT's domain name registered on the MGC. It is globally unique. Domain in this example is
ONT's SN.
l Set MIDFormat to DomainName, indicating that the MG uses its domain name to register.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
254
