a. In the Physical Map navigation tree on the Main Topology tab page, double-
click the target OLT, or select the target OLT, right-click, and choose NE
Explorer.
b. In the navigation tree, choose GPON > GPON Management.
c. In the window on the right, choose GPON ONU.
d. On the GPON ONU tab page, set the search criteria to find the GPON ONU
records.
e. Select a required record from the ONT list, right-click, and choose Configure
Value-Added Service from the shortcut menu.
f. In the dialog box that is displayed, click Import. Then, in the dialog box that is
displayed, choose the XML configuration file to be imported, as shown in the
following figure.

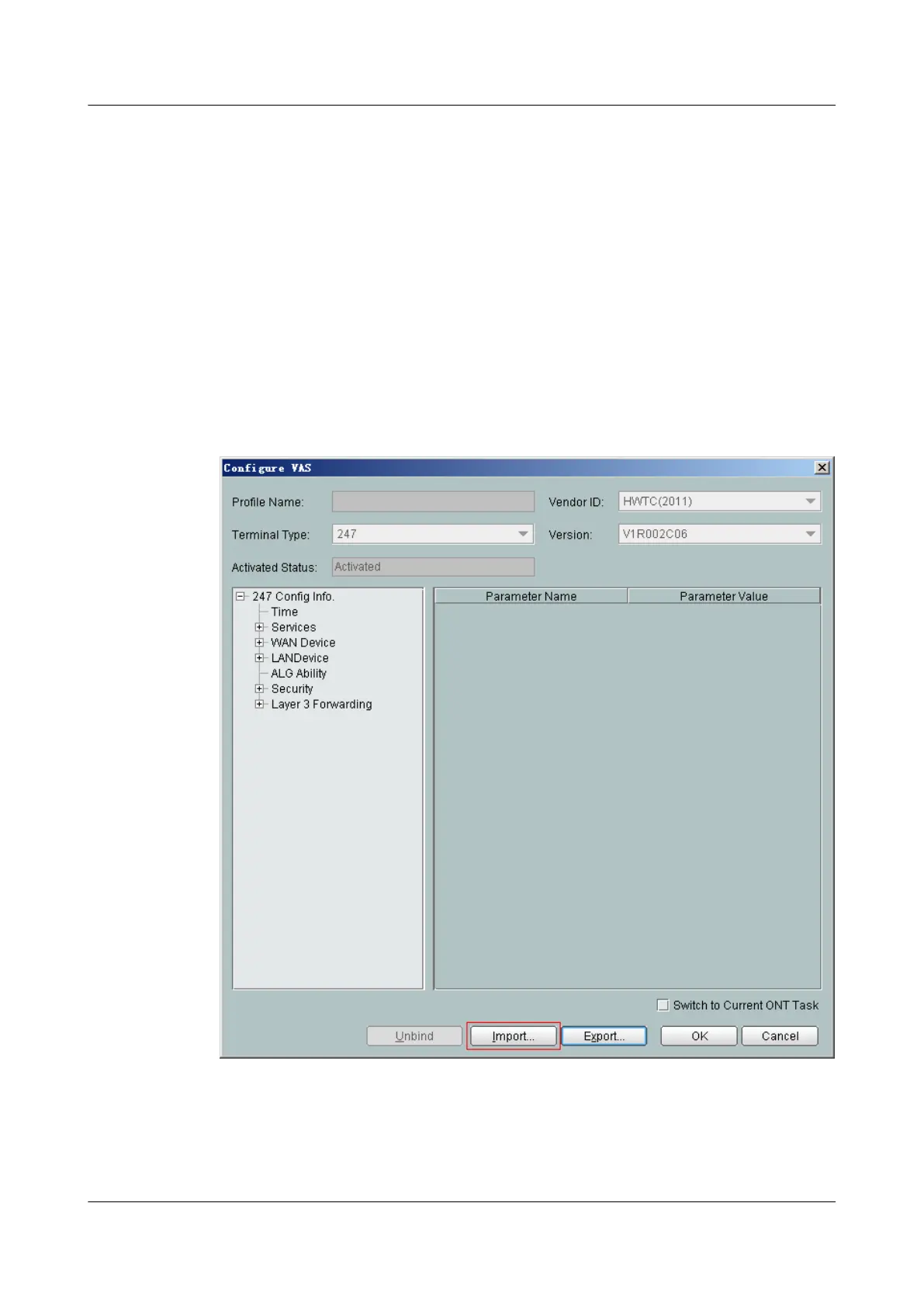

Figure 3-13 Importing the XML configuration file
g. Select Switch to ONT Load Task and click OK to issue the XML configuration
file to the ONT on the U2000. The configurations take effect without the
requirement of restarting the ONT.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
269
