In the navigation tree, choose WAN Device > WAN Device 1 > WAN Connection. Select
WAN Connection, right-click, and choose Add IP Connection from the shortcut menu. Select
WAN IP Interface1 and add a static WAN interface.
l Set WAN Interface Name, which identifies a WAN interface and can be specified freely.
l Set WAN Enable to enable.
l Set Connection Type to IP_Routed.
l Set Vlan ID the same as the CVLAN ID of the traffic streams configured on the OLT.
l Set Addressing Type to Static and set IP Address, Subnet Mask, and Default Gateway.
l Set Service Type to INTERNET.
For details, see Figure 4-5.

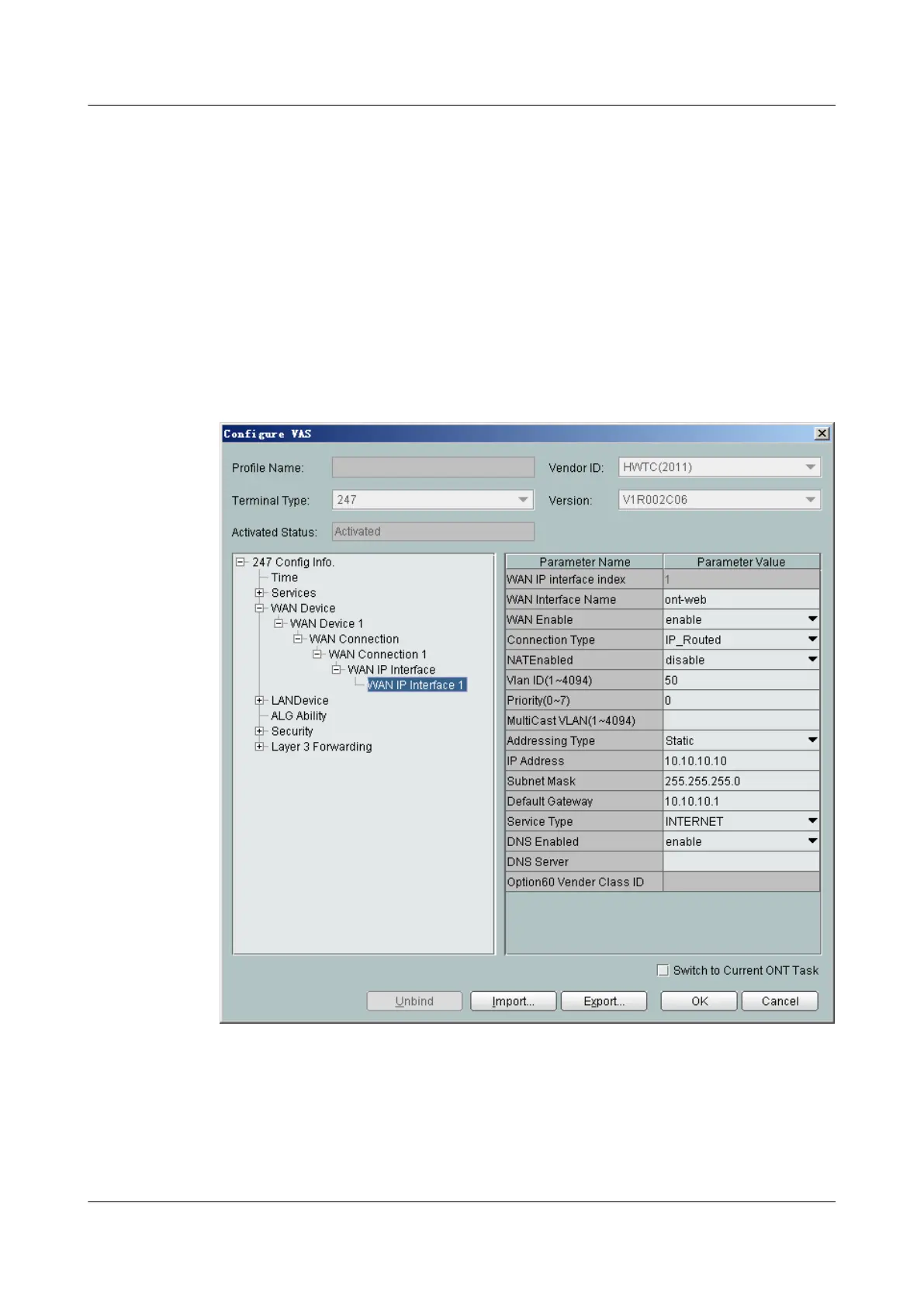

Figure 4-5 Configuring static WAN parameters
Step 6 Enable the access rights on the WAN.
In the navigation tree, choose Security > ACL Services. On the right pane, set HTTP WAN
Enables to enable.
For details, see Figure 4-6.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 4 Maintenance and Troubleshooting
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
283
