a. In the navigation tree, choose WAN Device > WAN Device 1 > WAN
Connection. Select WAN Connection, right-click, and choose Add PPP
Connection from the shortcut menu.

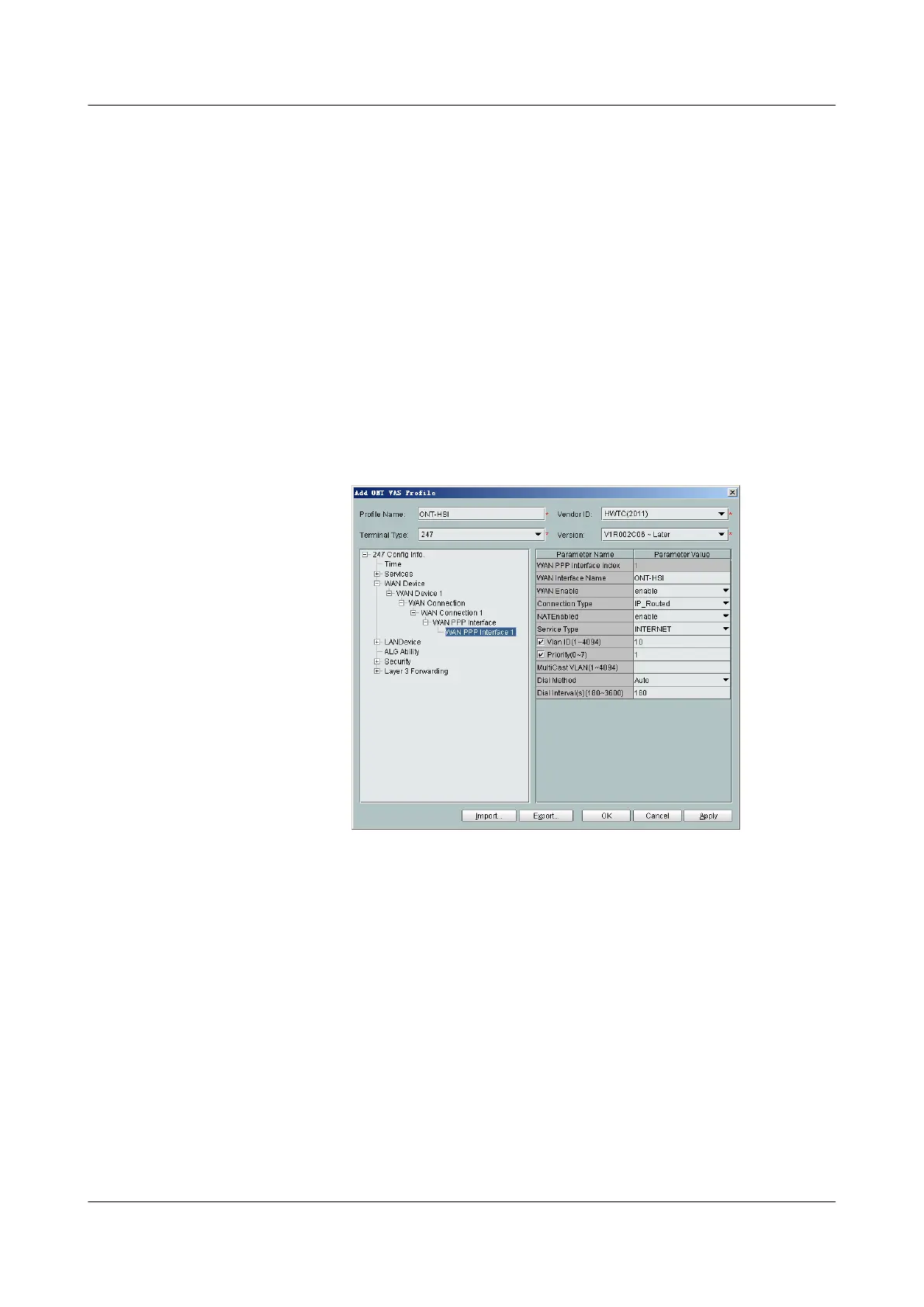

b. Select WAN PPP Interface 1 and enter (or select) a proper value.
– WAN Interface Name: ONT-HSI
– WAN Enable: enable
– Connection Type: IP_Routed
– NATEnable: Enable (NAT must be enabled to configure the Internet
access service.)
– Service Type: INTERNET (For configuring the Internet access service,
INTERNET or a combination containing INTERNET needs to be
selected.)
– VLAN ID: 10 (The VLAN ID of the ONT must be the same as the user-
side VLAN ID configured on the OLT.)
– Priority: 1
f. Configure a routing policy.
a. In the navigation tree, choose Layer 3 Forwarding > Policy Route. Select
Policy Route, right-click, and choose Add.
b. Choose Policy Route 1 and enter proper values.
– Physical Port Name: LAN1
– WAN Interface Name: WAN1(ONT-HSI)
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
60
