2. Add a service virtual port on the OLT side.
a. On the VLAN tab page, select the record where VLAN ID is set to 200 and click
the ServicePort tab in the lower pane.
b. In the information list, right-click and choose Add from the shortcut menu.

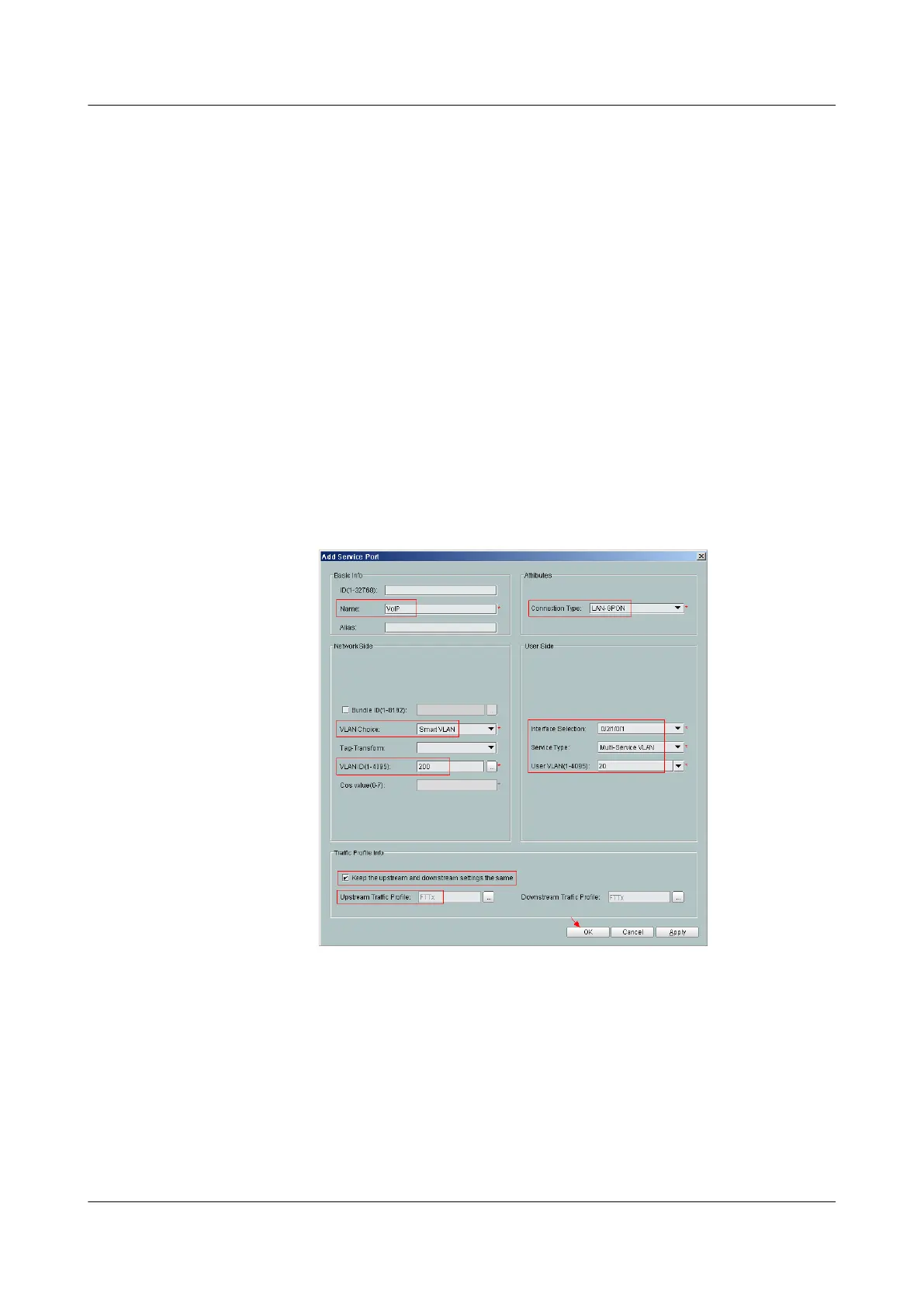

c. In the dialog box that is displayed, set the parameters.
– Name: VOIP
– VlAN Choice: Smart VLAN
– Connection Type: LAN-GPON (when the physical port is a GPON port) or
LAN-EPON (when the physical port is an EPON port)
– Interface Selection: 0/2/1/0/1 (when the connection type is LAN-GPON) or
0/2/1/0 (when the connection type is LAN-EPON)
– Vlan ID: 200 (SVLAN ID)
– Service Type: Multi-Service VLAN
– User VLAN: 20 (CVLAN ID)
– Keep the upstream and downstream settings the same: selected
– Upstream Traffic Name: FTTx
d. Click OK.
3. Configure the value-added service profile of the ONT.
a. From the main menu, choose Configuration > Access Profile Management. In
the navigation tree of the tab page that is displayed, choose PON Profile > ONT
VAS Profile.
b. On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut
menu.
c. In the dialog box that is displayed, set relevant parameters.
– Profile Name: ONT-VoIP
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
72
