Four-Cabinet Solution

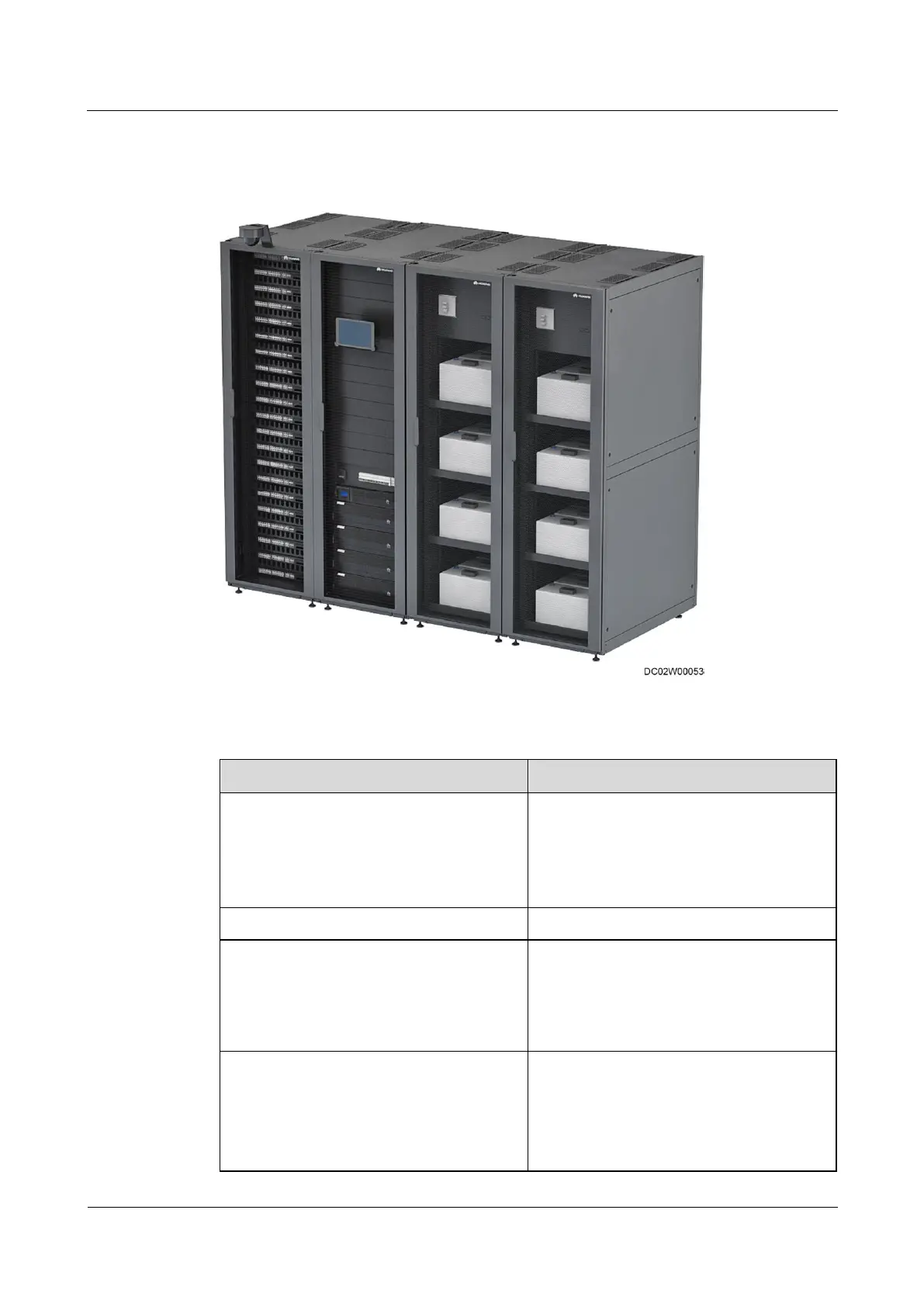

Figure 2-11 Network cabinet+Converged Cabinet+battery cabinet+battery cabinet
Table 2-11 Typical configuration 5
Item
Specifications
Cabinet dimensions (W x D x H)
600 mm x 1100 mm x 2000 mm
NOTE
Network cabinet dimensions (W x D x H):
600 mm x 1100 mm x 2000 mm or 800 mm x
1100 mm x 2000 mm
Power backup time
15–240 minutes
Power distribution
UPS2000-G, PDU5000, PDU2000, battery,
and transformer
NOTE
If batteries are configured, battery packs are not
required.
Monitoring
ECC800e, T/H sensor (Converged Cabinet),
T/H sensor (network cabinet, optional),
camera (optional), VCN500 (optional), door
status sensor (Converged Cabinet), door
status sensor (network cabinet, optional),
door status sensor (battery cabinet,
