3.4.6 Door Status Switch

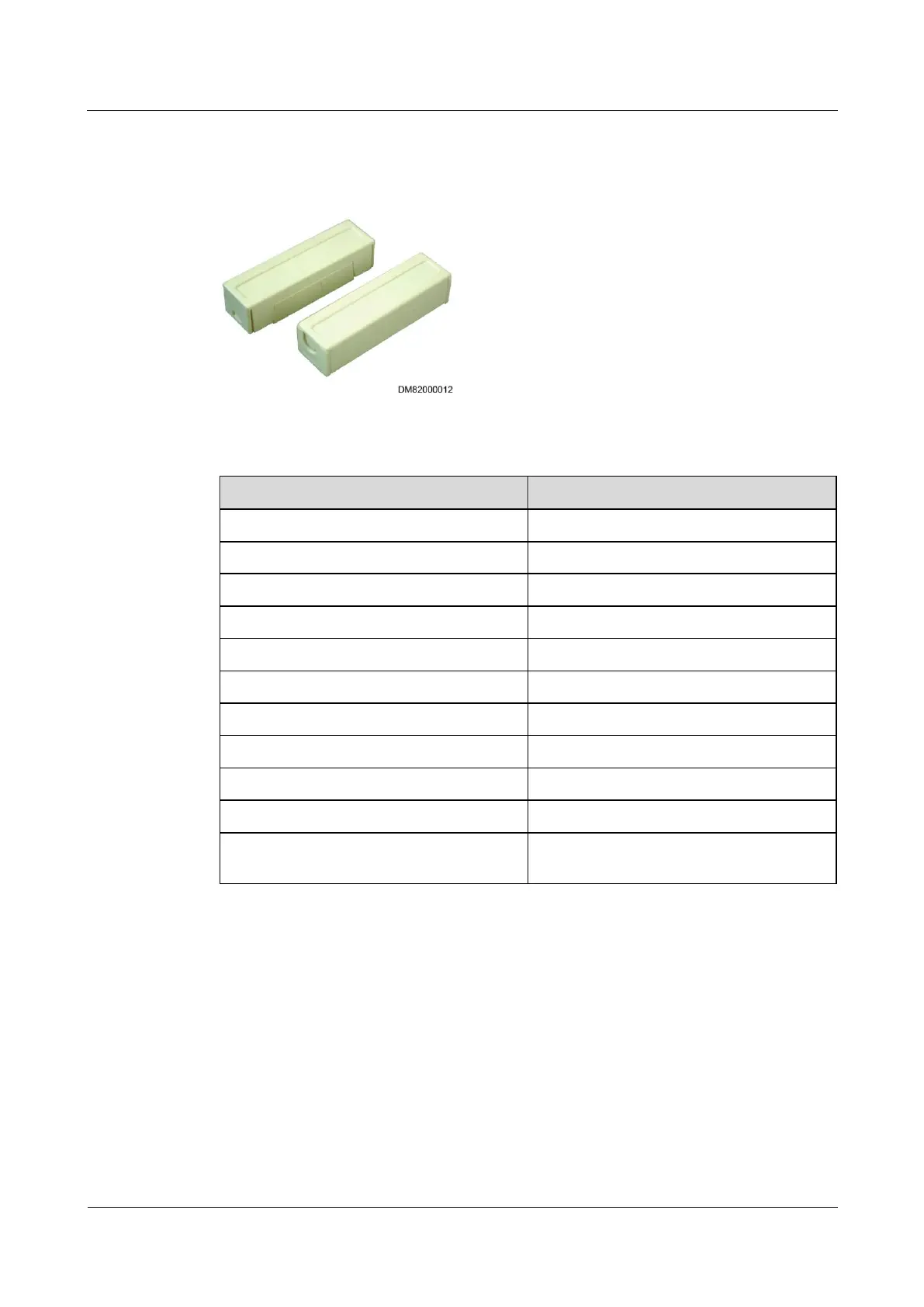

Figure 3-18 Door status switch
Table 3-27 Door status switch technical specifications
Item
Specifications
Connection method
Using wiring terminals
Rated current
500 mA
Opening distance
25 mm ≤ Opening distance ≤ 45 mm
Rated power
10 W
Securing mode
Using screws
Distance between mounting holes
40 mm ±0.8 mm
Open-circuit voltage
100 V DC (maximum)
Contact withstand voltage
150 V DC (maximum)
Resistance
0.3 ohm
Switch form
Normally open
Outer material
White acrylonitrile butadiene styrene (ABS)
engineering plastic
3.4.7 (Optional) Intelligent Battery Monitoring System
The intelligent battery monitoring system consists of the CIM (CIM01C2) and BIM
(BIM01C3).
The communication interface module (CIM) is an intelligent battery management module
which collects wireless communication data from the downstream BIM groups, collects and
analyzes the operating data of battery strings, calculates state of charge (SOC) and state of
health (SOH) of batteries and battery strings, estimates the battery health status, supports
battery tripping management, and uploads data to the monitoring system through COM or
PoE ports.
