Table 3-20 Wireless network pairing and IP address reset buttons
Name
Function
Function
Description
Status
SW
WiFi pairing button
Reserve
1. When the system
enters the pairing
mode, the RUN
indicator is
steady on.
2. When the pairing
succeeds, the
RUN indicator is
steady on.
3. If pairing does
not succeed for 3
minutes, the
RUN indicator
blinks just as
before WiFi
pairing.
Default
IP address reset
Press and hold down
the button for 3s.
Then the IP address
for the ECC800e
WAN port will
restore to the default
address
192.168.1.10.
N/A
3.4.3 (Optional) Independent Deployment AI/DI Unit
If the AI/DI expansion card inserted into the ECC800e cannot meet the AI/DI collection
quantity requirements, connect an independent deployment AI/DI unit to the RS485 port on
the ECC800e. The independent deployment AI/DI unit supports eight AI/DI inputs to collect
AI/DI signals.

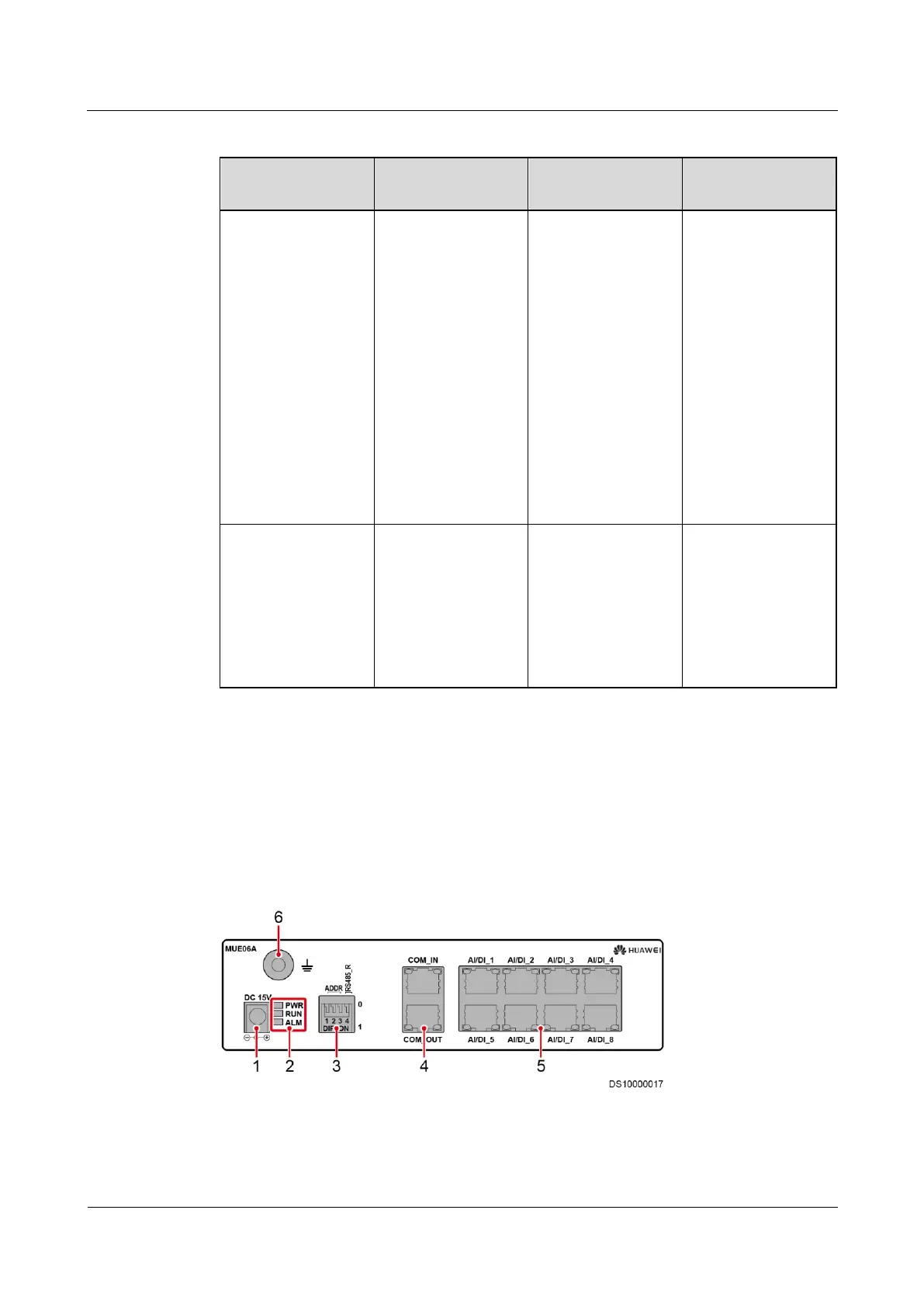

Figure 3-15 Front panel of the independent deployment AI/DI unit
(1) DC 15 V power input port
(2) Indicators
(3) DIP switch
(4) Cascading ports
(5) AI/DI_1 to AI/DI_8
(6) Ground point
