Huawei FusionModule500

FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 01 (2017-04-20)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22

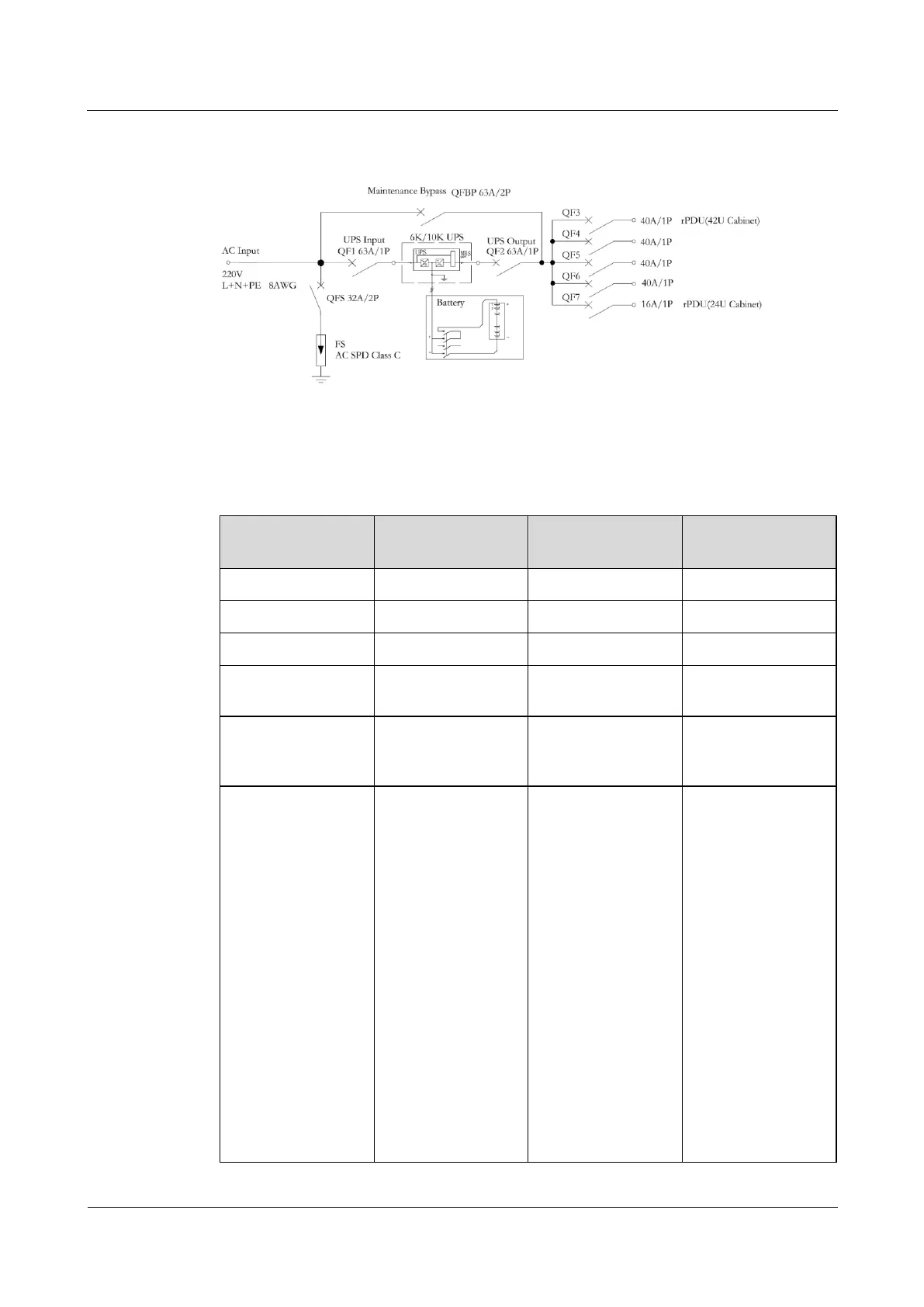

Figure 3-2 Power distribution conceptual diagram for the 220 V single-phase scenario with the 6
kVA/10 kVA UPS
The power distribution system meets the power supply requirements of single-phase 220
V/230 V/240 V.
Table 3-2 Power distribution system technical specifications
Item
Specifications (10
kVA UPS)
Specifications (6
kVA UPS)
Specifications (3
kVA UPS)
Rated power
9 kW
5.4 kW
2.7 kW
Rated input voltage
220 V/230 V/240 V
220 V/230 V/240 V
220 V/230 V/240 V
Rated frequency
50 Hz/60 Hz
50 Hz/60 Hz
50 Hz/60 Hz
Maximum input
current
50 A
32 A
19 A
External input
power distribution
circuit breaker
63 A
50 A
32 A
UPS backup power
Battery pack
(optional):

0–4 (7 Ah/240
V)

0–4 (9 Ah/240
V)
Battery:

26 Ah/12 V

40 Ah/12 V

65 Ah/12 V

100 Ah/12 V
Battery pack
(optional):

24 U cabinet:
0–2 (7 Ah/240
V)
0–2 (9 Ah/240
V)

42 U cabinet:
0–4 (7 Ah/240
V)
0–4 (9 Ah/240
V)
Battery:

26 Ah/12 V

40 Ah/12 V

65 Ah/12 V
Battery pack
(optional):

24 U cabinet:
0–2 (7 Ah/240
V)
0–2 (9 Ah/240
V)

42 U cabinet:
0–4 (7 Ah/240
V)
0–4 (9 Ah/240
V)
Battery:

26 Ah/12 V

40 Ah/12 V

65 Ah/12 V
