Huawei FusionModule500 Manual

FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 01 (2017-04-20)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
28

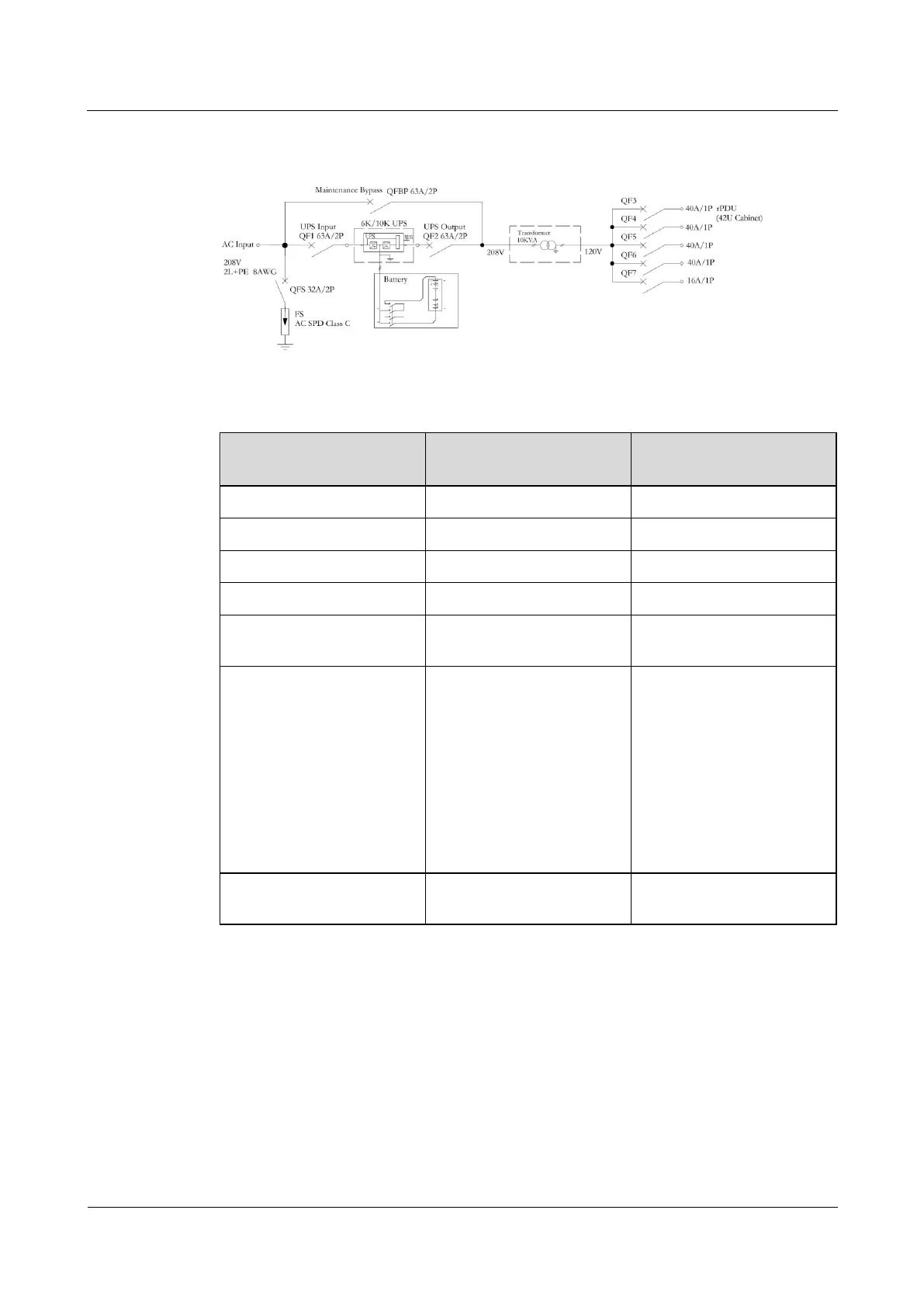

Figure 3-7 Electrical conceptual diagram for the 208 V dual-live wire system configured with the
10 kVA/6 kVA UPS
Table 3-8 Power distribution system technical specifications
Item
Specifications (10 kVA
UPS)
Specifications (6 kVA
UPS)
Rated power
8.1 kW
4.8 kW
Rated input voltage
208 V
208 V
Rated frequency
60 Hz
60 Hz
Maximum input current
48 A
31 A
External input power
distribution circuit breaker
63 A
50 A
UPS backup power
Battery pack (optional):

0–3 (7 Ah/240 V)

0–3 (9 Ah/240 V)
Battery:

26 Ah/12 V

40 Ah/12 V

65 Ah/12 V

100 Ah/12 V
Battery pack (optional):

0–3 (7 Ah/240 V)

0–3 (9 Ah/240 V)
Battery:

26 Ah/12 V

40 Ah/12 V

65 Ah/12 V

100 Ah/12 V
Surge protection
Level D SPD (differential
mode/common mode: 5 kA)
Level D SPD (differential
mode/common mode: 5 kA)
