FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

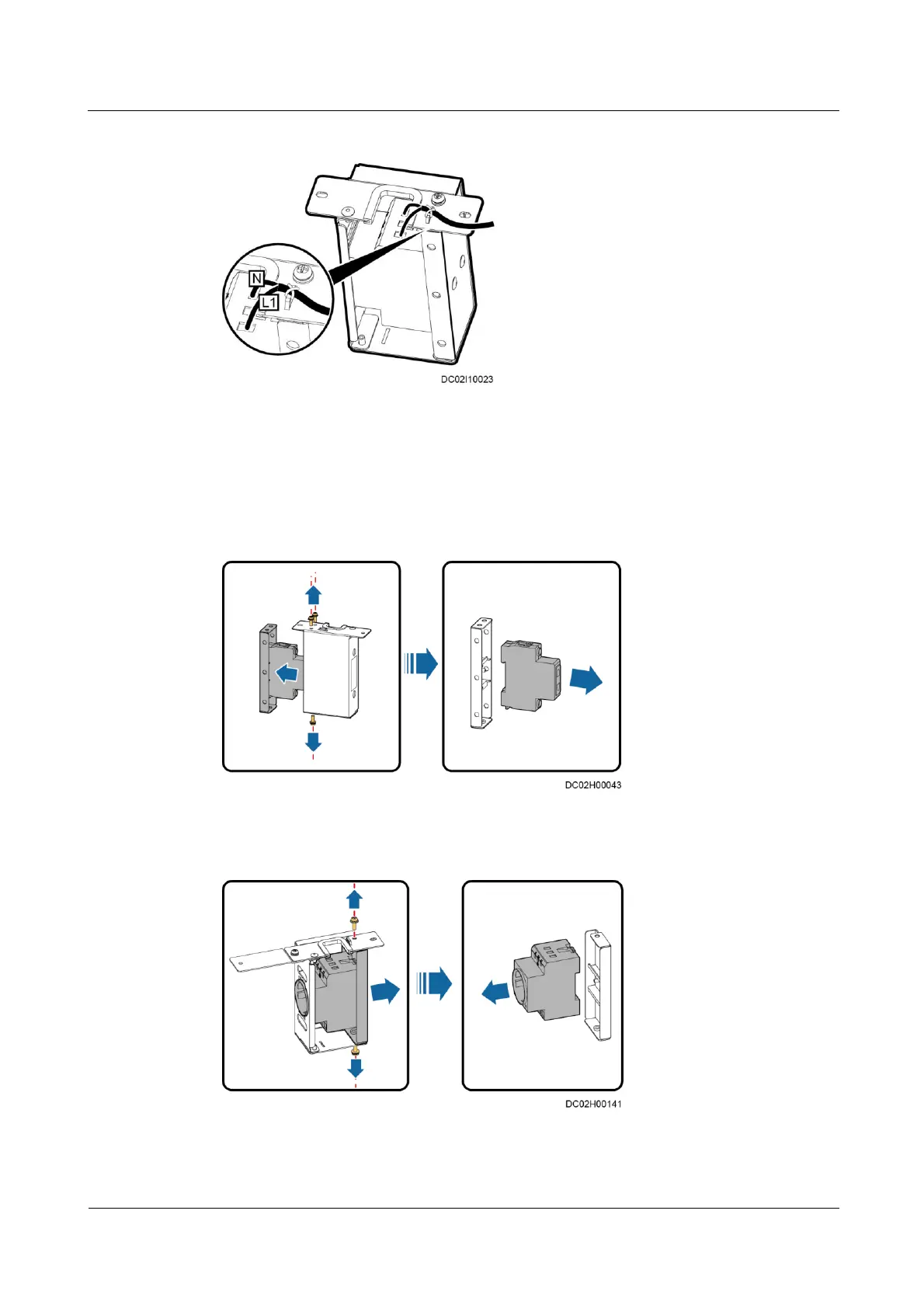

Figure 5-64 Disconnecting cables from the power connector (BOM number: 14190242)
Step 3 Remove the pad power connector from its holder, as shown in the following figures.
1. Unscrew the holder cover by removing M4x12 screw assemblies.
2. Remove the power connector from the guide rail of the holder.
Figure 5-65 Removing a pad power connector from its holder (BOM number: 14190892)
Figure 5-66 Removing a pad power connector from its holder (BOM number: 14190242)
Step 4 Assemble the pad power connector holder, as shown in the following figures.
