Installation Manual
Quidway S3526 Ethernet Switch Chapter 2 Specifications and Features
2-1
Chapter 2 Specifications and Features
2.1 S3526
Switch

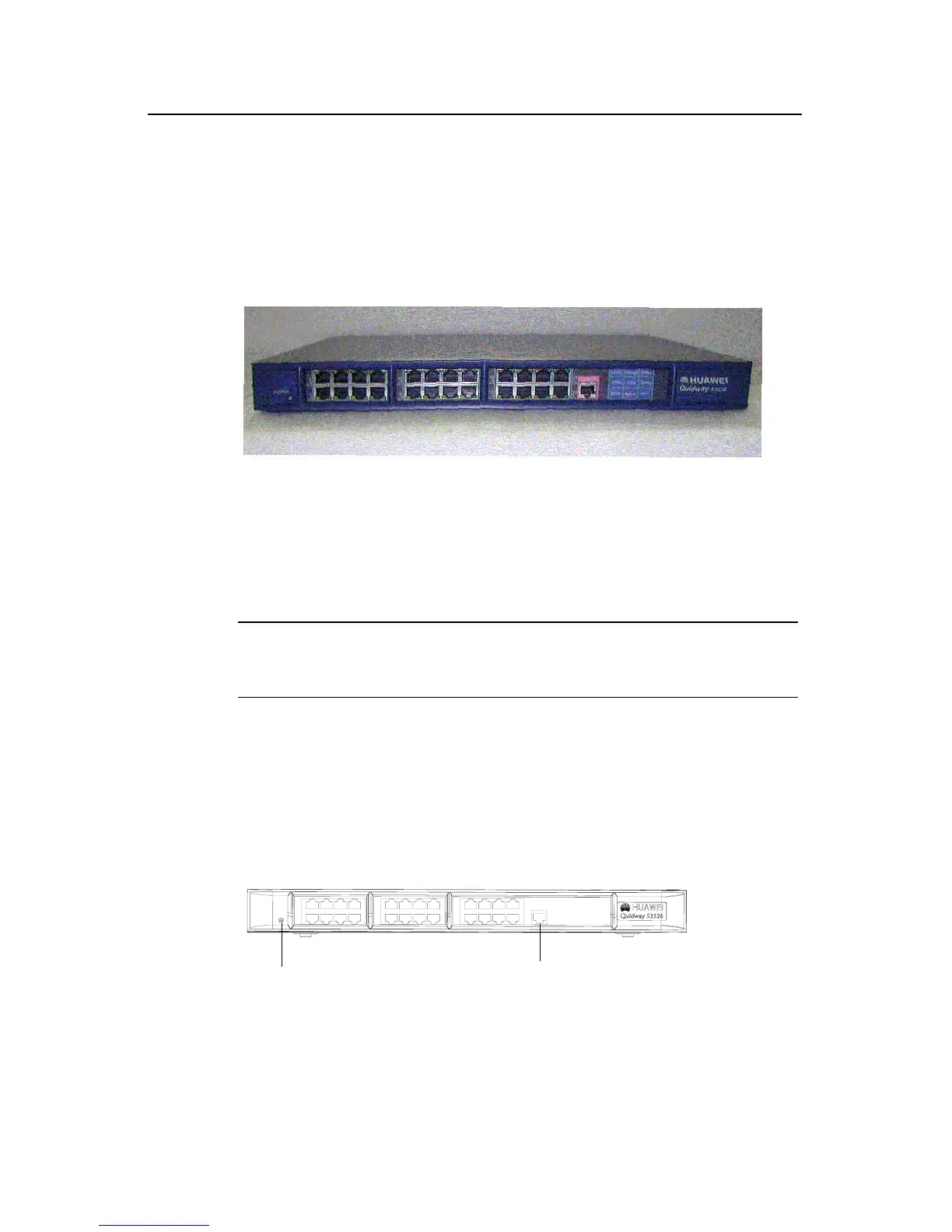

Figure 2-1 S3526 Ethernet Switch
2.2 Front Panel of S3526 Switch
Note:
The DC chassis and AC chassis have the same front panel.
2.2.1 Front Panel
As illustrated in the following figure, there are, from left to right, the power indicator, 24
fixed 10Base-T/100Base-TX Ethernet interfaces and a Console port on the front panel
of S3526 switch.
Power indicator
Console port
CONSOLE
Figure 2-2 Front panel of S3526 Ethernet Switch
The meaning of the indicators on the front panel of S3526 Ethernet Switch is described
in the following table.
