Installation Manual
Quidway S3526 Ethernet Switch Chapter 8 Optional Interface Modules
8-7
8.5.3 Module Panel and the Indicators

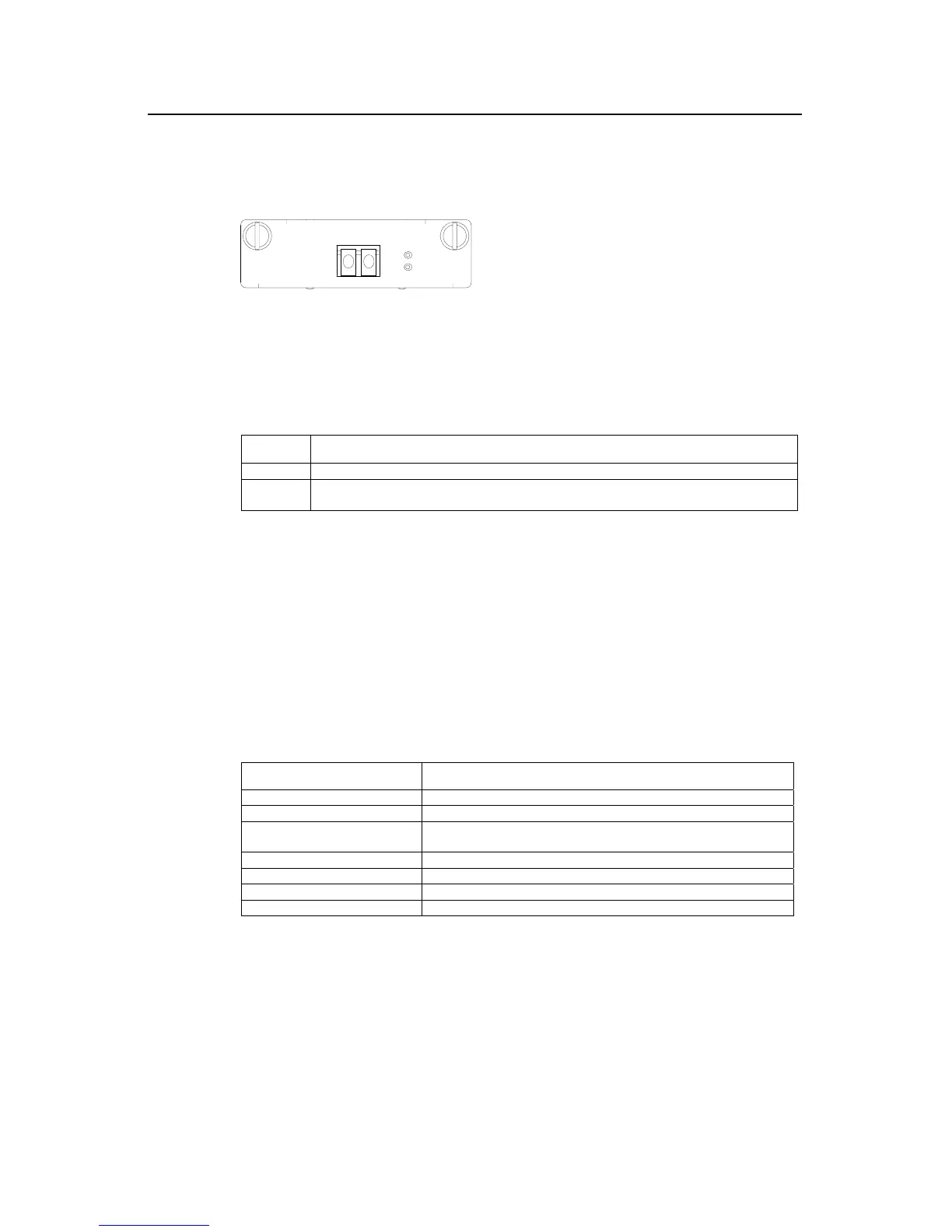

1000Base-ZX module panel is illustrated in the following figure.
1000BASE-ZX
GZ MODULE
Class 1 Laser Product
LINK
ACTIVE
TX RX
Figure 8-5 1000Base-ZX module panel
The description of the panel indicators is given in the following table.
Table 8-7 Meaning of indicators on 1000Base-ZX module panel
Indicator State
LINK Off means the line is not connected. On means the line is connected.
ACTIVE
Off means no data is being received or sent. Blinking means there is data being received and
transmitted.
8.6 1000Base-LX GL Module
8.6.1 Introduction
1000Base-LX GL module provides a Gigabit optical interface and uses single-mode
fiber for transmission within 40km.
Table 8-8 Interface attributes of 1000Base-LX GL module
Attribute Description
Type of connector LC
Number of the interfaces
1
Cable and transmission distance
40km transmission distance when 9/125µm single mode optical fiber is
selected.
Compliant standard
IEEE 802.3 z
Central wavelength
1550nm
Transmitting optical power
-5.0dBm to 0dBm
Receiving sensitivity
-21dBm
8.6.2 Appearance
1000Base-LX GL module panel is illustrated in the following figure.
