l Configuration file of Switch D
#
sysname Switch D
#
ipv6
#
vlan batch 40
#
interface Vlanif40
ipv6 enable
ipv6 address 1002::2/64
ospfv3 1 area 0.0.0.2
#
interface XGigabitEthernet0/0/2
port hybrid pvid vlan 40
port hybrid untagged vlan 40
#
ospfv3 1
router-id 4.4.4.4
area 0.0.0.2
stub
#
return
5.12.2 Example for Configuring DR Election Through OSPFv3
Networking Requirements
As shown in Figure 5-2, the priority of Switch A is 100, which is the highest priority on the
network; therefore, Switch A is elected as the DR. Switch C, which has the second highest
priority, is elected as the BDR. The priority of Switch B is 0, which means that it cannot become
the DR. Switch D is not configured with a priority, that is, Switch D uses the default priority,
namely, 1.

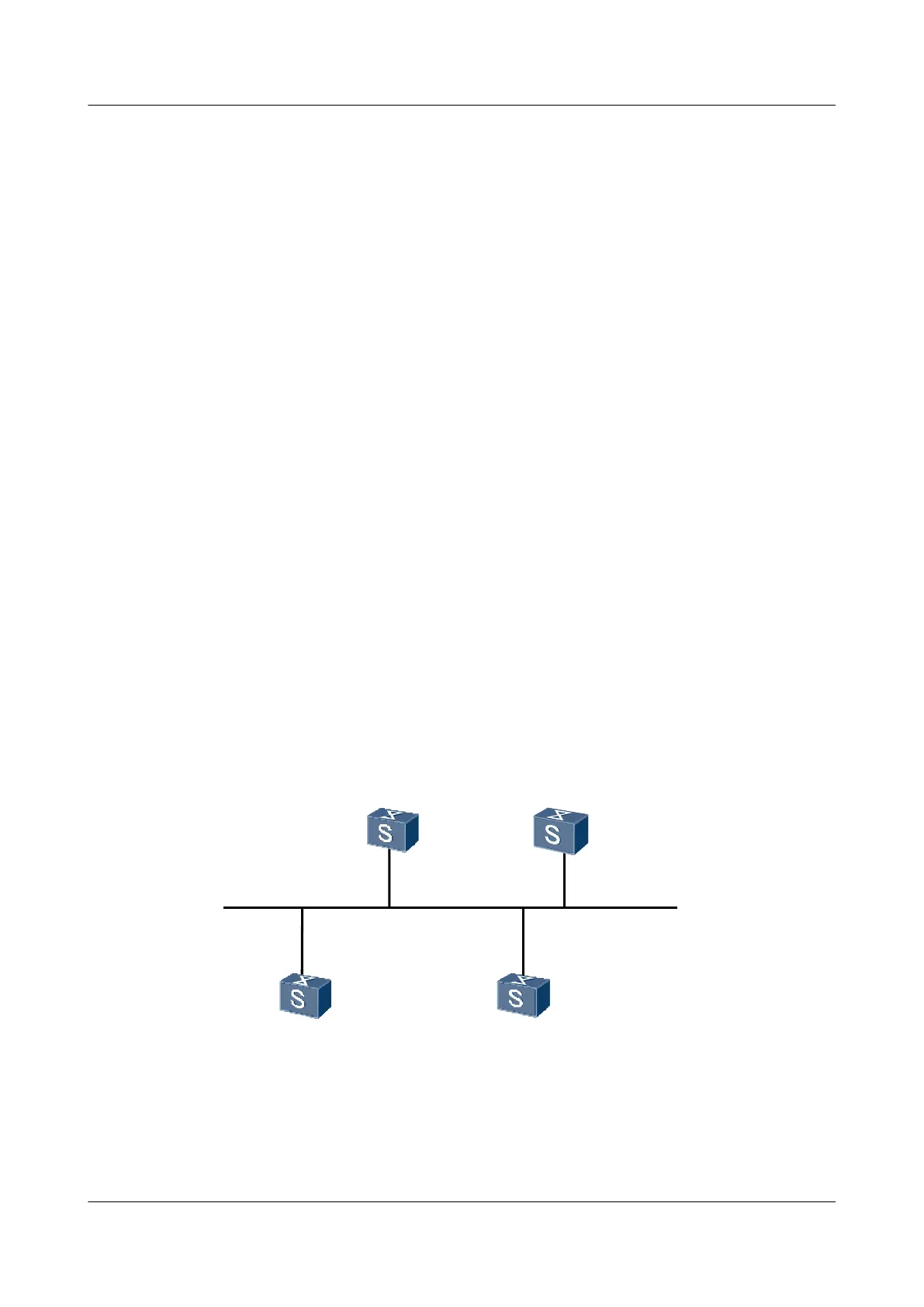

Figure 5-2 Networking diagram for configuring DR election through OSPFv3
SwitchA
XGE0/0/1
XGE0/0/1
XGE0/0/1
XGE0/0/1
SwitchD
SwitchB
VLANIF10
VLANIF10
VLANIF10
1001::4/64
VLANIF10
SwitchC
1001::3/64
1001::1/64
1001::2/64
Device name
Interface VLANIF interface IP address
Switch A XGE0/0/1 VLANIF 10 1001::1/64
Switch B XGE0/0/1 VLANIF 10 1001::2/64
Switch C XGE0/0/1 VLANIF 10 1001::3/64
