Huawei S6700 Series

#
isis 1
is-level level-2
network-entity aa.3333.3333.3333.00
#
interface Vlanif30
ip address 100.2.1.2 255.255.255.0
isis enable 1
#
interface XGigabitEthernet0/0/1
port hybrid pvid vlan 30
port hybrid untagged vlan 30
#
return
6.18.7 Example for Configuring Dynamic BFD for IS-IS
Networking Requirements
As shown in Figure 6-9, it is required as follows:
l Run IS-IS on Switch A, Switch B, and Switch C.
l Enable BFD of the IS-IS process on Switch A, Switch B, and Switch C.
l Traffic is transmitted on the active link Switch A → Switch B. The link Switch A → Switch
B → Switch C acts as the standby link.
l Enable BFD of the interface on the link between Switch A and Switch B. When the link
between Switch A and Switch B fails, BFD can quickly detect the fault and notify IS-IS of
the fault; therefore, the traffic is transmitted on the standby link.

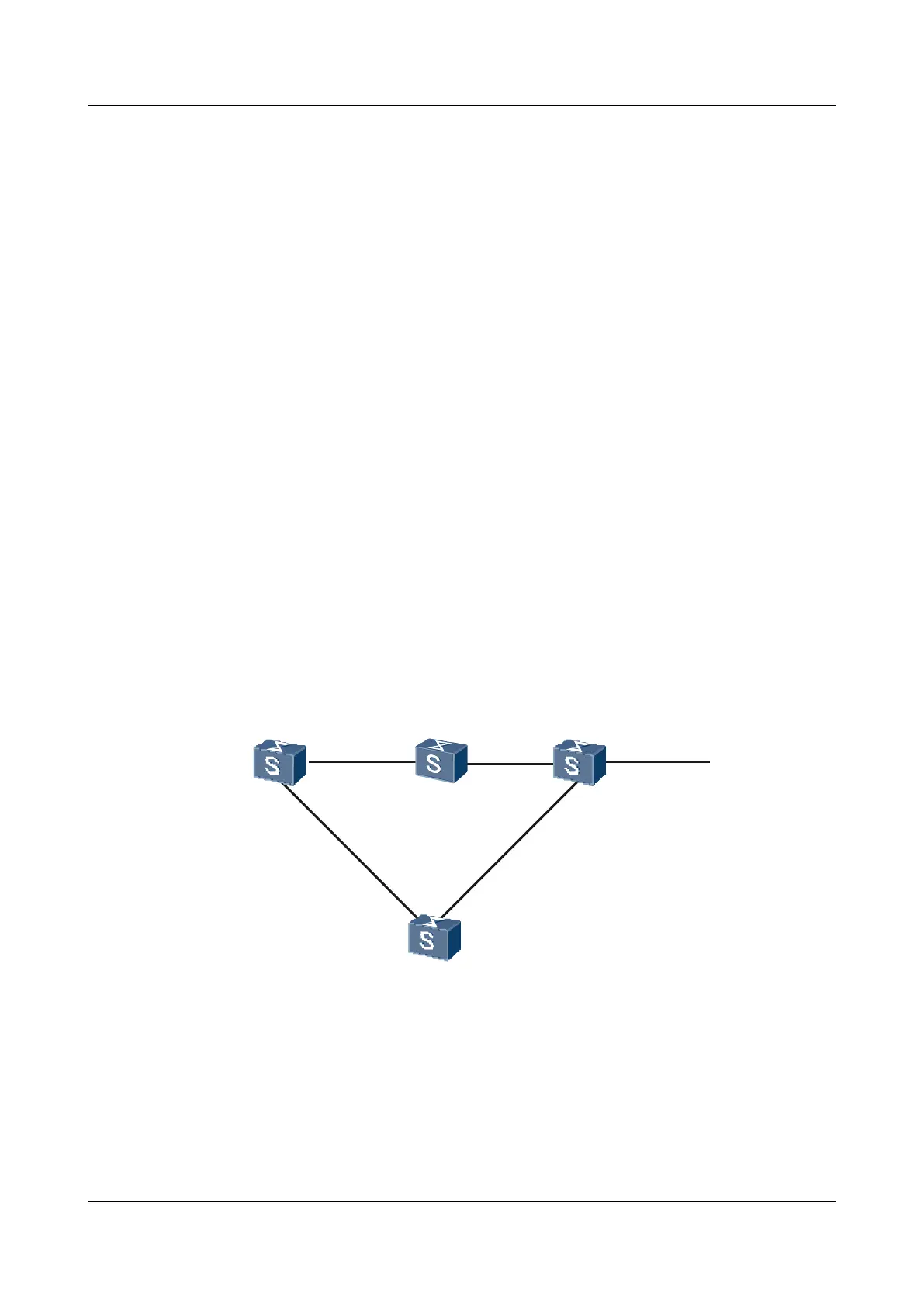

Figure 6-9 Networking diagram for configuring the dynamic BFD
Switch A SwitchB
SwitchC
XGE0/0/2
3.3.3.1/24
XGE0/0/2
3.3.3.2/24
XGE0/0/3
172.16.1.1/24
XGE0/0/1
1.1.1.1/24
XGE0/0/1
1.1.1.2/24
XGE0/0/1
2.2.2.2/24
XGE0/0/2
2.2.2.1/24
Switch
Interface VLANIF interface IP address
Switch A XGE0/0/1 VLANIF 10 1.1.1.1/24
Switch A XGE0/0/2 VLANIF 20 3.3.3.1/24
Switch B XGE0/0/1 VLANIF 50 2.2.2.2/24
Switch B XGE0/0/2 VLANIF 20 3.3.3.2/24
Switch B XGE0/0/3 VLANIF 40 172.16.1.1/24
