Huawei S6700 Series

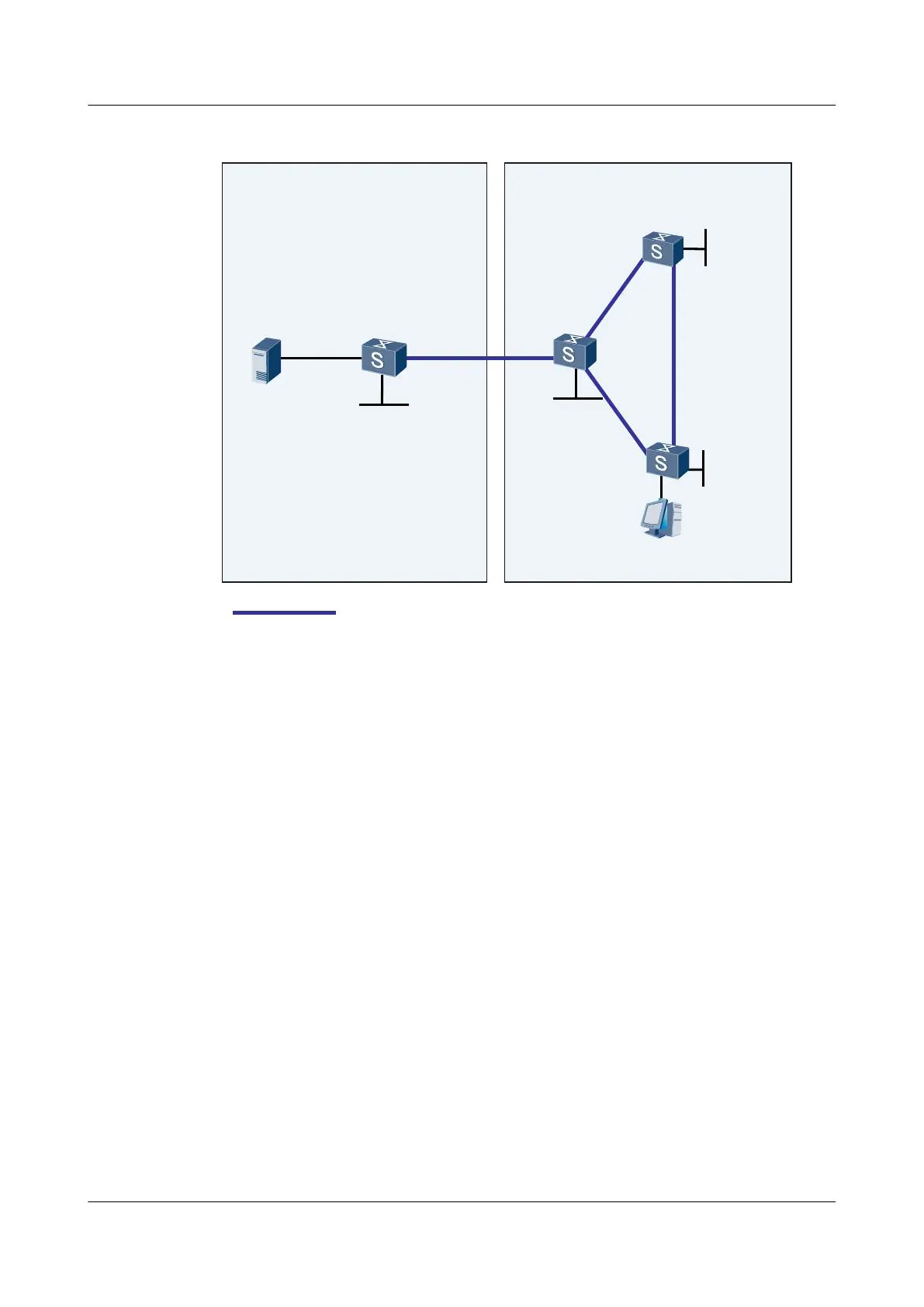

Figure 9-1 Networking diagram of MBGP configuration
MBGP peers
SwitchA
AS100
XGE1/0/0
SwitchB
SwitchD
SwitchC
AS200
XGE2/0/0
XGE1/0/0
XGE2/0/0
XGE2/0/0
XGE1/0/0
Source
Receiver
XGE2/0/0
XGE3/0/0
XGE3/0/0
XGE1/0/0
Loopback0
Loopback0
Loopback0
Loopback0
Switch Interface Vlanif interface IP address
Switch A XGE 0/0/1 Vlanif100 192.1.1.1/24
XGE 0/0/2 Vlanif101 10.10.10.1/24
LoopBack0 1.1.1.1/32
Switch B XGE 0/0/1 Vlanif100 192.1.1.2/24
XGE 0/0/2 Vlanif200 194.1.1.2/24
XGE 0/0/3 Vlanif300 193.1.1.2/24
LoopBack0 2.2.2.2/32
Switch C XGE 0/0/1 Vlanif400 195.1.1.1/24
XGE 0/0/2 Vlanif102 22.22.22.1/24
XGE 0/0/3 Vlanif300 193.1.1.1/24
LoopBack0 3.3.3.3/32
Switch D XGE 0/0/1 Vlanif400 195.1.1.2/24
XGE 0/0/2 Vlanif200 194.1.1.1/24
LoopBack0 4.4.4.4/32
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure the IP addresses for the interfaces on each Switch to ensure internetworking
within the AS in unicast mode.
2. Configure the MBGP peer and set up inter-AS multicast routes.
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 9 MBGP Configuration
