3.2.2 LC/PC-LC/PC-Multi-Mode Optical Cable
Function
The LC/PC-LC/PC-multi-mode optical cables are used to connect service boards and network
elements (NEs).
Appearance
The LC/PC-LC/PC-multi-mode optical cable is orange, as shown in Figure 3-10. Users can
choose single-mode or multi-mode optical cables based on site requirements.

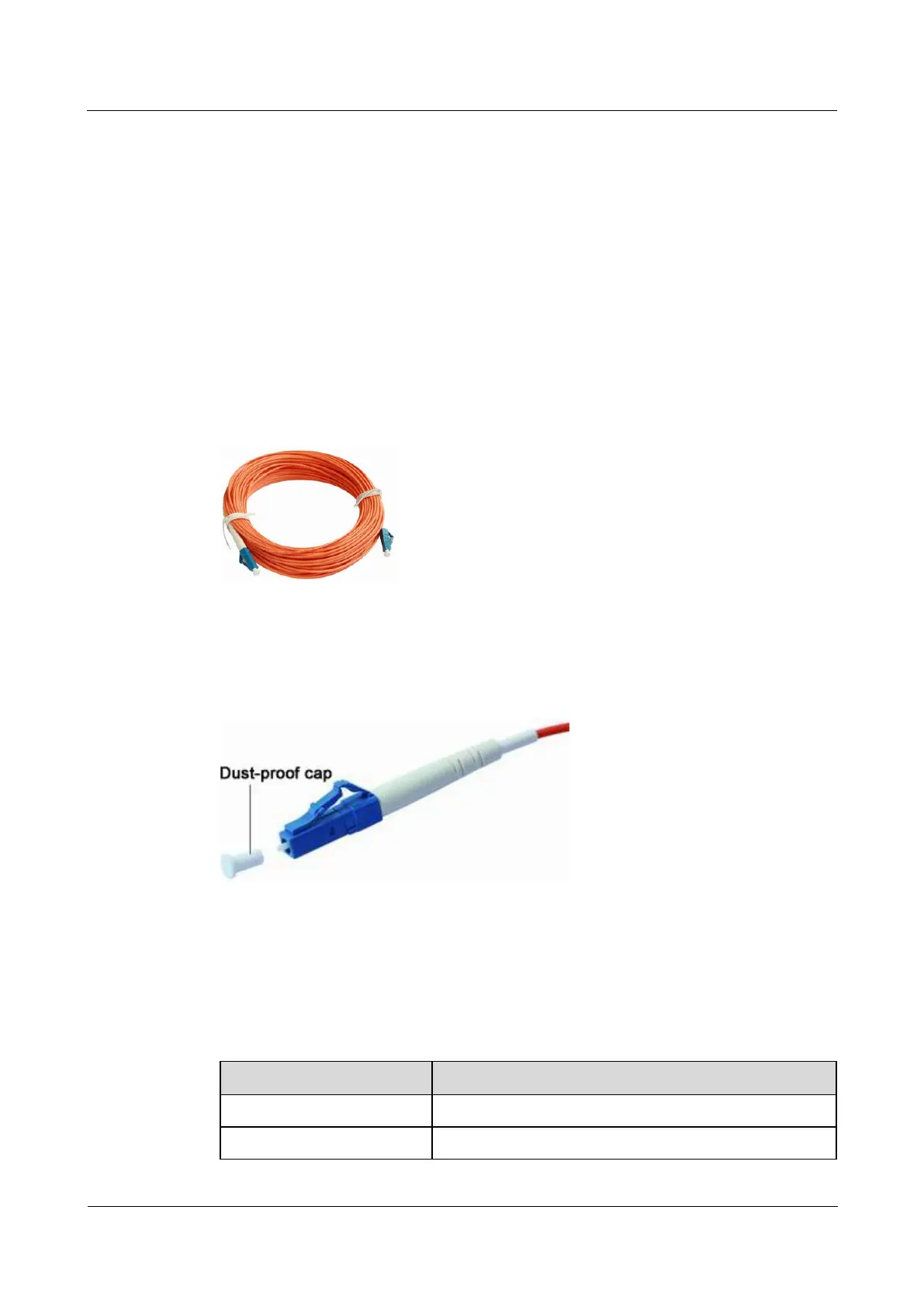

Figure 3-10 LC/PC-LC/PC-multi-mode optical cable
An LC/PC connector is used at both ends of an LC/PC-LC/PC multi-mode optical cable.
Figure 3-11 shows an LC/PC connector.
Figure 3-11 LC/PC connector
Technical Specifications
The LC/PC-LC/PC-multi-mode optical cables comply with ITU G651 and GB/T 12357. Table
3-6 lists the technical specifications of the LC/PC-LC/PC-multi-mode optical cable.
Table 3-6 Technical specifications of the LC/PC-LC/PC-multi-mode optical cable
Item
Specifications
Cable type
Optical jumper
Transfer mode
Multi-mode
