Item
Specifications
rows, for OEM
X3
USB2.0 connector, double line, 8-pin,
female connector
X4
Network interface connector, 8-bit 8-pin,
shielded, model socket/top plugging type,
with fixed pin/pin tail length 3.43 mm
X5
USB2.0 connector, single line, 4-pin, female
connector
W1-2
Twisted-pair cable, 100 ohms, SEYVP, 0.48
mm, 26 AWG, 4 pairs, black
W3-4
Twisted-pair cable, 100 ohms, SEYVP, 0.48
mm, 26 AWG, 2 pairs, black
3.2.7 DB9-RJ45 Serial Cable
Functions
The DB9-RJ45 serial cable is used for data transmission. It has a DB9 connector at one end
and an RJ45 connector at the other end. The DB9 connector connects to the serial port of a
client, and the RJ45 connector connects to the serial port of a device.
Appearance
Figure 3-19 shows the appearance of a DB9-RJ45 serial cable.

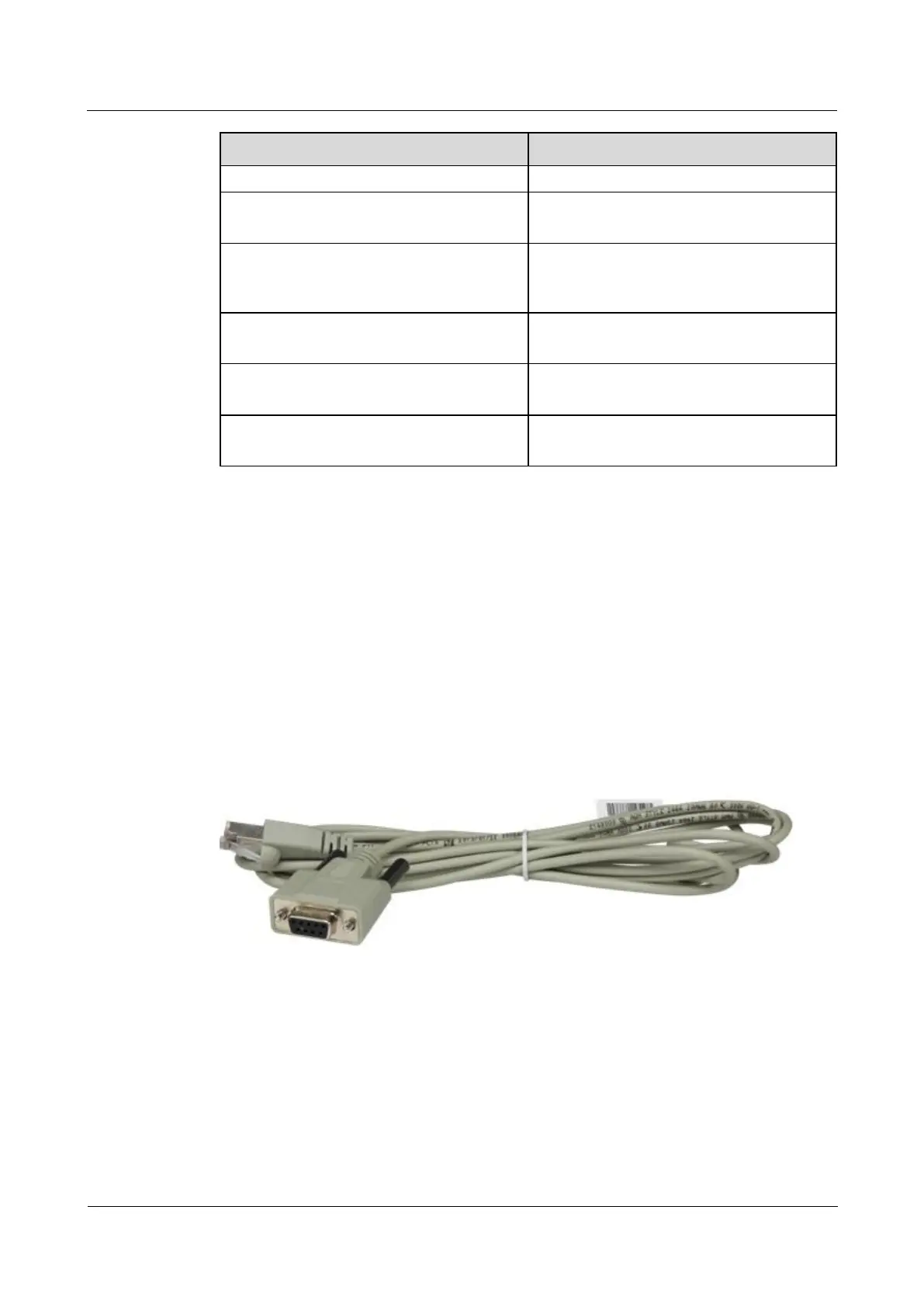

Figure 3-19 DB9-RJ45 serial cable appearance
Figure 3-20 shows the structure of a DB9-RJ45 serial cable.
