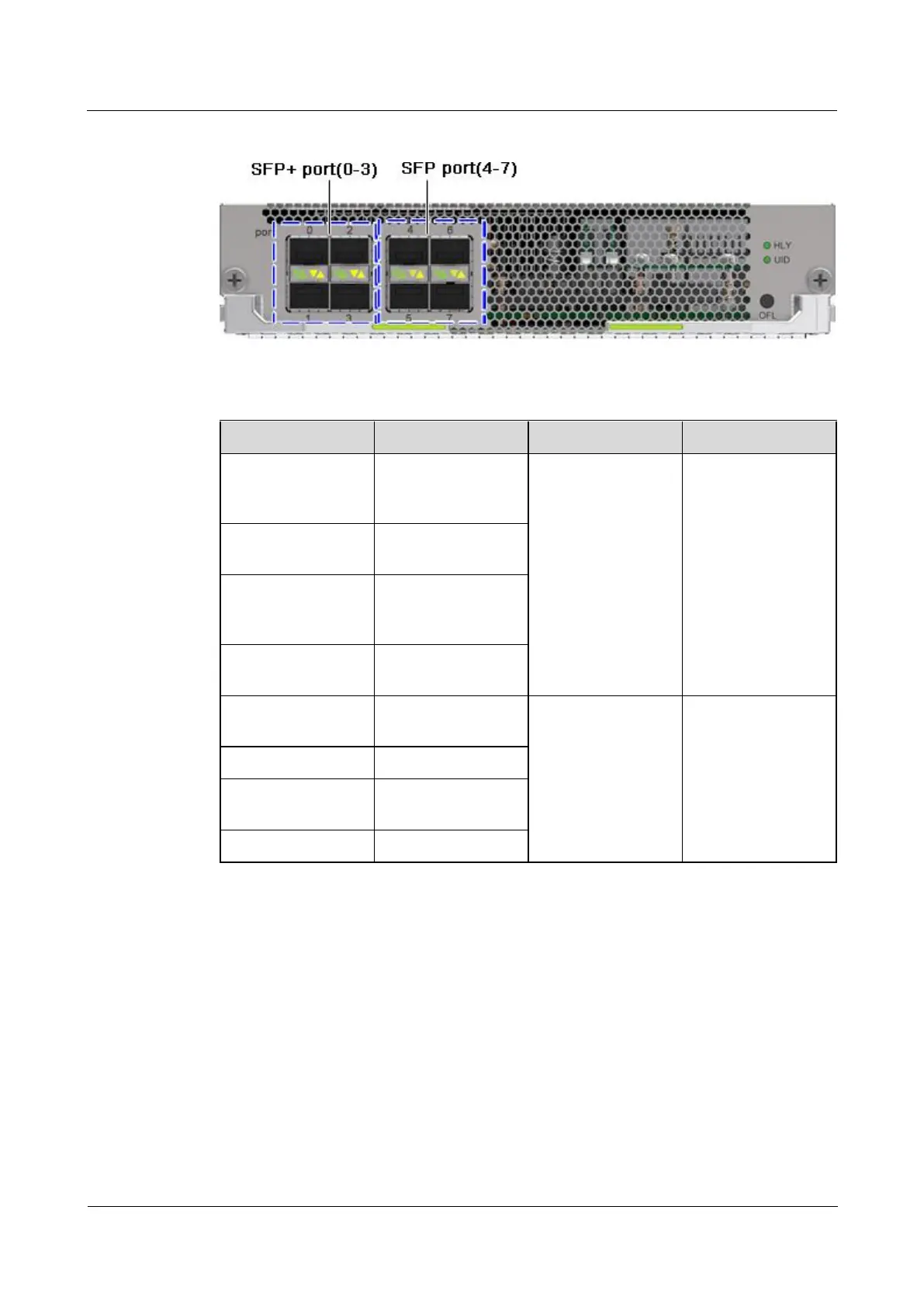

Figure 1-37 Panel ports
Table 1-30 Port description
Silkscreen
Meaning
Type
Standard
port 0
10GE or 1GE
optical port or
electrical port
SFP+
NOTE
The ports can be set
to the
auto-negotiation or
forced mode.
10G BASE-R
port 1
10GE or 1GE
optical port
port 2
10GE or 1GE
optical port or
electrical port
port 3
10GE or 1GE
optical port
port 4
1GE optical port or
electrical port
SFP
NOTE
The ports can be set
to the
auto-negotiation or
forced mode.
1000 BASE-T
port 5
1GE optical port
port 6
1GE optical port or
electrical port
port 7
1GE optical port
Indicators
Figure 1-38 shows the indicators and buttons on the board. Table 1-31 describes the indicators
and buttons.
