7.10 Installing AC Output Power Cables for the Isolation
Transformer
Procedure
Step 1 Secure one end of the AC output power cables to the neutral wire and live wire screws in the
isolation transformer.
Step 2 Secure the other end of the AC output power cables to the corresponding AC output circuit
breaker.

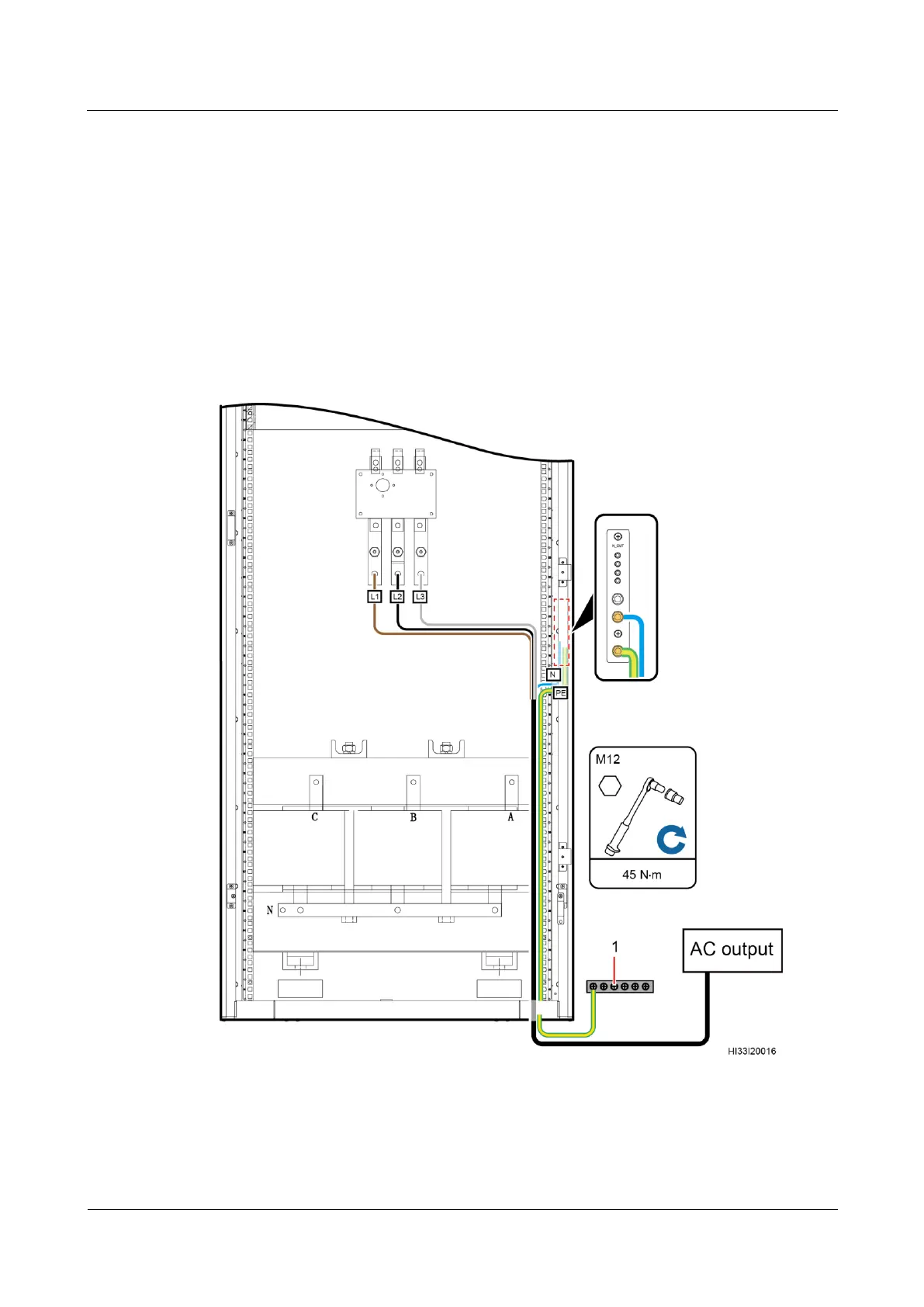

Figure 7-24 Installing AC output power cables for the isolation transformer
(1) Site ground bar
