Huawei SUN2000-17KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
2 Overview
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
11

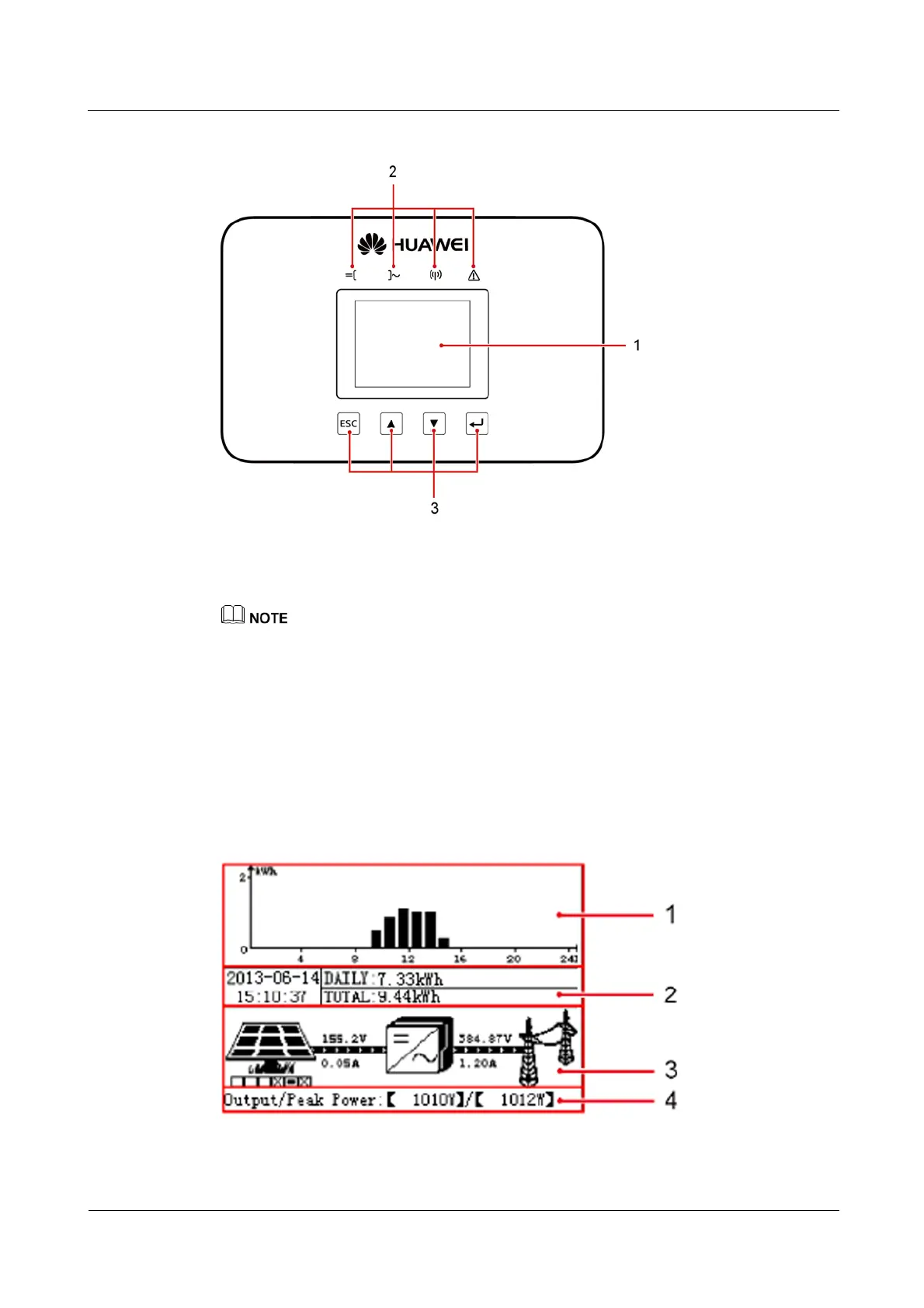

Figure 2-8 Monitoring panel
(1) LCD
(2) Indicators
(3) Buttons
The LCD displays SUN2000 operating data such as input power, output power, energy yield, and alarms.
The indicators show the SUN2000 operating status.
LCD
The LCD displays the SUN2000 data in graphics and text, including the operating
information, alarm information, system parameters, and user parameters.
If no button is pressed within 90s on a non-default screen, the LCD automatically displays the
default screen, which is shown in Figure 2-9.
Figure 2-9 Default page

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
