Huawei SUN2000-17KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
25

Multiple SUN2000s must be installed in a line if sufficient space is available. Otherwise,
they must be installed in checkerboard mode as shown in Figure 4-3. The stacked
installation mode shown in Figure 4-4 is not recommended. The clearance between
SUN2000s must meet requirements shown in the following figures.

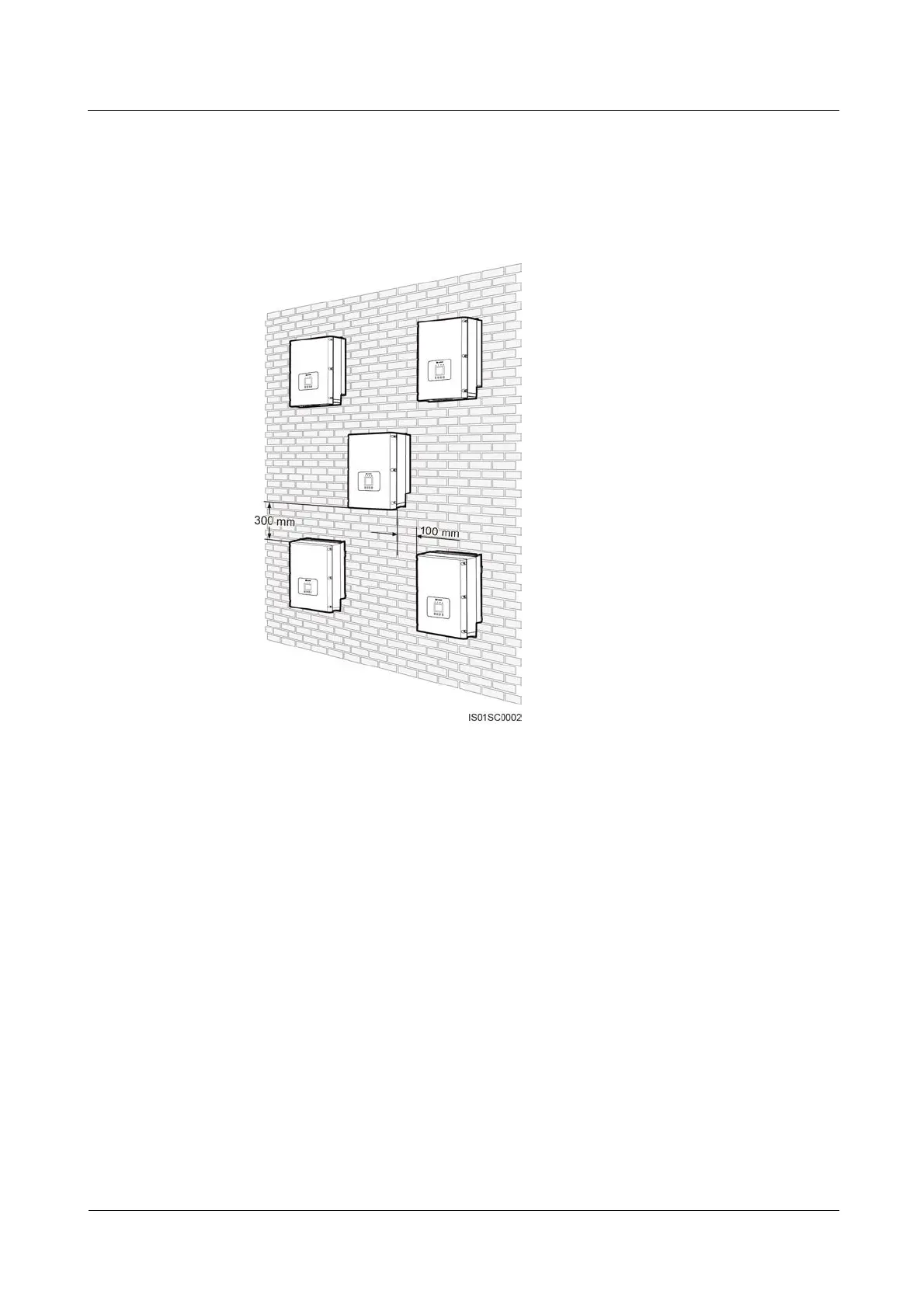

Figure 4-3 Checkerboard installation mode (recommended)

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
