SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Copyright © Huawei Technologies Co., Ltd.
37
Step 9 Mount the SUN2000, keeping the mounting brackets in alignment with the rear panel, as
shown in Figure 4-23 and Figure 4-24.

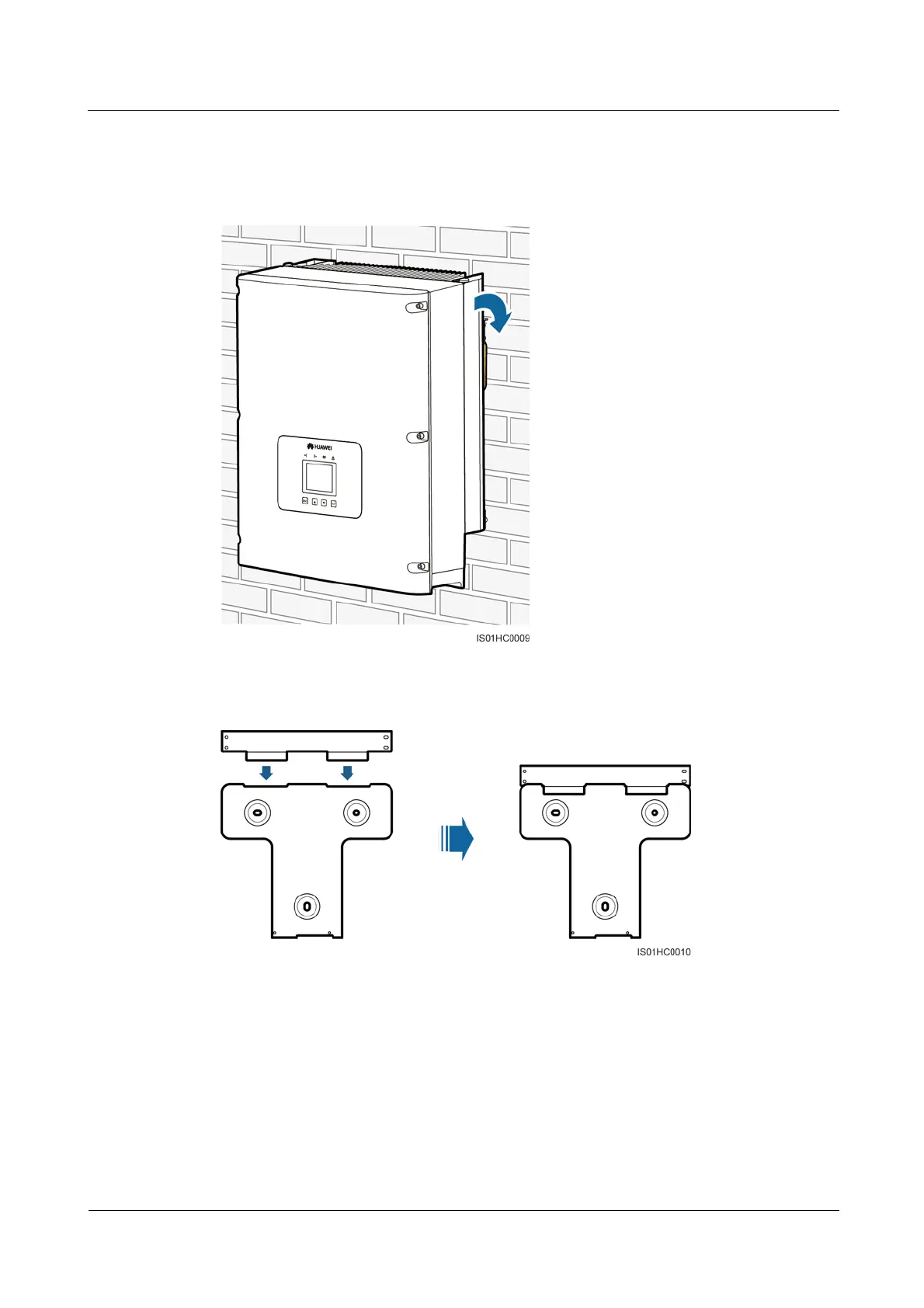

Figure 4-23 Mounting the SUN2000 on the rear panel (front view)
Figure 4-24 Mounting the SUN2000 on the rear panel (rear view)
Step 10 Tighten the two hexagon screws at the bottom of the SUN2000 to a torque of 5 N·m, as
shown in Figure 4-25.

Other manuals for Huawei SUN2000-17KTL

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-17KTL and is the answer not in the manual?

Huawei SUN2000-17KTL Specifications

General IconGeneral
Max. efficiency98.6%
European efficiency98.3%
Max. DC voltage1100 V
MPPT voltage range200 V - 1000 V
Max. input current per MPPT26 A
Number of MPPTs2
AC nominal power17000 W
Operating temperature range-25°C to +60°C
CoolingNatural Convection
Protection ratingIP65
Max. AC power18700 VA
Rated AC voltage220 V / 380 V, 230 V / 400 V
