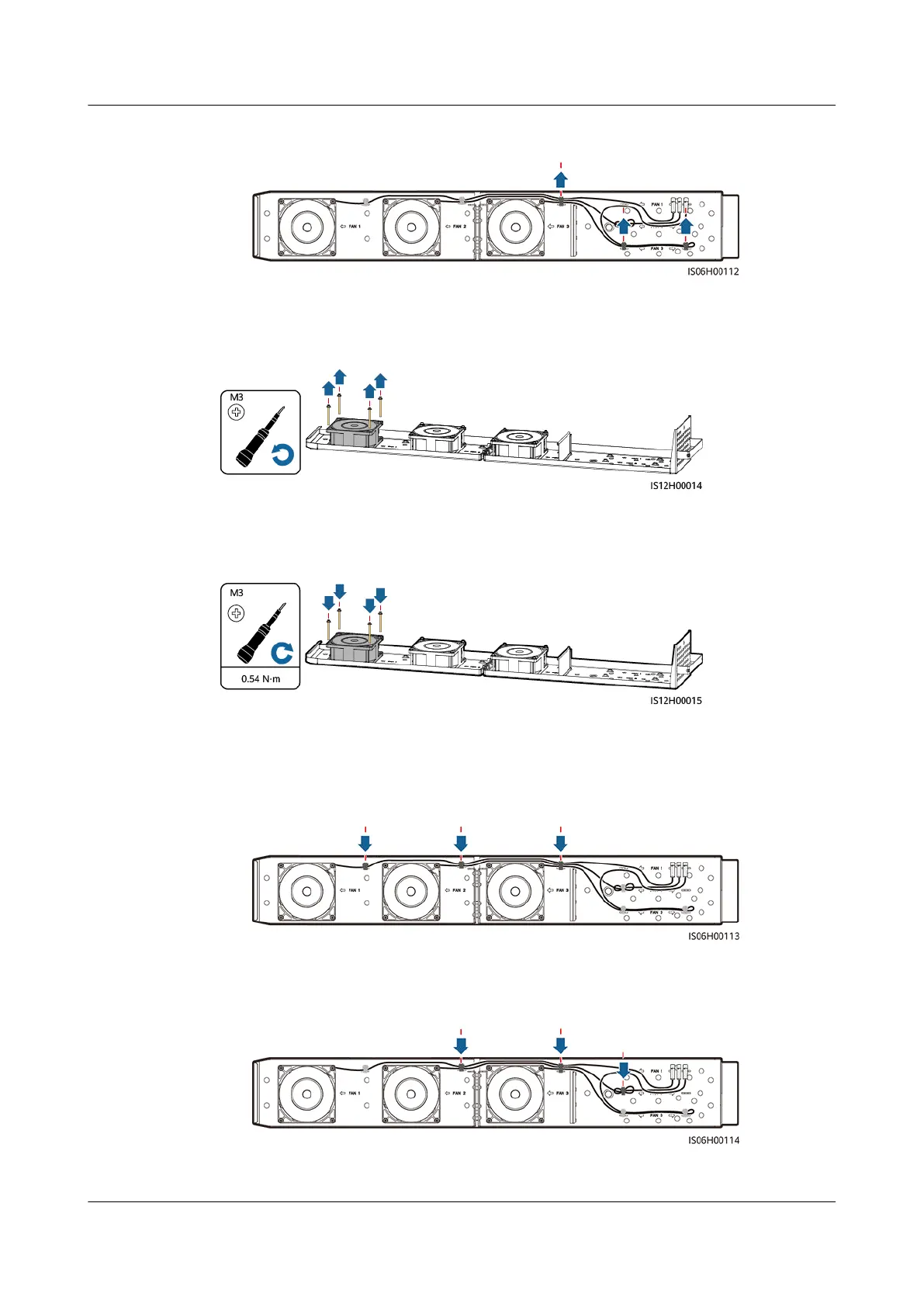

Figure 8-8 Removing the FAN 3 cable ties
Step 5 Remove the faulty fan (FAN 1 is used as an example).
Figure 8-9 Removing the fan
Step 6 Install the new fan (FAN 1 is used as an example).
Figure 8-10 Installing a new fan
Step 7 Bind the fan cables.
● Binding positions for fan 1
Figure 8-11 Binding the FAN 1 cables
● Binding positions for fan 2
Figure 8-12 Binding the FAN 2 cables
● Binding positions for fan 3
