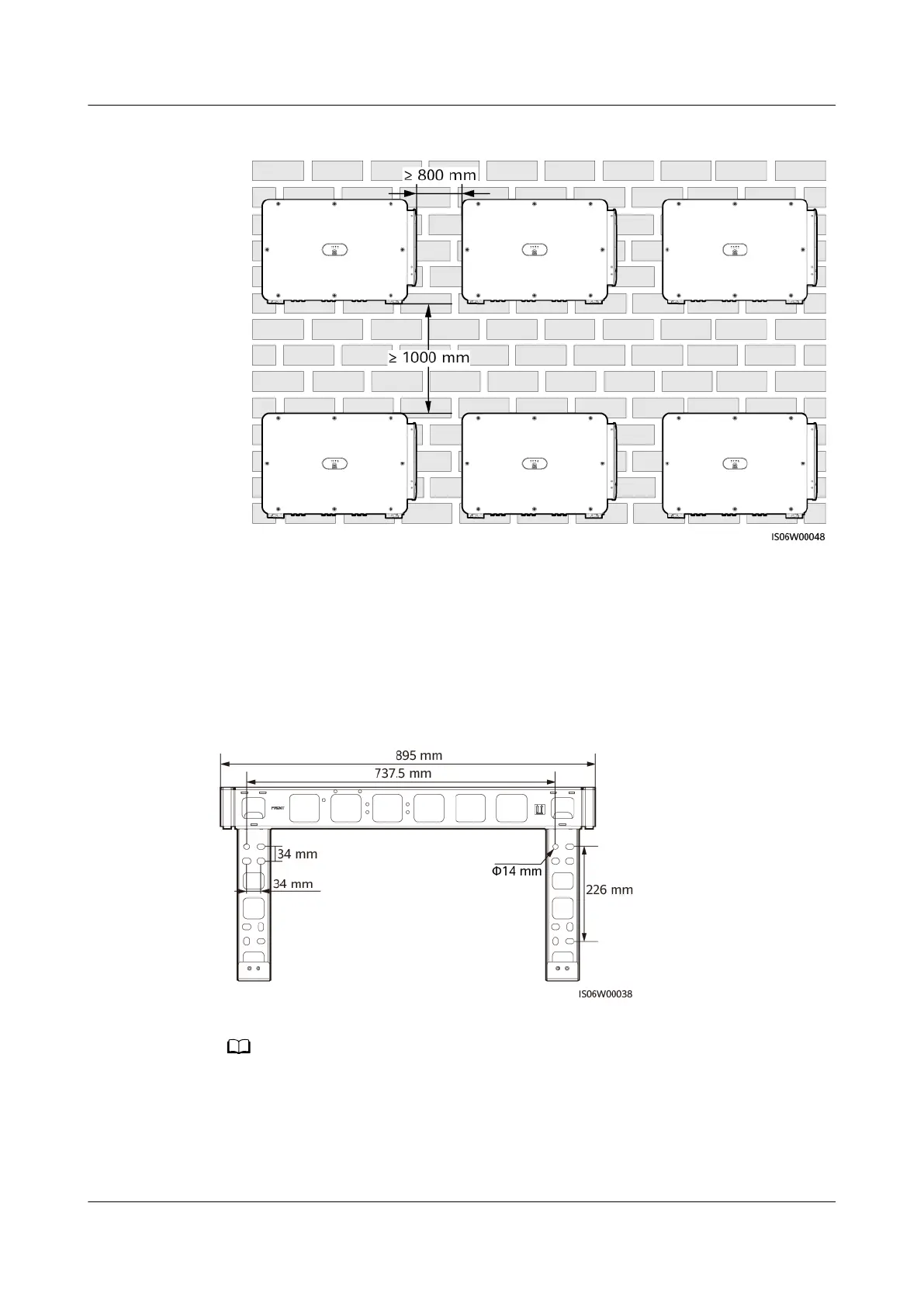

Figure 4-6 Stacked installation mode (not recommended)
4.4 Installing the Mounting Bracket
Installation Precautions
Figure 4-7 shows the inverter mounting bracket dimensions.
Figure 4-7 Mounting bracket dimensions
The inverter mounting bracket has four groups of tapped holes, each group containing four
tapped holes. Mark any hole in each group based on site requirements and mark four holes
in total. The two round holes are recommended.
Before installing the mounting bracket, remove the security torx wrench from the
mounting bracket and set it aside.
SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
User Manual 4 Installation
Issue 19 (2023-12-20) Copyright © Huawei Technologies Co., Ltd. 34
