● When installing multiple inverters, install them in horizontal mode if sucient
space is available and install them in triangle mode if no sucient space is
available. Stacked installation is not recommended.

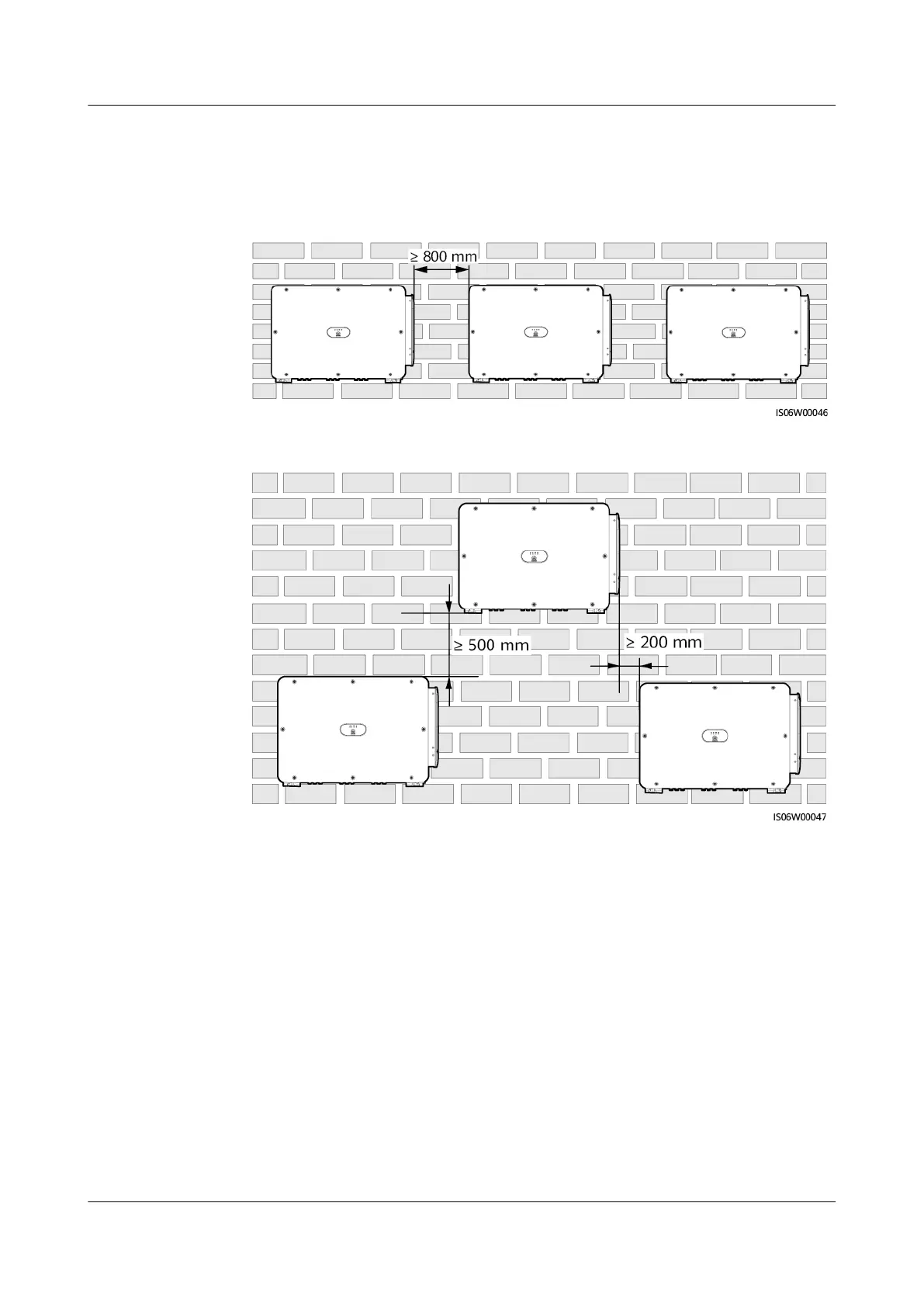

Figure 4-4 Horizontal installation mode (recommended)
Figure 4-5
Triangle installation mode (recommended)
SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
User Manual 4 Installation
Issue 19 (2023-12-20) Copyright © Huawei Technologies Co., Ltd. 33
