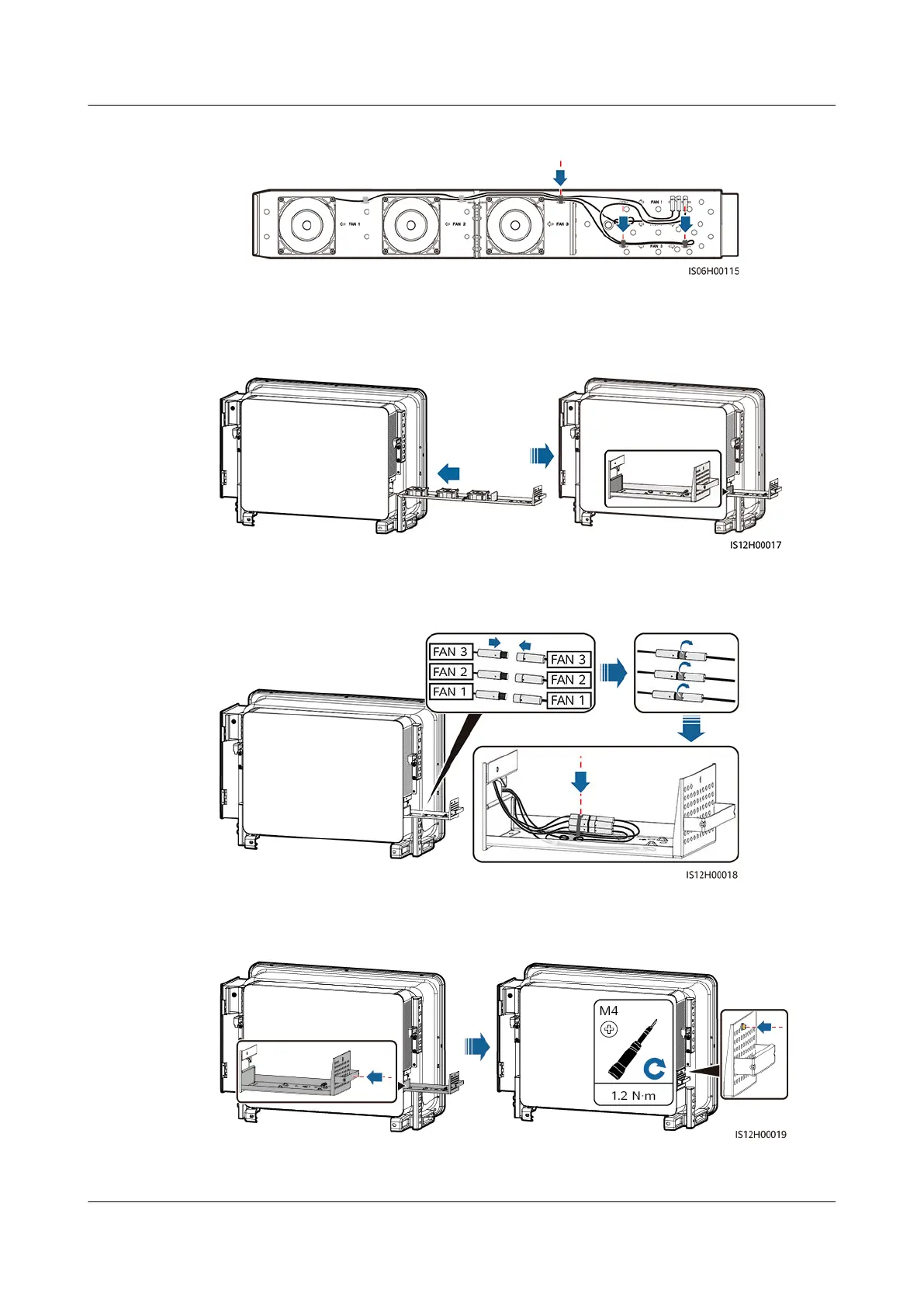

Figure 8-13 Binding the FAN 3 cables
Step 8 Push the fan tray into the slot until the fan bae plate aligns with the inverter
chassis.
Figure 8-14 Pushing the fan tray in
Step 9 Connect the cables correctly according to the cable labels and bind the cables.
Figure 8-15 Reconnecting and binding the cables
Step 10 Push the fan tray into the slot and tighten the screw.
Figure 8-16 Reinstalling the fan tray
----End
SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
User Manual 8 Maintenance
Issue 19 (2023-12-20) Copyright © Huawei Technologies Co., Ltd. 98
