Bottom View
NO TE
● The DC switch of the current model can be manual or automatic.
● The screw hole for DC switch is provided only for the models used in Australia.

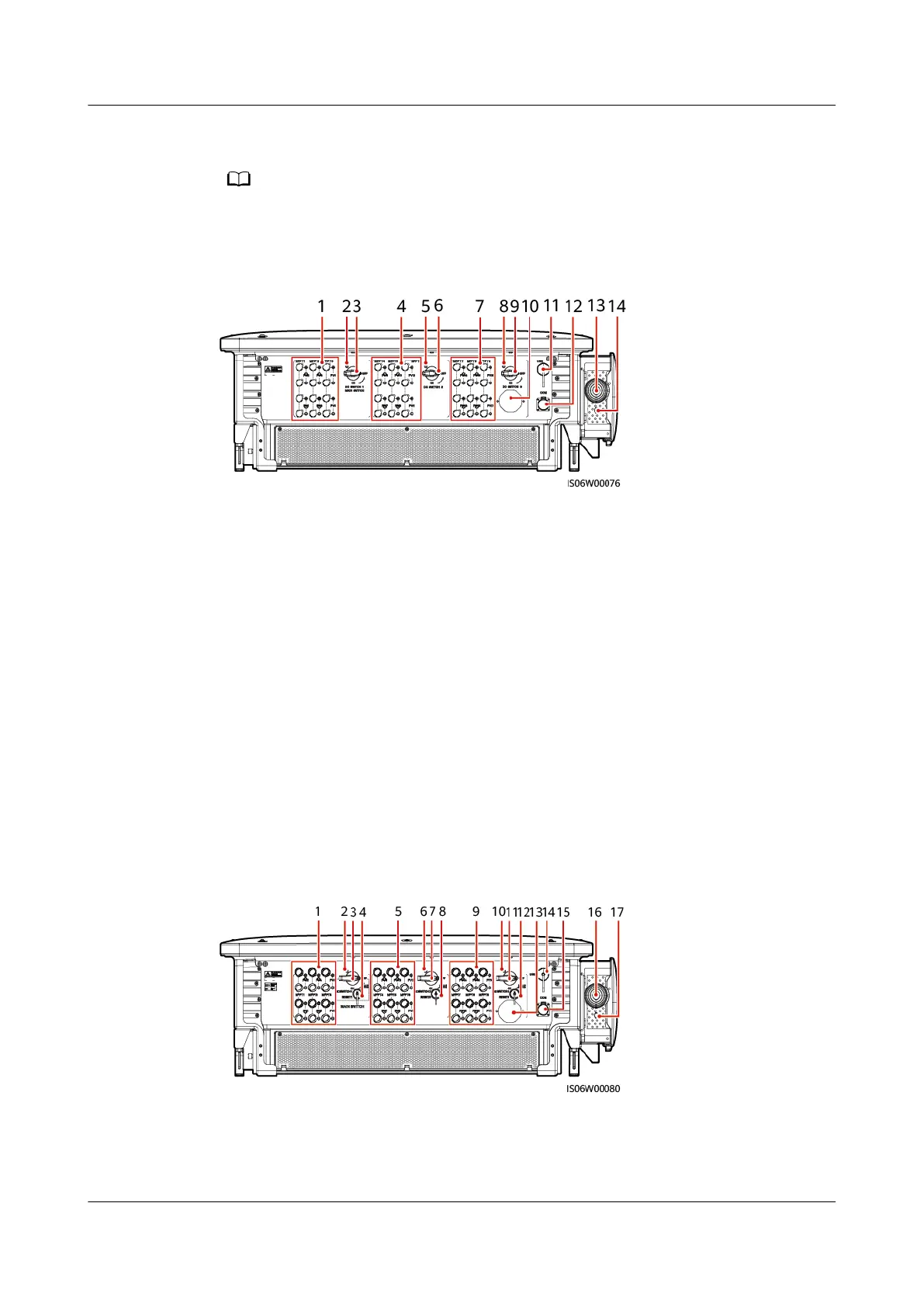

Figure 2-4 Port Illustration (Manual DC Switch)
(1) DC input terminals (controlled by
DC SWITCH 1)
(2) Screw hole for DC switch 1
(3) DC switch 1 (DC SWITCH 1) (4) DC input terminals (controlled by
DC SWITCH 2)
(5) Screw hole for DC switch 2 (6) DC switch 2 (DC SWITCH 2)
(7) DC input terminals (controlled by
DC SWITCH 3)
(8) Screw hole for DC switch 3
(9) DC switch 3 (DC SWITCH 3) (10) Ventilation valve
(11) USB port (USB) (12) Communications port (COM)
(13) Hole for the AC output power
cable
(14) Hole for the tracking system
power cable
Figure 2-5 Port Illustration (Automatic DC Switch)
(1) DC input terminals (controlled by DC
SWITCH 1)
(2) Screw hole for DC switch 1
SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
User Manual 2 Overview
Issue 19 (2023-12-20) Copyright © Huawei Technologies Co., Ltd. 18
