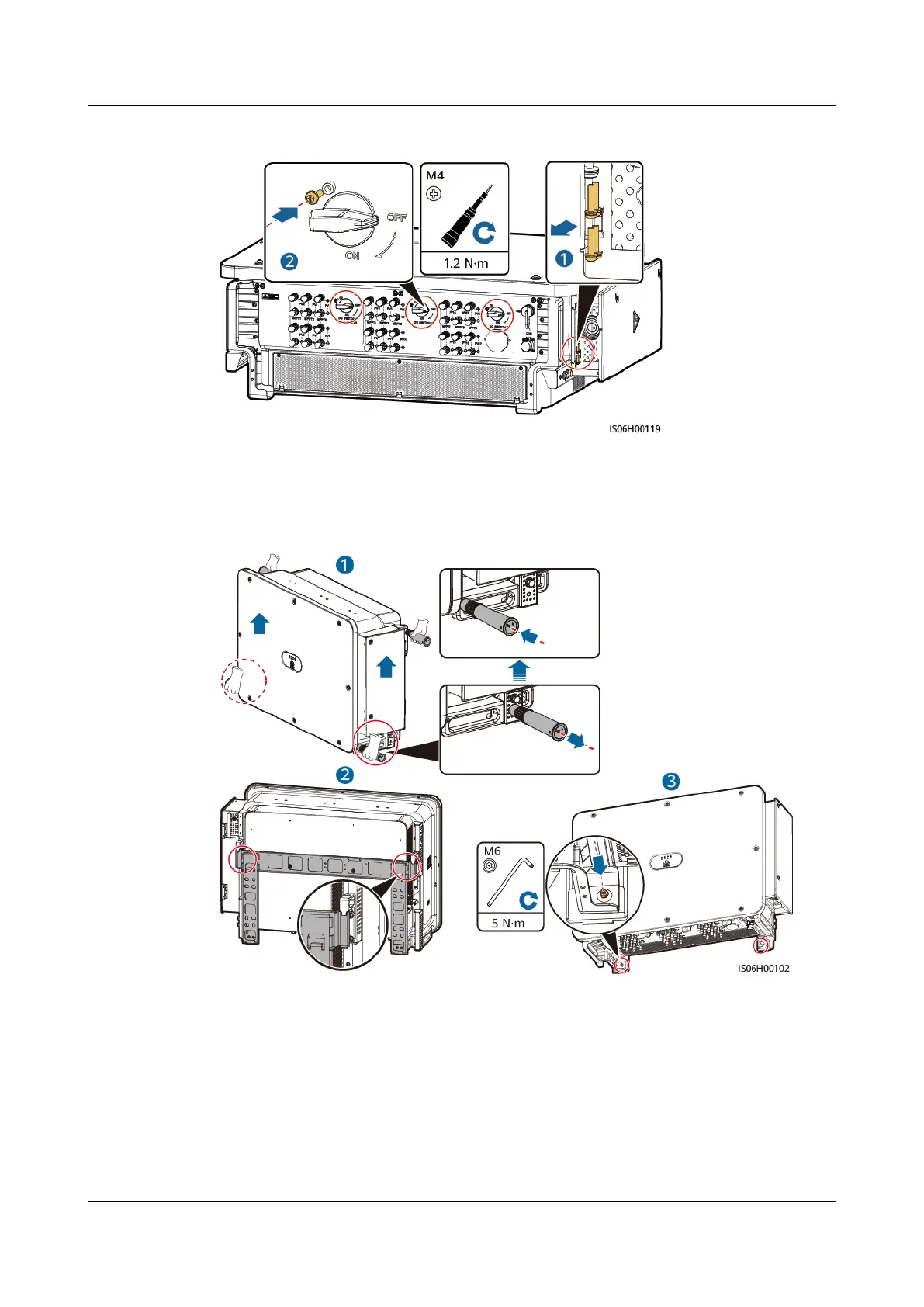

Figure 4-13 Install screws for locking DC switches
Step 2 Mount the inverter on the mounting bracket.
Step 3 Tighten the two screws at the bottom of the inverter.
Figure 4-14 Installation
----End
Supplementary Notes
If the inverter is installed in a high position, you can hoist it.
SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
User Manual 4 Installation
Issue 19 (2023-12-20) Copyright © Huawei Technologies Co., Ltd. 38
