2.4 Monitoring Panel
This topic describes the appearance of the monitoring panel, including an LCD, indicators,
and buttons.
Monitoring panel
The monitoring panel provides one LCD, four indicators, and four buttons, as shown in Figure
2-6.

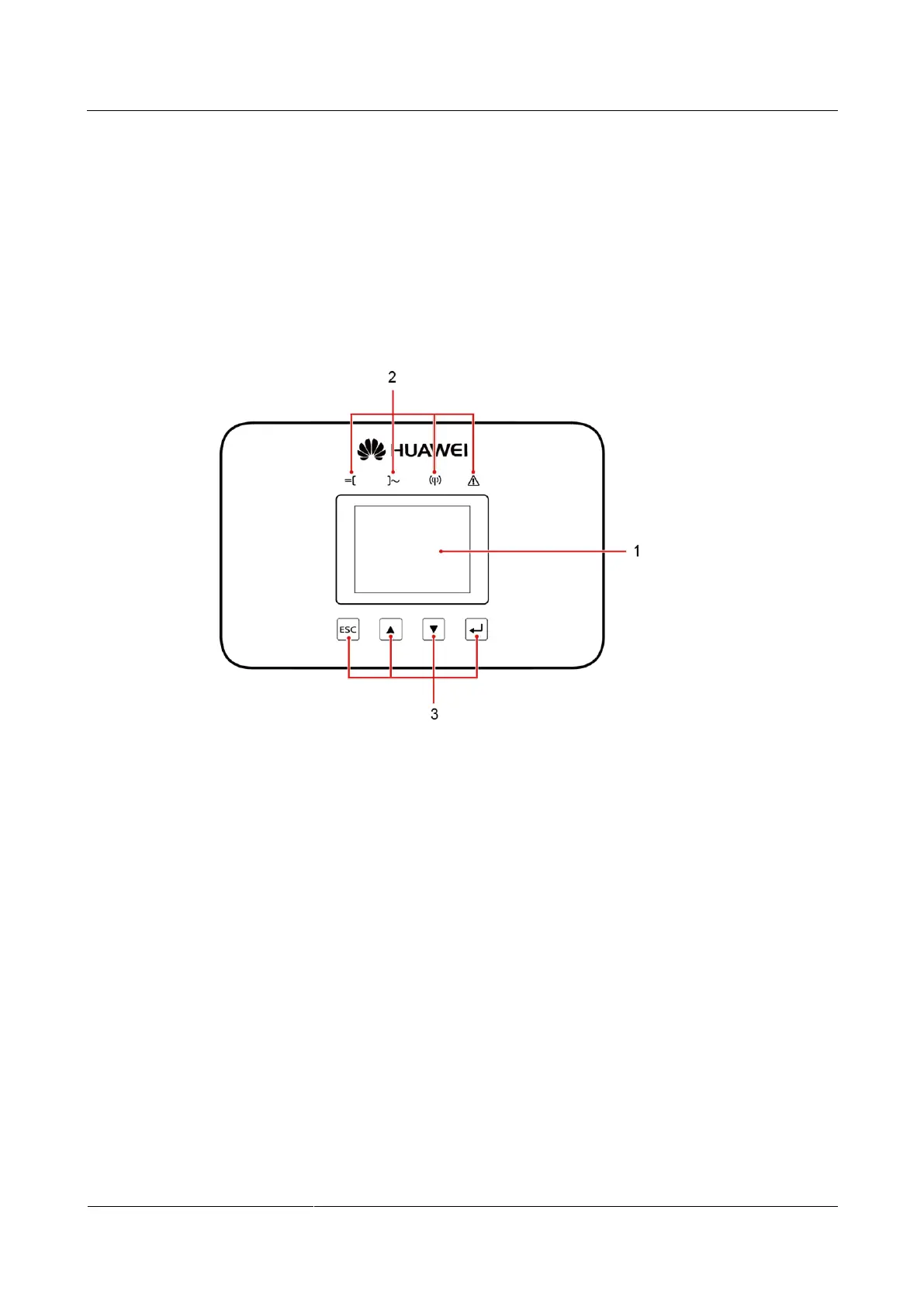

Figure 2-6 Monitoring panel
LCD
The LCD displays the SUN2000 data in graphics and characters, including the operating
information, alarm information, system parameters, and user parameters.
If you do not press any button within 90s, the liquid crystal display (LCD) returns to the
default page automatically, as shown in Figure 2-7.
