Huawei SUN2000-23KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 07 (2014-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
No.
Name
Quantity
Description
Positive and negative metal terminals are packed with
positive and negative connectors respectively. Separate the
positive from negative metal terminals after unpacking the
SUN2000 to avoid confusing the polarities.
8
Documentation
1
Includes the quick installation guide in paper copies
and user manual in a CD-ROM.

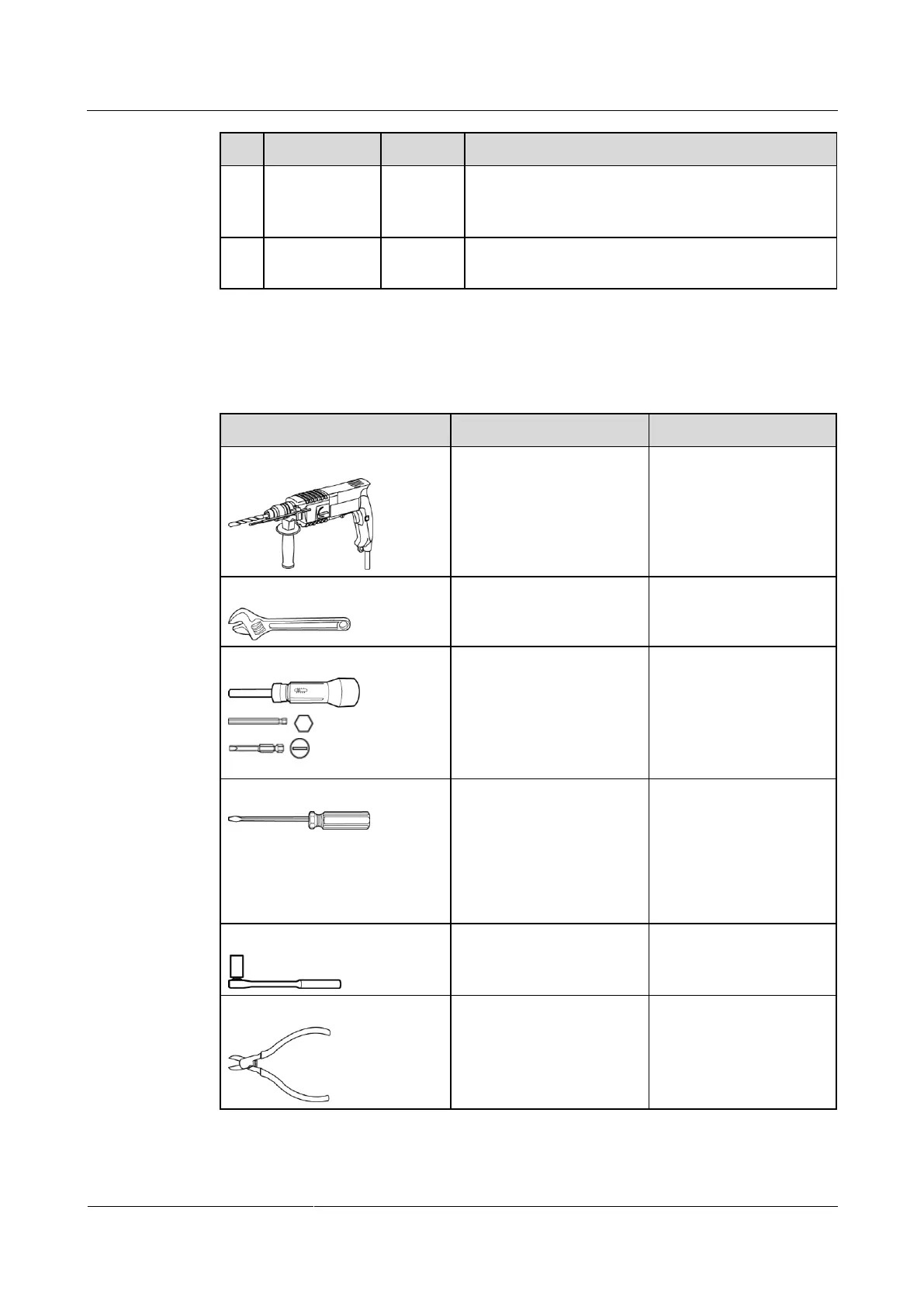

4.2 Tools
Prepare tools required for installation and electrical connections.
Tool
Model
Function
Hammer drill
With a drill bit of Φ14
Drills holes on the wall
Adjustable wrench
With an open end of larger
than or equal to 32 mm
Tightens expansion bolts
Torque screwdriver

Hexagon socket head: 5
mm

Flat head: M6

Hexagon socket head:
Secures screws to
mechanical parts

Flat head: Removes
plastic screws from
lifting holes
Flat-head screwdriver
3x100

Head width: 3-3.5 mm

Pole length (excluding
the handle): at least 100
mm

Large handle

Tightens or loosens
screws when installing
AC power cables

Used to remove AC
connectors from the
SUN2000
Socket wrench
With an open end of 10
mm
Tightens ground bolts.
Diagonal pliers
-
Cut and tighten cable ties.
