Checking Deliverables
After unpacking the SUN2000, check whether deliverables are intact and complete. If any
damage is found or any component is missing, contact the dealer.

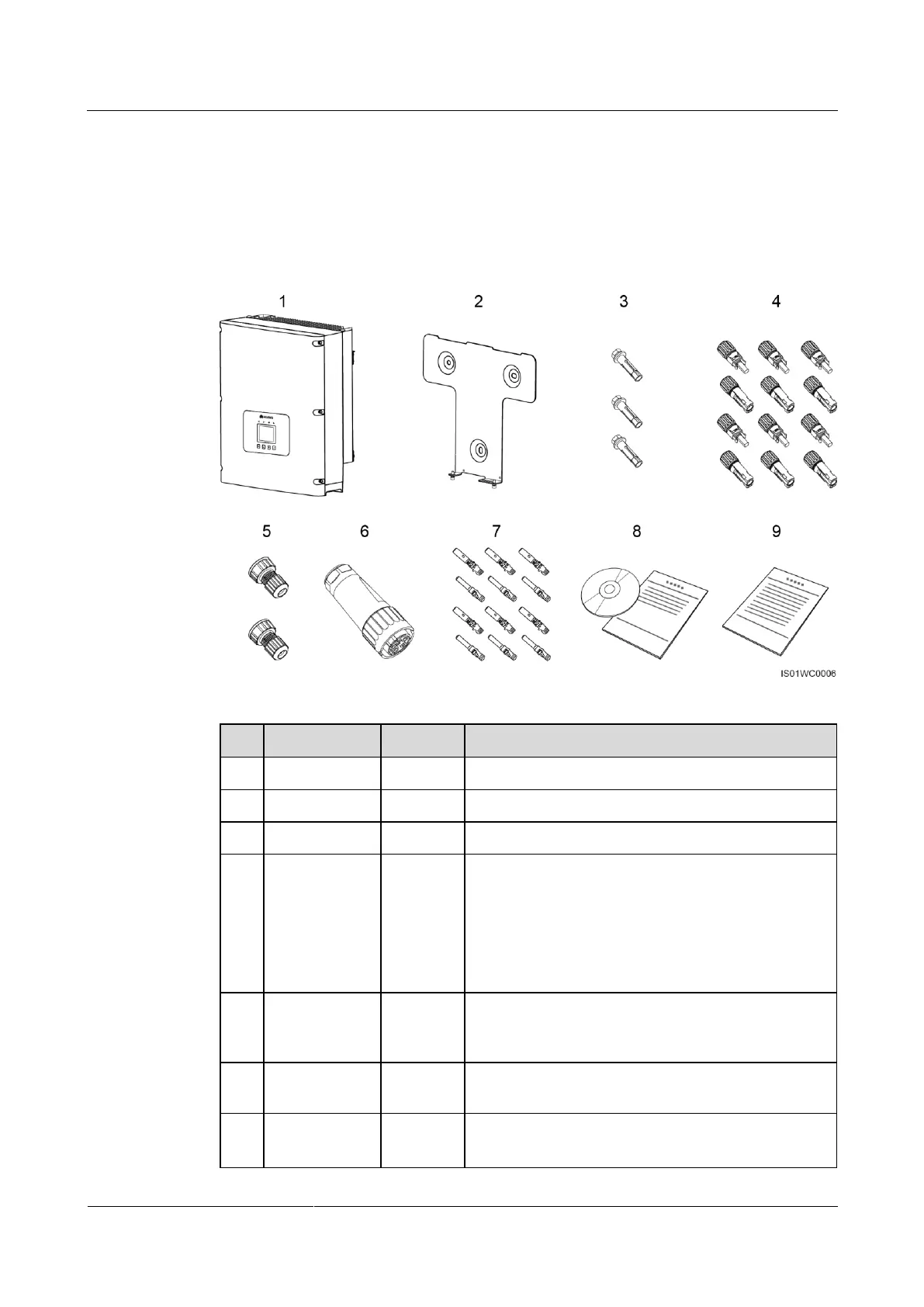

Figure 4-1 shows the components and mechanical parts that should be delivered.
Figure 4-1 Deliverables
No.
Name
Quantity
Description
1
SUN2000
1
N/A
2
Rear panel
1
N/A
3
Expansion bolt
3
Secures the rear panel to a wall.
4
DC input
connector
8/12
Connects to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 PCS (four
positive connectors and four negative connectors)

SUN2000-15KTL/17KTL/20KTL/23KTL/28KTL:
12 PCS (six positive connectors and six negative
connectors)
5
Waterproof
RJ45
connector
2
Connects to a communications cable.
6
AC output
connector
1
Connects to an AC output power cable.
7
Metal terminal
8/12
Secures a connector to a DC input power cable.
NOTICE

Huawei SUN2000-23KTL Specifications

General

Brand	Huawei
Model	SUN2000-23KTL
Category	Inverter
Language	English
