Huawei SUN2000-23KTL - Page 38

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 07 (2014-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
32

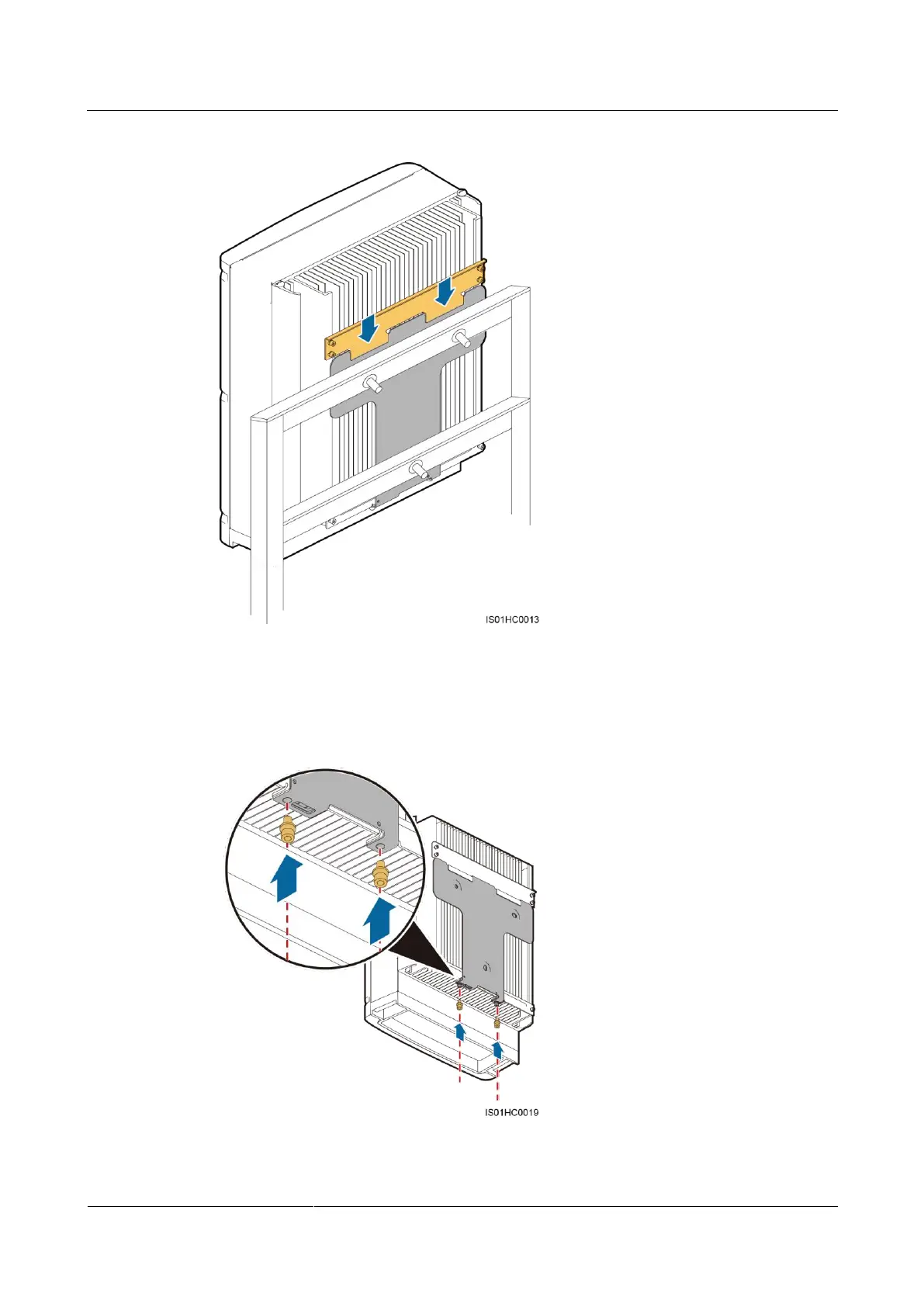

Figure 4-12 Mounting a SUN2000 on a rear panel
Step 6 Tighten the two hexagon screws at the bottom of the SUN2000 to a torque of 5 N.m, as
shown in Figure 4-13.
Figure 4-13 Tightening hexagon screws
