4 Installation
Issue 07 (2014-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
35
Figure 4-16 Determining hole positions

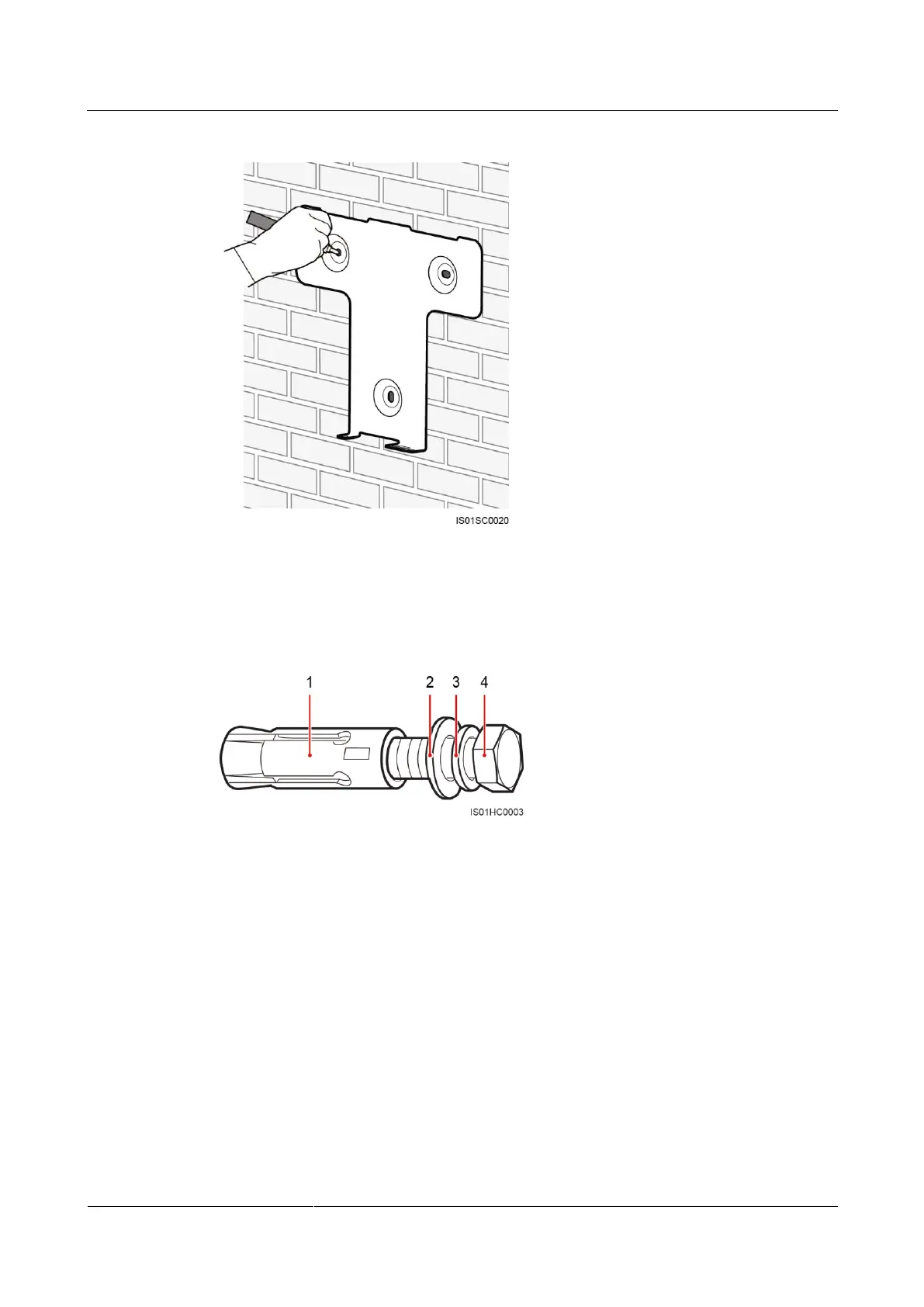

Step 2 Drill holes by using a hammer drill and install expansion bolts, as shown in Figure 4-18.
An expansion bolts contains four parts, as shown in Figure 4-17.
Figure 4-17 Expansion bolt composition
1. Expansion sleeve
2. Flat washer
3. Spring washer
4. M10 x 60 bolt
