The three-phase AC input power cables, neutral cable, and PGND cable must be properly
connected. (No neutral cable connections are involved for the SUN2000-28KTL.)
1. Strip the outer jacket of AC output cable by 55 mm.
2. Strip the insulation layer of each core wires by 12 mm.

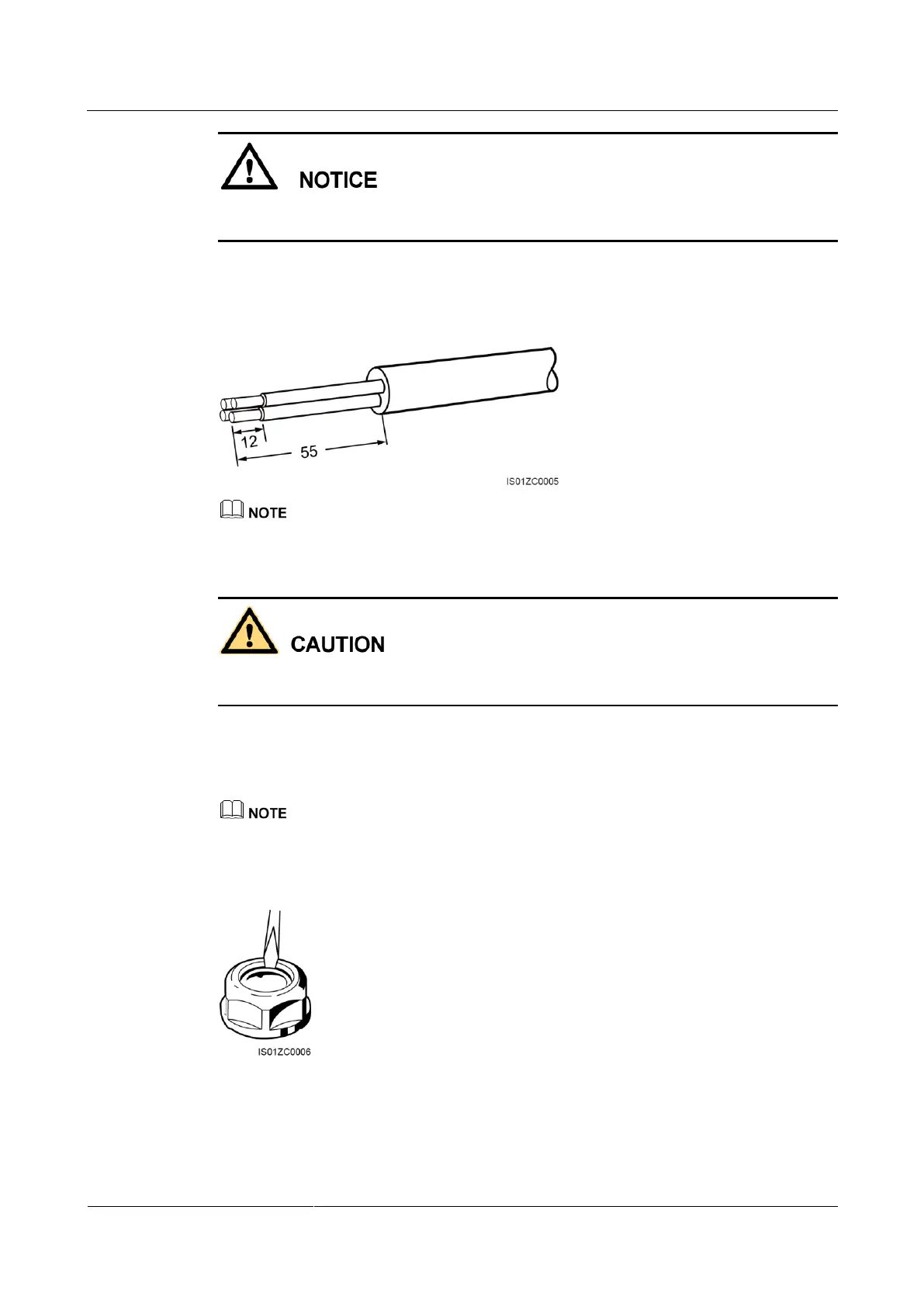

Figure 5-6 Stripped length (unit: mm)
The preceding figure shows only how to strip cables for the SUN2000-8KTL to SUN2000-23KTL. For
the SUN2000-28KTL, align the neutral cable with the protective jacket and cut off the neutral cable.
When cutting off the cable, take protective measures to prevent the cable from splashing and
hurting people.
Step 3 Insert AC output cable (L1, L2, L3 and N) into the cable gland and the adapter, as shown in
Figure 5-7 and Figure 5-8.
When the outer diameter of the cable is greater than 16 mm, remove a seal ring from the cable gland
before inserting the power cable into the cable gland and the adapter.
Figure 5-7 Stripping a seal ring
