SUN2000 (8KTL-28KTL)
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

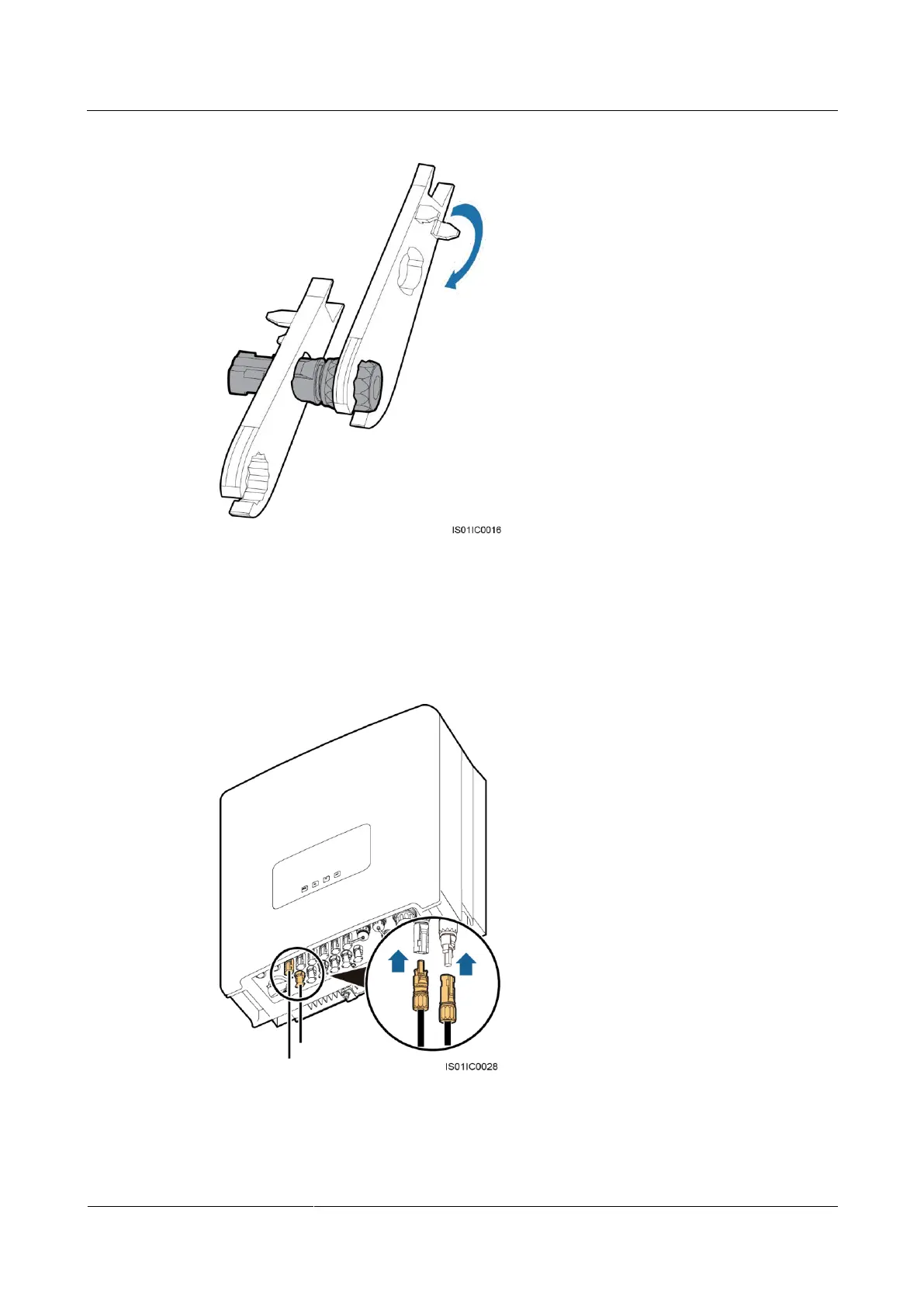

Figure 5-22 Locking a nut
Step 6 Take off the blue dustproof plugs from the bottom of the DC input connectors.
Step 7 Insert the positive and negative connectors into corresponding DC input terminals of the
SUN2000 until you hear a "click" sound, as shown in Figure 5-23.
Figure 5-23 Positive and negative connectors
